Tri Axle 40CBM Dump Trailer will be sent to Namibia.

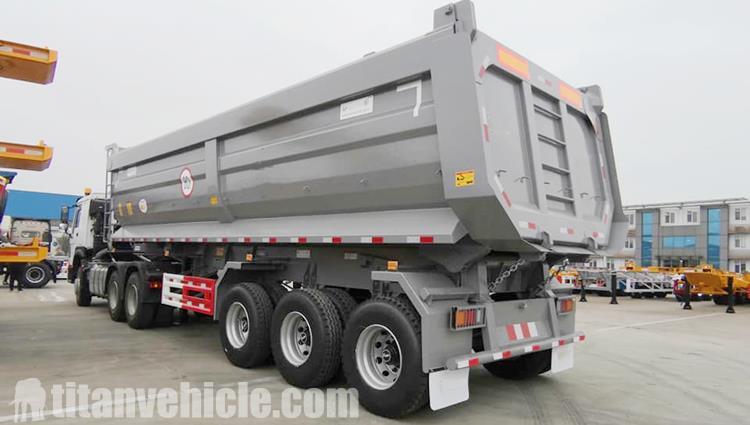

Tri Axle 40CBM Dump Trailer for Sale In Namibia

Namibia customer had previously cooperated with other suppliers because the tipper trailer purchased by the customer was made of ordinary steel. After more than a year of use, the beam has been deformed. So customers find us through a friend's introduction. All of our semi-trailers use high-strength steel, which is more durable and strong in the face of the harsh transportation roads in Africa. The final customer chooses to cooperate with TITAN. Customers are very willing to have long-term cooperation with us.

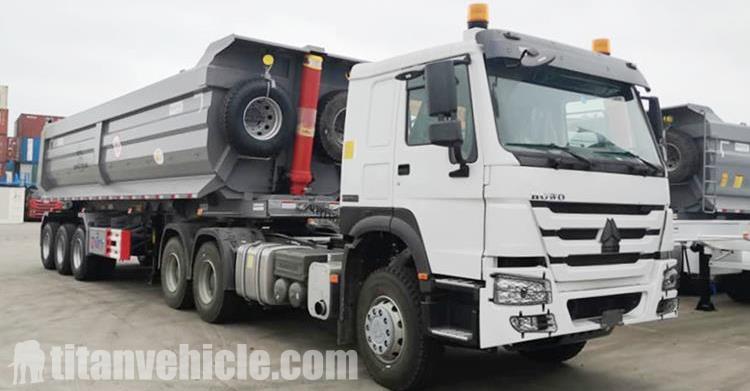

3 Axle Dumper Tractor Trailer for Sale With Best Price

Maintenance after the dumper trailer is put into use

Before the Dumper trailer is put into use, make preparations for inspection according to the "Instructions for Use", and tighten all external bolts and nuts once.

During the first 300 kilometers of the 3 Axle Dumper trailer, its parts and components are in a running state. In this period, the trailer weight should not exceed 80% of the rated load, and it should not be driven on muddy roads. After the new car has traveled 30-50 kilometers for the first time, check whether there is high heat or noise at the wheel hub and suspension bearing. If an abnormality is found, the cause should be found in time and removed.

After 40CBM dumper trailer travels 300-500 kilometers, all bolts and nuts should be tightened once. For the maintenance of the diesel engine and high-pressure oil pump, please refer to the instructions of the accessory parts.

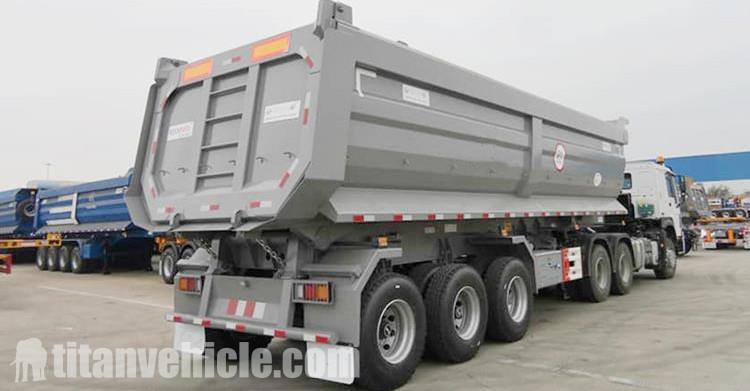

40 Ton Tipper Dump Truck Trailer for Sale Manufacturer

Why does the gear pump have the phenomenon of "beating teeth"

Sometimes when the power take-off takes off the power, the gear pump makes a rapid sound, which is mostly caused by the insufficient oil intake of the oil pump. This phenomenon occurs in the new dumper trailer, which may be caused by the oil pump inlet pipe being too thin or the oil inlet pipe being deflated.

The oil inlet pipe should be thickened, and the oil inlet pipe with high strength and hardness (with steel wire in the oil pipe) should be adopted; the tri axle has been used for a period of time. 40 CBM dump trailer may be that the oil inlet pipe is aging and collapsed, or the filter screen of the oil outlet of the oil storage tank is blocked, resulting in poor oil inlet. If all possibilities have been ruled out, then only the oil pump is damaged, and the oil pump should be replaced in time.

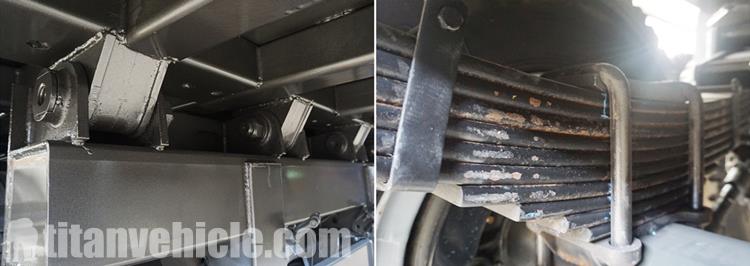

Details of 40CBM Dumper Trailer for Sale

If the dump trailer for sale does not lift, check the following components.

Check the power take-off: the first check whether the drive shaft connected to the oil pump rotates. If it does not, it means that there is a problem with u shape dump trailer part of the power take-off (the solenoid valve of the power take-off or the power take-off itself has problems); if it rotates, it means the power take-off There is no problem with the device, so further investigation should be performed.

Check the oil pump: whether the rotation direction of the oil pump is correct. Extend your left hand, with your thumb facing the oil pump spline, and the rotation direction of the other fingers is the same, it is a left-handed pump, otherwise, it is a right-handed pump. Whether the oil pump is damaged. The wear of the oil pump will cause the high and low-pressure chambers of the oil pump to communicate and fail to pump oil.

Check the distribution valve: whether there is gas in the air pipe on the distribution valve. Press the lifting and lowering switches, and check whether the two air pipes on the distribution valve have air. If there is no gas, it means that the solenoid valve that controls the lifting and lowering is faulty, and the solenoid valve should be replaced. Whether the distribution valve is damaged.

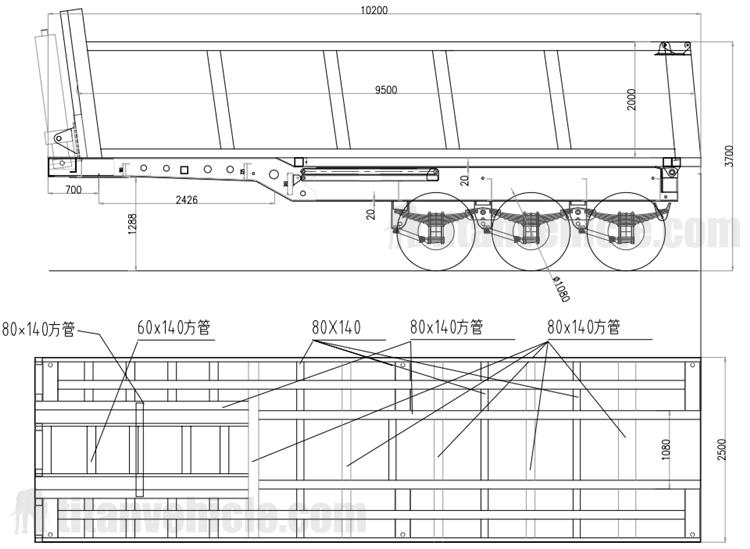

Drawing of U shape Dump Trailer

You can download video, you can learn about different types of semi tipper trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.

Tipper Trailers Video

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
