Trailer Tri Axle with Boards for Sale In Gabon

The trailer tri axle with boards that this customer from Gabon bought from TITAN a few years ago is still in normal use, but the customer felt that those trailers were relatively broken, so they decided to buy a few more new ones.

The customer was not sure whether the sales he had talked about in the past few years were still working in the company, so he sent an email directly to our company mailbox. This time the customer asked for blue paint, and the picture was sent to the customer as soon as the paint was finished.

The customer was also very satisfied. After receiving the final payment from the customer, the company immediately arranged the delivery for the customer, hoping that the customer would be satisfied after receiving the tri axle with boards.

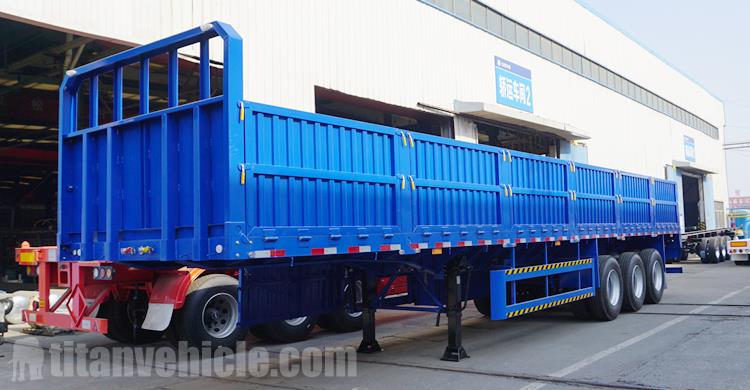

Trailer Tri Axle with Boards for Sale In Gabon

Working platform of trailer tri axle with boards

The work platform is the main load-bearing part, which is composed of the main beam, wide beam, cross beam, bottom floor, suspension and so on.

The main beam should pay attention to whether the thickness is an international standard. The international standard for the main beam of aSide Panel Cargo Semi Trailer is 14/8/16 mm. The steel plate in the middle of the beam is made of Q345B manganese steel, the thickness is 8mm.

Bottom Floor, many Platform semi trailer are also used to transport bulk cargo and other items. The bottom plate of the TITAN trailer tri axle with boards passes the international standard 3mm thick checkered plate.

Side door. The common height of the side door is 600mm, 800mm, 1000mm. The side door adopts a vertical corrugated structure. The door frame is a 40x60mm rectangular steel tube.

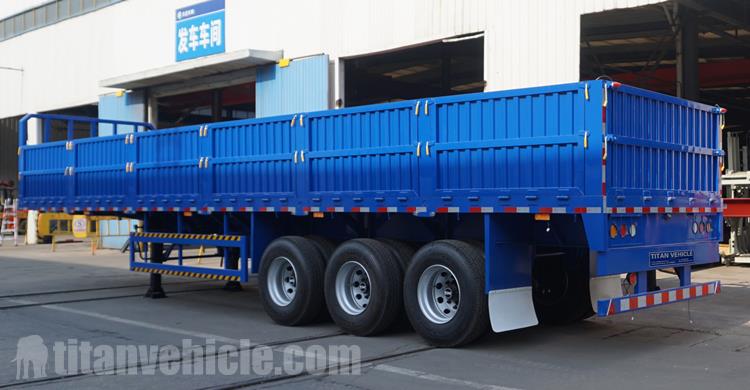

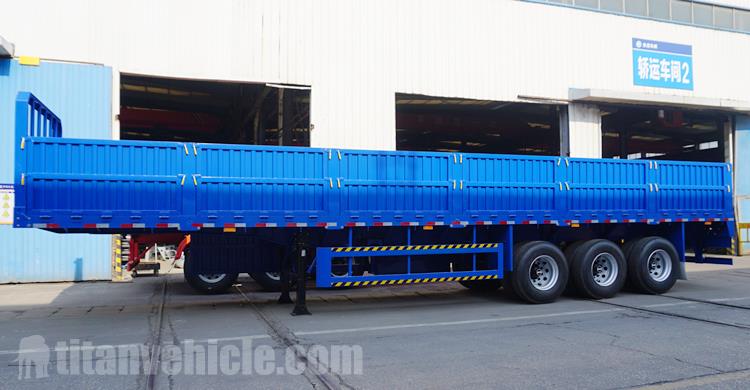

Trailer Tri Axle with Boards for Sale In Gabon

TITAN drop side trailer has a longer service life than others:

1. Modular design, intelligent manufacturing

TITAN tailgate trailer tri axle with boards adopts advanced intelligent manufacturing equipment such as finite element analysis, modular design, laser cutting machine, robot welding, etc. from the design source to the product processing and manufacturing, the entire process is strictly required to ensure that every side wall trailer delivered to the customer. They are all high-quality and qualified products.

2. Pay more attention to safety and energy saving

Imported brake pads and implanted wear alarm device. Effectively guarantee the braking performance of the trailer tri axle with boards during operation. Brake discs containing alloy elements, anti-cracking, anti-wear and high-temperature resistance. Super long warranty of 200,000 kilometers, maintenance-free, brake life up to 10 years and 1.5 million kilometers. High-precision load-bearing, long life and low temperature.

The guide arm can choose a double leaf spring and a single leaf spring. The optimized single-leaf guide arm structure, lightweight design, three bridges reduce the weight of more than 200 kg and have good guidance and super reliability and stability.

The guide arm bushing is made of inner and outer steel, and the middle vulcanized rubber design structure has stronger load resistance and a more stable trailer tri axle with boards. Reduce tire wear and fuel consumption. Under the same road conditions and load capacity, fuel consumption per 100 kilometers can be reduced by more than 1.2 liters.

The bracket adopts a high-strength material upper-end closed design structure, which can meet the direct connection of the lower wing plate of a side wall semi trailer for container or cargo. The trailer tri axle with boards suspension adopts an internationally renowned brand, which has a long life and is more reliable in durability.

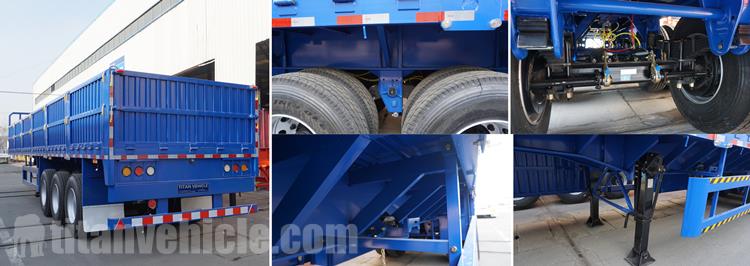

Trailer Tri Axle with Boards for Sale In Gabon

You can learn about different types of side wall semi trailers(like 3 axle sidewall trailers, 4 axles high side trailer, grain hopper trailer, aluminum alloy side board trailer, 2 axle side wall semi trailer with bogie suspension, dropside drawbar trailer).

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
