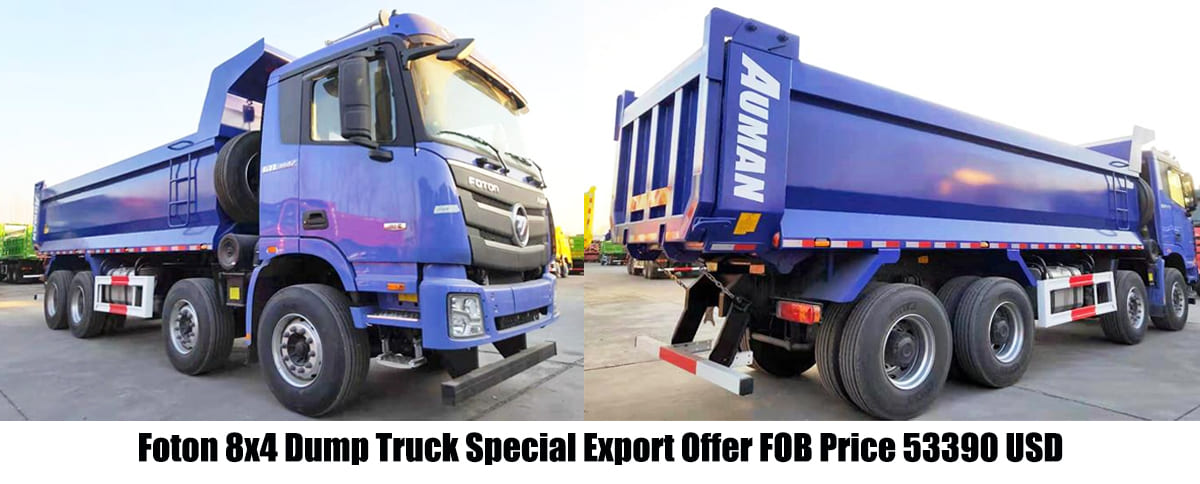

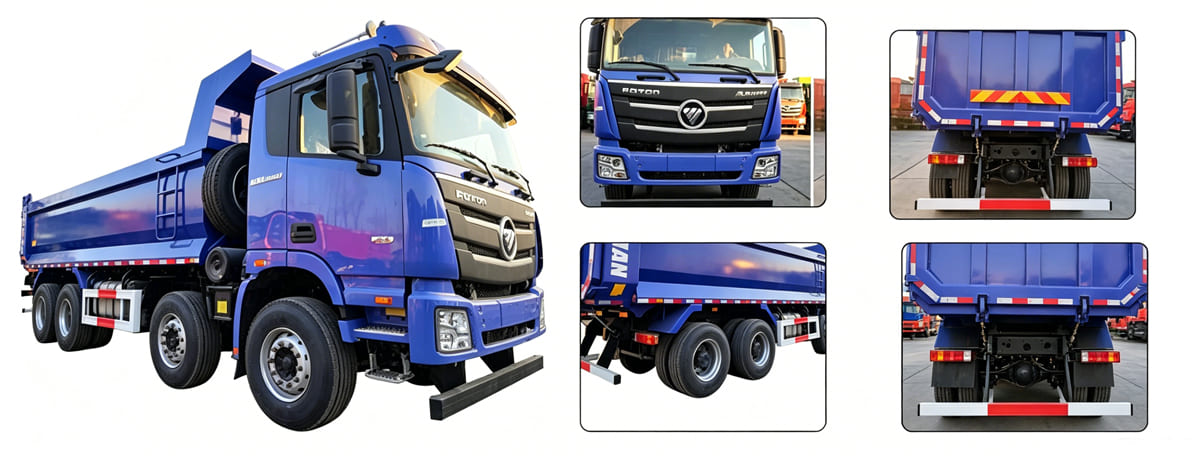

One Unit Only! Foton 8x4 Dump Truck Special Export Offer FOB Price 53390 USD
One Unit Only! Foton 8x4 Dump Truck Special Export Offer FOB Price 53390 USD
| Foton 8x4 Dump TruckFOB: 53,390 USD | |||
|---|---|---|---|
| Shipping Note: Actual ocean freight costs vary depending on the destination country and shipping route. | |||
| Volume: 94 CBM | Delivery Time: 3-5 days (In Stock) | |||
| Specification | Details | Specification | Details |
| Model | BJ3319DMAKC‑AD, GTL Series | Drive Style | 8×4 |
| Steering Wheel Position | Left‑hand Drive (LHD) | Wheelbase (mm) | 1800+3950+1350 |
| Complete Vehicle Dimensions (mm) | 97 | Maximum Climbing Capacity (Full Load) | 27% |
| Cabin | H4‑2490, 2‑seater | Engine Model | ISGe3‑400 |
| Fuel Type: | Diesel fuel | Displacement(L) | 11.8L |
| Max Power | 400 | Max Torque(Nm/rpm) | 2100/1000～1400 |
| Engine Brand | Cummins | Emission | EURO III |
| Clutch Type | Diaphragm spring | Gearbox Model | 12JSDX240(Q) |
| Plate Diameter | φ430 | Service brake | Dual Circuit Air Brake |
| Auxiliary brake | Engine brake | Front suspension | Non‑independent suspension, shock absorber, stabilizer bar, leaf spring/13+14 |
Currently, only one new Foton 8×4 dump truck remains in stock, and it's being offered at a limited time promotion. Once sold out, factory ordering will resume. This Foton dump truck features an 8×4 drive structure and left hand drive, specifically designed for mining transportation, construction engineering, earthmoving, and heavy-duty applications, boasting powerful performance and excellent load-bearing capacity.
The Foton 8×4 dump truck is equipped with a Cummins ISGe3-400 engine, a large 11.8L displacement design, delivering a maximum output of 400 horsepower and a maximum torque of 2100 N·m. It provides continuous strong power output within the 1000-1400 rpm range, maintaining stable and efficient performance even when fully loaded and climbing hills. The Foton dump truck meets EURO III emission standards, balancing power performance and fuel economy, making it particularly suitable for long term, high intensity transportation conditions.
The Foton 8×4 dump truck's transmission system uses a 12JSDX240(Q) gearbox paired with a φ430 diaphragm spring clutch, ensuring smooth shifting and stable and reliable power transmission. The Foton dump truck boasts a top speed of 97 km/h and a 27% climbing ability when fully loaded, easily handling complex transportation environments such as mining areas, mountain roads, and muddy terrain.
Regarding the chassis, the Foton 8x4 dump truck features a long wheelbase design of 1800+3950+1350mm, with overall dimensions of 10418×2490×3600mm and a chassis weight of approximately 17,000kg, resulting in a robust and stable structure. The front suspension of the Foton 8x4 dump truck utilizes a non-independent suspension structure, equipped with shock absorbers, a stabilizer bar, and 13+14 leaf springs, significantly enhancing the Foton dump truck's load-bearing capacity and impact resistance, maintaining stable operation even in harsh road conditions.
The Foton 8x4 dump truck's braking system employs a dual-circuit air brake design and is equipped with an engine brake assist system, further improving safety performance when descending slopes under heavy loads. The cab features an H4-2490 double-seat luxury design, offering spaciousness and enhanced driving comfort, making it suitable for long-haul engineering transport operations.
Only one of these brand new Foton dump trucks remains in stock, and export shipment can be arranged quickly. Contact TITAN for the latest promotional pricing, detailed specifications, and shipping information.
