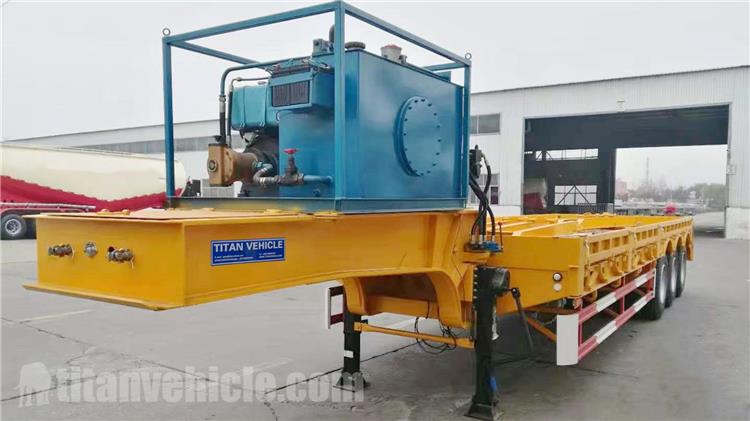

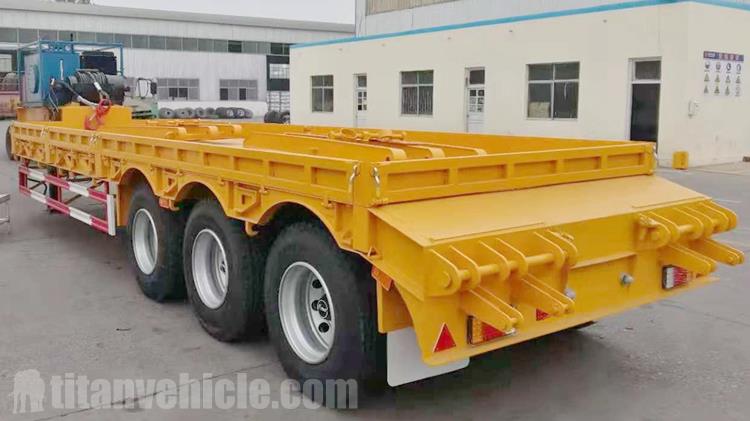

Hydraulic Winch Tri Axle Low Bed Trailer will be sent to Sierra Leone

Hydraulic Winch Tri Axle Low Bed Trailer for Sale In Sierra LeoneHydraulic Winch Tri Axle Low Bed Trailer for Sale In Sierra Leone

Every Hydraulic winches low bed trailers delivery is something that we are happy about. TITAN has an unwritten rule: "The test can't be qualified, and no shipment will be made." Mainly inspect the quality of semi-trailers, test load-bearing, operation, etc. If there is any non-compliance, we will not ship.

We have professional inspectors to check it. This also protects the interests of customers. So we will be stricter about the production of semi-trailers. This is our detection video. High-quality product quality, good reputation in the industry, and perfect after-sales service are important reasons why TITAN VEHICLE is going further and further in the semi trailer industry.

Our Sierra Leone customer's Hydraulic winches low bed trailers were completed. Ready to send to Sierra Leone. To be honest, this customer has always been our old customer, he has his own business in Sierra Leone, in addition to being a local distributor. He has placed orders in our factory more than once. He said that our trailers are very popular locally.

We are professional enough to be trusted by you. And it is also the primary factor we rely on for more and more customers.

Hydraulic Winch Tri Axle Low Bed Trailer for Sale In Sierra LeoneHydraulic Winch Tri Axle Low Bed Trailer for Sale In Sierra Leone

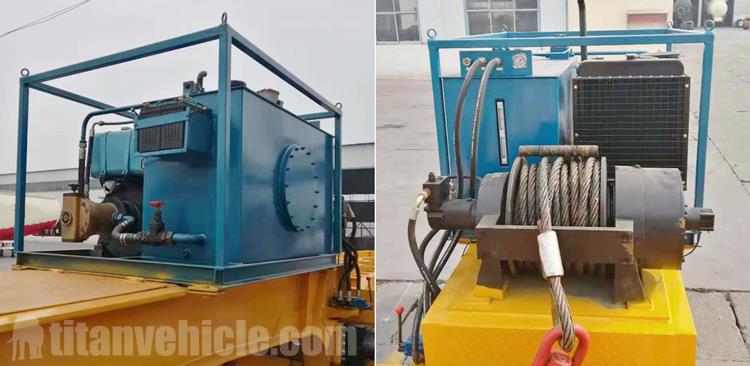

Hydraulic winches have been widely used in tri axle low bed trailers. It is an important functional component and is often used in lifting and towing traction operations. Hydraulic winches have many specifications from light to heavy. Commonly used hydraulic winches include worm gear and planetary. There are two structural types of gear reduction. The winch is driven by a hydraulic motor, and the purpose of reducing speed and increasing the output torque is achieved through the reduction device, so as to realize the relative heavy-duty traction capacity of the winch.

The worm gear type hydraulic winch is relatively simple in structure, easy to manufacture, transmission The efficiency and production cost are relatively low, and it is generally used for medium and light hydraulic winches, while the planetary wheel hydraulic winch has a relatively complex structure, large transmission ratio, and relatively high transmission efficiency and production cost. It is generally used for medium and heavy hydraulic winches.

According to the needs of the design, the wire rope of the winch can adopt the upper and lower direction of the rope. In order to prevent the wire rope from being messed up, the winch should be equipped with a pressure guide device. The selection and installation of the winch and the wire rope in the hydraulic low bed trailer are very important. , which is related to the technical and safety performance of the low bed trailer

Hydraulic Winch Tri Axle Low Bed Trailer for Sale In Sierra LeoneHydraulic Winch Tri Axle Low Bed Trailer for Sale In Sierra Leone

Low Bed Trailer Advantage

1. Characteristic suspension: the unique Huajun new suspension system is adopted, and the whole process is welded by robots, ensuring quality and beautiful welds. In addition, the load of each axle is balanced, and the angle design of the system tie rod is reasonable, which can effectively reduce tire wear. At the same time, the adjustable tie rod can adjust the wheelbase, which can effectively avoid the eccentric tire wear and tire gnawing phenomenon;

2. Material optimization processing: The main longitudinal beam I-beam is made of double-head automatic tracking submerged arc welding.

The double-head welding is symmetrically offset by the heating force, and the thermal deformation is less, which effectively reduces tire wear and fuel consumption. The upper and lower wings of the main longitudinal beam are treated with edge clearing, which is not only beautiful but also avoids the fracture of the beam;

3. Simple structure and convenient operation: no need to modify the main engine to take power, just install the motor to drive the hydraulic device to drive the hydraulic ladder. The hydraulic ladder can still be operated after the main hanger is separated. The motor is easy to operate, and the remote control device can also be modified according to user needs;

4. The width of the ladder can be customized according to the customer's requirements. There are ventilation holes at the upper end of the ladder to reduce wind resistance and achieve the effect of fuel-saving and emission reduction.

Hydraulic Winch Tri Axle Low Bed Trailer for Sale In Sierra LeoneHydraulic Winch Tri Axle Low Bed Trailer for Sale In Sierra Leone

With many standard hydraulic winches low bed trailers configurations, we work closely to define the right semi trailer for your needs. We manufacture innovative, industrial semi trailer, delivering high productivity and remarkable quality all at an affordable price. Focusing on innovation, customization and exceptional service, TITAN VEHICLE has all kinds of semi trailer to suit your any project.

Hydraulic winches low bed trailers are widely used in heavy machine transportation. We produce very durably low bed trailers for sale with high strength to meet the transport needs. Hydraulic winches low bed trailers main beam adopts submerged arc welding technology, that ensure smooth, sturdy welding seams and avoid welding-opening problems. And also improve the loading capacity of the equipment trailer.

Hydraulic Winch Tri Axle Low Bed Trailer for Sale In Sierra LeoneHydraulic Winch Tri Axle Low Bed Trailer for Sale In Sierra Leone

You can download video, you can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.



This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
