Foton 4x2 Dump Truck Fast Shipment Available FOB 23200 USD
Foton 4x2 Dump Truck Fast Shipment Available FOB 23200 USD
| Foton 4x2 Dump TruckFOB: 23,200 USD | |||
|---|---|---|---|
| Shipping Note: Actual ocean freight costs vary depending on the destination country and shipping route. | |||
| Volume: 52 CBM | Delivery Time: 3-5 days (In Stock) | |||
| Specification | Details | Specification | Details |
| Model | BJ1186VLPEN‑F1 | Cabin | Extended Cab, 2‑seater |
| Driving Type | 4 × 2 | Chassis Dimensions (L×W×H) | 7500×2460×2780mm |
| Cabin Type | Extended Cab | Wheelbase (mm) | 4500 |
| Wheel Track (Front/Rear) mm | 1931 / 1840 | Chassis Weight (kg) | 7000 |
| Gross Vehicle Weight (kg) | 18000 | Max. Speed (km/h) | 100 |
| Engine Model | ISF3.8s4R168 | Fuel Form | Diesel |
| Emission Standard | Euro IV | Displacement (L) | 3.76 |
| Rated Power [kW/HP] | 125 (170) | Max. Torque / Speed [N·m (r/min)] | 600 |
| Gearbox Model | DC6J75TT | Clutch Type | φ380 × φ200 |
| Front Axle Type | 4.2 T | Rear Axle Type / Main Reduction Ratio | 9.0 T |
| Front Suspension / Leaf Spring Number | Non-independent longitudinal leaf spring / 10 | Rear Suspension / Leaf Spring Number | Non-independent longitudinal leaf spring / 10+8 |
| Steering Gear Type | Recirculating Ball Type, φ100 | Tyre Specification | Radial tyre with inner tube (10.00R20) |
| Cargo Body Configuration | 4800 × 2300 × 600 mm; Thickness: Bottom 5 mm / Side 3 mm; Front tipping mechanism | ||

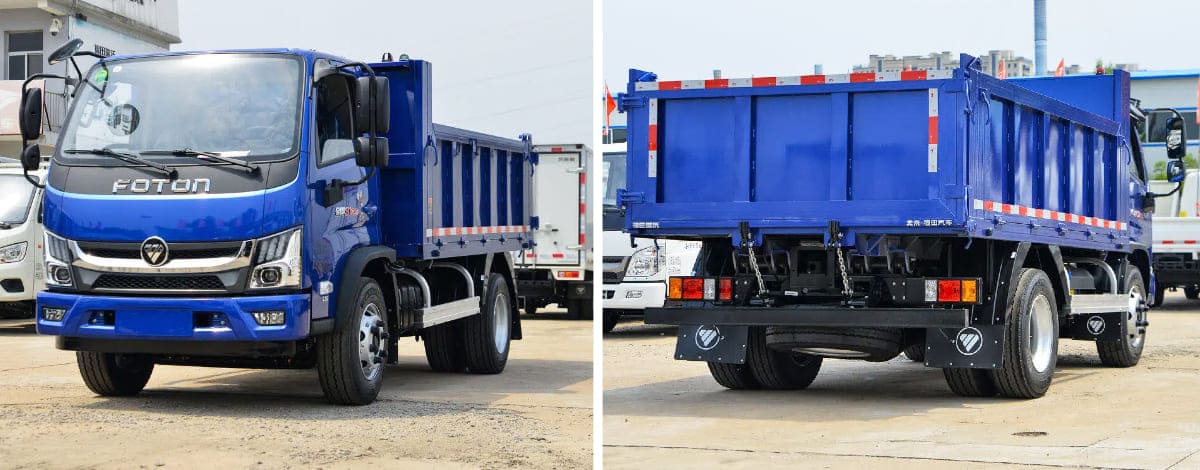

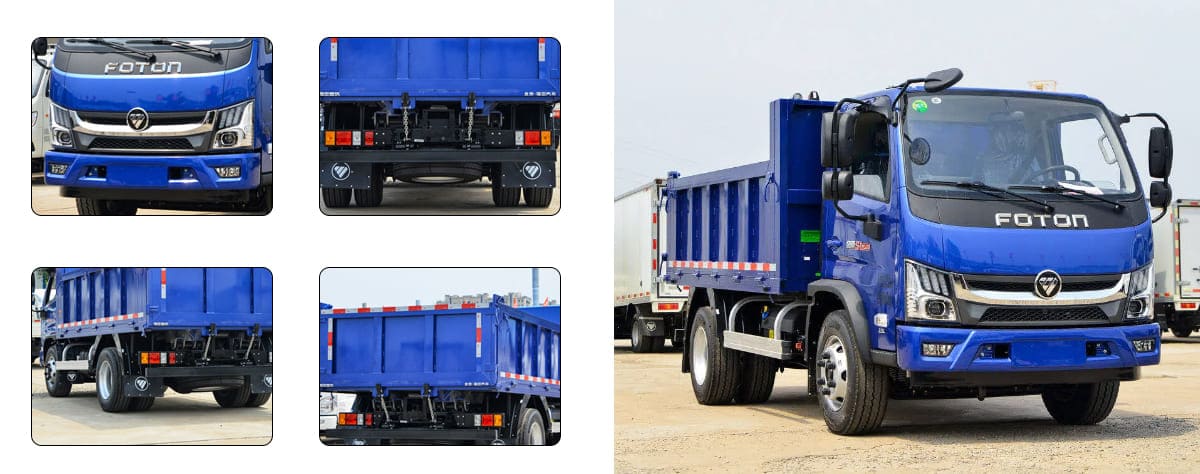

Currently, only one Foton 4x2 truck remains in stock, and it's currently on a limited time promotion. Once sold out, it will revert to factory order mode. This Foton dump truck uses the BJ1186VLPEN-F1 chassis and features an extended double seat cab. It's suitable for construction sites, sand and gravel transportation, municipal engineering, and short distance heavy duty logistics transportation.
The Foton 4x2 truck is equipped with a Foton Cummins ISF3.8s4R168 engine, a 3.76L displacement design, with a maximum output of 170 horsepower and a peak torque of 600 N·m. The power output is stable and reliable, maintaining strong performance even under heavy load starts and climbing conditions.
Foton dump truck's transmission system uses a DC6J75TT gearbox, paired with a φ380×φ200 clutch, ensuring smooth shifting and high power transmission efficiency. The Foton 4x2 truck boasts a top speed of 100 km/h, meeting diverse transportation needs in both urban and suburban areas.
Equipped with a front lift dump structure, the Foton dump truck offers high unloading efficiency and is suitable for transporting sand, gravel, earthwork, and building materials. The front axle has a load capacity of 4.2 tons, and the rear axle has a load capacity of 9 tons. Combined with a 10+8 leaf spring suspension system, it significantly enhances the vehicle's load bearing capacity and impact resistance.
The Foton dump truck's braking system and chassis structure have been optimized to ensure excellent stability and safety even under heavy loads and complex road conditions.
Currently, only one Foton 4x2 truck remains in stock, and export shipment can be arranged quickly. Contact TITAN for the latest promotional pricing and detailed configuration information.
