60 Ton Fence Cargo Semi Trailer will be sent to Namibia Luderitz.

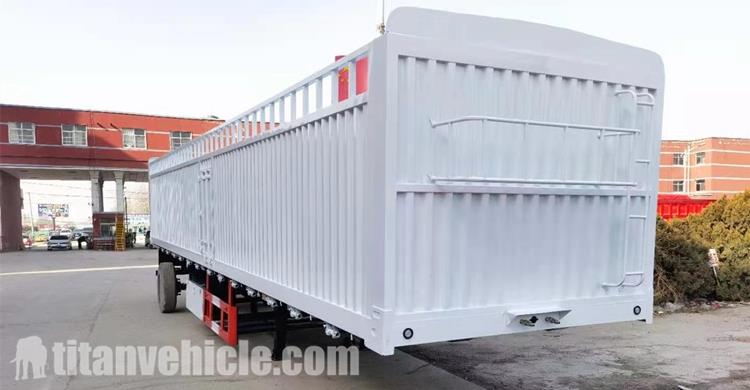

60 Ton Fence Cargo Semi Trailer for Sale In Namibia Luderitz

Namibia customers are our Facebook friends and have been following TITAN for many years. In 2019 years, the customer asked for details about the 60 ton fence cargo semi trailer.And tell us that he doesn’t have any idea to buy it at the moment, but might buy 3 axle fence cargo semi trailer within two years.

We inform customers that if you need a semi trailer in the future, you can contact us at any time. He found TITAN again in 2021 and is looking for a 3 axle 60 ton fence semi trailer for his project. Customers have already learned a lot about TITAN's 60 ton fence cargo semi trailer on Facebook. They trust TITAN very much as usual, and it went smoothly. Below is a picture of the packaged and shipped.

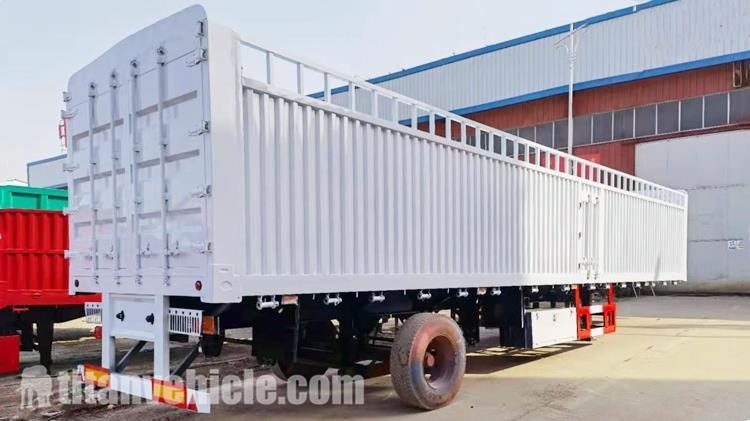

3 Axle Fence Cargo Semi Trailer Price for Sale Manufacturer

The Following Briefly Introduces 60 Ton Fence Cargo Semi Trailer

Fence cargo semi trailer is a semi-trailer designed with a fence structure for the loading part. Mainly used for the transportation of agricultural and sideline products and other light foam goods.

1. The frame of the 60 ton 3 axle fence cargo semi trailer is a beam-through structure, and the longitudinal beam adopts a straight type or a gooseneck type. The web height ranges from 400 to 500, the longitudinal beams are welded by automatic submerged arc welding, the frame is shot blasting, and the cross beams penetrate the longitudinal beams and weld the whole.

2. The car model and fence structure design process is combined with the user's cargo category and rationally designed to fully reduce the weight of the carriage under load. The structure is simple and applicable, and it is convenient to disassemble, reduce investment costs for users and create more profit value.

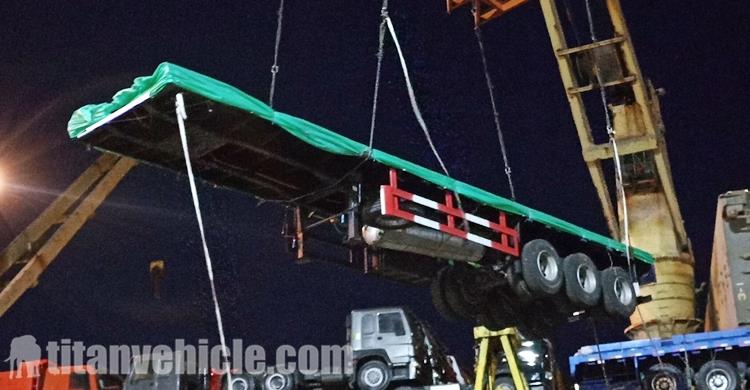

Package of Tri Axle Fence Cargo Semi Trailer

3. Frame: A space frame structure formed by welding longitudinal beams and integral cross beams. It can balance the strength, rigidity and toughness of the frame, with strong bearing capacity and no permanent deformation.

4. Suspension system: adopts a new type of suspension system of 60 ton 3 axle fence trailer with high strength and strong impact resistance; the load of each axle is balanced, and the system tie rod angle is reasonably designed to reduce the friction slip distance between the tire and the ground during frequent turbulence. Effectively reduce tire wear, and at the same time, adjust the tie rod and adjust the wheelbase, effectively avoiding the phenomenon of partial running-in of the tire.

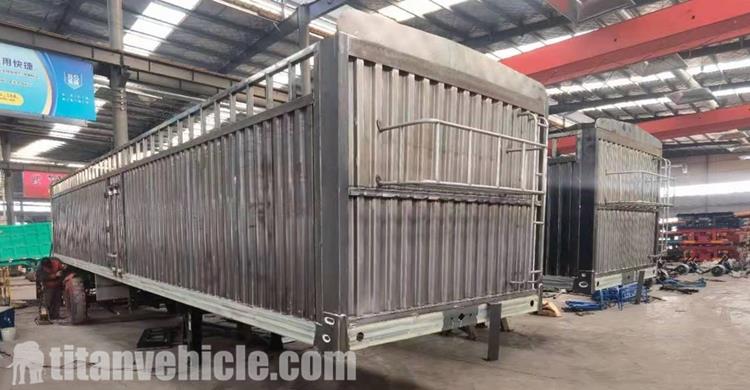

Factory Show of 3 Axle 60 Ton Fence Semi Trailer

Imported Brake Pads and Implanted Wear Alarm Devices.

Effectively guarantee the braking performance of the tri axle fence cargo semi trailer during operation. Brake discs containing alloy elements, anti-cracking, anti-wear and high-temperature resistance. Long warranty of 200,000 kilometers, maintenance-free, brake life up to 10 years and 1.5 million kilometers. High-precision load bearing, long life and low temperature. Double push rod brake calipers, stable braking performance.

1. It adopts Tiema brand low temperature resistant -35℃ brake air pipe, which is the same brand as the main engine tractor, and it is safer to drive. The whole vehicle wiring harness uses 7-core wiring harness, without any grounding treatment, the lamp can work normally, the use failure rate is low, and it does not need to be replaced for life.

2. Use Phillips pneumatic handshaking joints, which are air-tight and more durable.

3. The use of 5 series aluminum alloy material 50L air reservoir can effectively avoid frequent use of brakes and insufficient storage air pressure, which may cause spontaneous combustion of tires and brake failure.

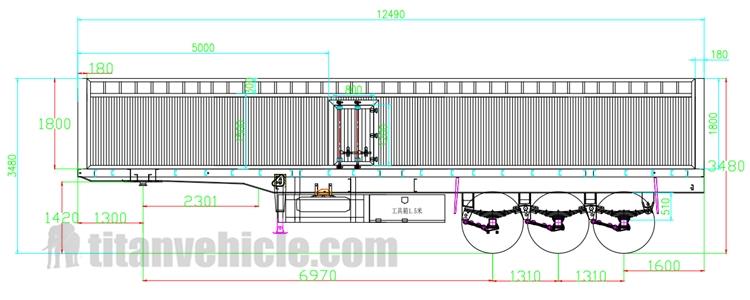

Drawing of 3 Axle 60 Ton Fence Cargo Semi Trailer

You can download video, you can learn about different types of fence semi trailer for sale(like 3 axle fence trailers, 4 axle stake trailer and fence full trailer).And the process, testing, packaging and customer feedback, etc.

Side Wall Semi Trailers Video

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
