6 Axle Extendable Windmill Trailer will be sent to Vietnam.

6 Axle Extendable Windmill Trailer for Sale In Vietnam

The Vietnamese customer saw the 9 axle exendable semi trailer in the local area, and the customer felt that it satisfies their job requirements very well. The customer's company mainly transports wind blades. After the customer informed us of the demand, the sales manager Jacky recommended 6 axle extendable windmill trailer, and wind blade trailer according to the customer's demand. Because the customer's transportation road is rugged and very curved, Wind Blade Trailer is very suitable for this kind of road transportation.

This transport method generally uses ordinary 6 axle extendable trailer to transport wind blades. The characteristics of this 6 axle extendable windmill trailer for sale are that it can be extended and retracted to accommodate blades of different lengths.

The tail platform forms the rear section of the 62m 6 axle extendable windmill trailer for sale. mega windmill transporter can either be a folding or pulling platform configuration. Therefore, users can choose a telescopic trailer based on these tail platform configurations.

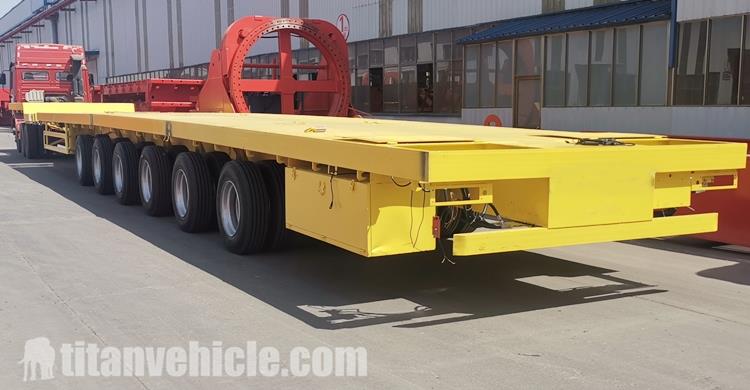

62M Extendable Windmill Semi Trailer Price

Advantage of 6 Axle Extendable Windmill Trailers:

Reliable and Efficient. Constructed of high yield strength material, telescopic trailers are reliable in terms of safety and general transportation needs.

It’s easy to use. The 6 axle extendable windmill trailer comes in a simple design that is easy to use and operate either hands-on or remotely. Loading and offloading cargo are made safe and simple for operators to manage the operations in an effortless manner.

It can transport other kinds of oversized cargoes, not only the blades and tower. Therefore, the user can put the 6 axle 62M extendable trailer into many other uses other than for transporting wind turbine blades. The 6 axle extendable windmill trailer has a longer length, we can lay down the blade on top of the trailer in a flat position. The cost of the trailer is lower.

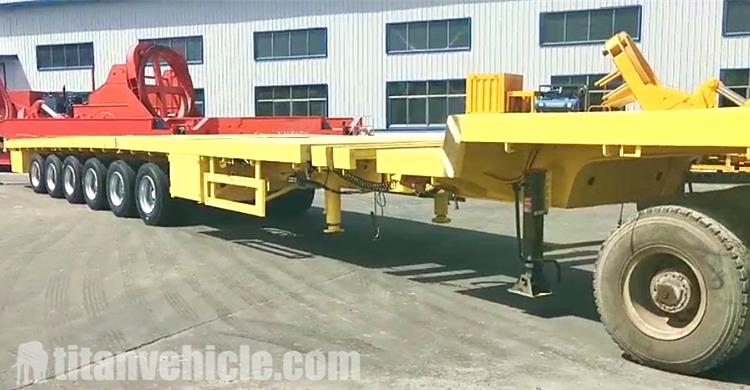

6 Axle Extendable Trailer for Sale Manufacturer

Suspension

Hydraulic, air, and mechanical suspension can be options according to different road conditions and specific project requirements.

1. Air Suspension

Suspensions of wind blade trailer could use mechanical spring suspension, hydraulic suspension, or air bellow suspension. The air suspension would be best to protect the windmill blade from possible shock during transportation.

2.Hydraulic Suspension

Hydraulic windmill blade is an extendable telescopic beam connect with a hydraulic modular trailer, axle numbers could be three or above to adapt different weights of the blades. In this case, the hydraulic wind blade trailer has a bigger steering angle compare to that of the airbag extendable trailer.

The hydraulic suspension blade trailer has a lower cargo platform height than that of the air suspension trailer, also the lifting stroke is wider. The hydraulic suspension has advantages so the cost is higher than the air and mechanical suspension blade trailer.

3.Mechanical Suspension

The mechanical suspension is strong and at low cost, hydraulic suspension is suitable for heavier cargo.

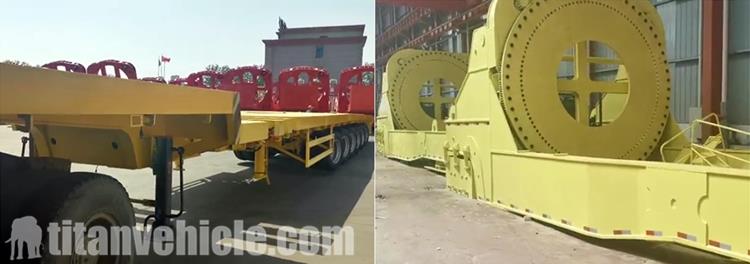

Details of Extendable Windmill Semi Trailer and Windmill Blade Trailer

Steerable axles

The hydraulic cylinders controls the steering of the trailer.

Due to the length of the 6 axle extendable windmill trailer(together with the blade) could reach up to 70 meters, the most suitable way to realize steering is by operator’s manually control.

Extendable telescopic beam

The telescopic beam blade trailer is extendable to 62 meters. Sliding pneumatic locking system for telescopic boom on both sides.

The reels of wire are air brake hose and electric wire, make sure the brake system and illumination system are working while the telescopic beam extended.

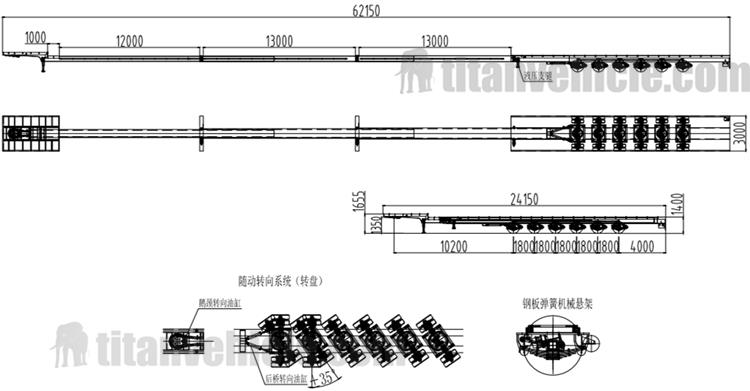

Drawing of 6 Axle Extendable Semi Trailer

Here is the Extendable Windmill Blade Trailer transportation details display video. This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
