50T Side Wall Semi Trailer will be sent to Sudan Port Sudan.

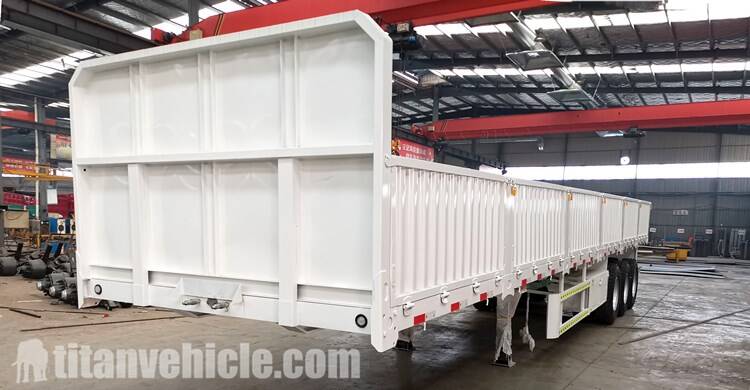

50T Side Wall Semi Trailer for Sale in Sudan Port Sudan

In 2019 our Sudan Port Sudan customers ordered 3 unit cargo semi trailer for their work. The customer told us immediately after receiving the semi trailer and told us that the trailer reached the destination very smoothly, the packaging was completed and there was no damage. They also hope that the 3 axle side wall semi trailer will be put into use as soon as possible and create greater value for them.

The Bulk Cargo Semi Trailer video we sent to the customer includes detailed pictures of the production, test video and other details. Customers are very satisfied with TITAN drop side trailer, not only TITAN's professional production line but also a detailed introduction to the high side trailer.

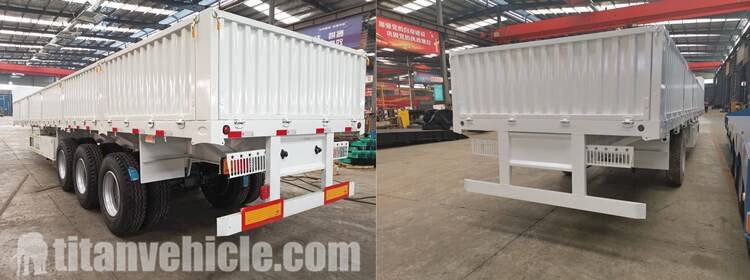

Trailer for Sale

Side Wall Semi Trailer is a semi-trailer with a fence structure. It has a wide range of uses, mainly suitable for medium and long-distance transportation of medium and heavy-duty and bulk cargo. It has strong applicability and has become the first choice for medium and long-distance freight vehicles.

1. The vehicle body is made of high-quality steel, advanced technology, and strict production. The vehicle has a reasonable structure, reliable performance, easy operation and beautiful appearance.

2. Cargo semi trailer frames are all beam-through structures, and the longitudinal beams are straight or gooseneck. The web height ranges from 400mm to 550mm by welding with manganese plates, the longitudinal beams are welded by automatic submerged welding, the frame is shot blasted, and the beam penetrates the longitudinal beams and welds the whole.

3. The suspension adopts a non-independent steel plate stamping rigid suspension, which is made of tandem steel plate springs and suspension supports; the structure is reasonable, has strong rigidity and strength, and is used to support the load and reduce the impact.

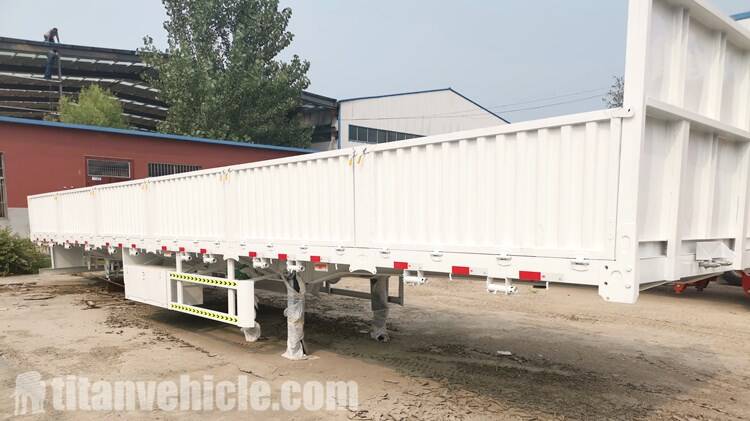

Drop Side Trailer Price for Sale

Here are some main parts of the dropside trailer.

Tractor Pin:

The high side trailer and the tractor are all connected by it. It is connected to the traction seat of the main trailer stakes and also bears all the traction. It is an important component. At present, the traction pins on the market are mainly divided into 4 types, assembly 50, assembly 90, welding 50, welding 90, users can choose according to different models and actual use.

Wheel hub of dropside trailer:

The steel ring is also called the wheel hub, it is an important part of the general cargo trailers. The tire is the rubber part of the entire tire. It is soft in itself, so the inner part of the tire supporting the tire is barrel-shaped, centered on the shaft. The part is called the grain hopper wheel hub.

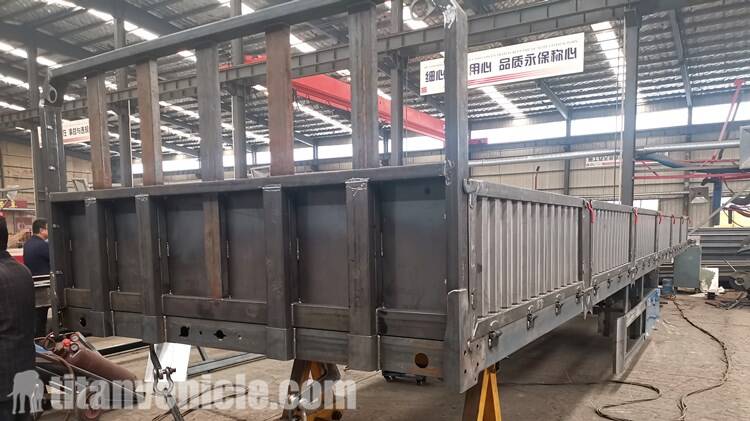

Product Process of 50T Side Wall Trailer

Suspension system:

Suspension device support is welded on the back and lower part of the longitudinal beam and support device support is provided on the lower front part. The suspension system is a three-axis leaf spring suspension, which is used to support the load and has the function of absorbing driving vibration and so on. The leaf spring suspension system is fastened to the axle body with U-bolts.

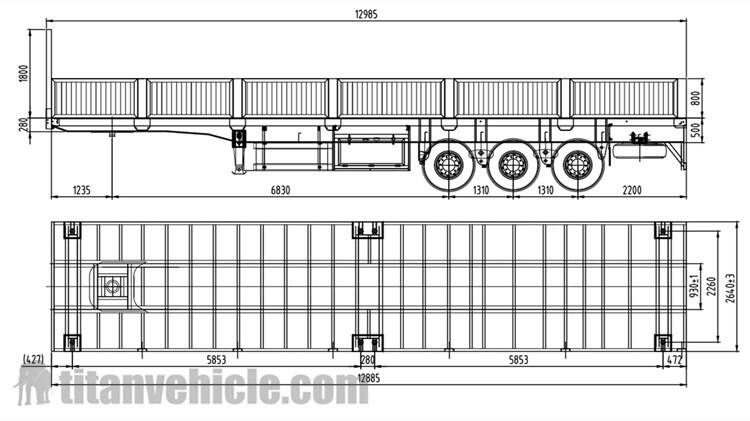

Drawing of 3 Axle Drop Side Trailer Manufacturer

You can download video, you can learn about different types of side wall semi trailers(like 3 axle sidewall trailers, 4 axles high side trailer, grain hopper trailer, aluminum alloy side board trailer, 2 axle side wall semi trailer with bogie suspension, dropside drawbar trailer). And the process, testing, packaging and customer feedback, etc.

Side Wall Semi Trailers Video

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
