Customers Feedback of 50 Ton Flatbed Trailer with Sidewall.

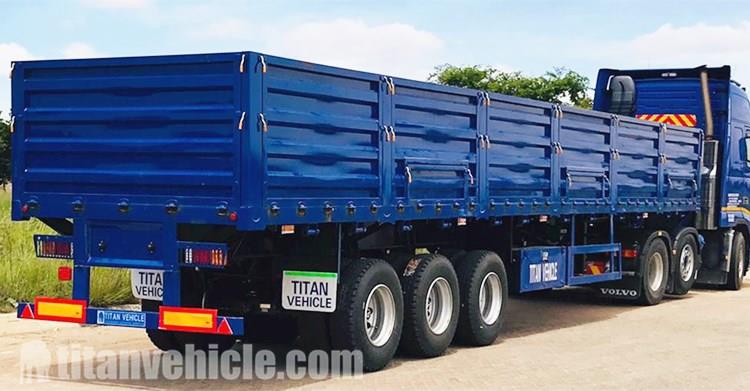

50 Ton Flatbed Trailer with Sidewall for Sale In Zimbabwe Harare

Do you still remember the flatbed trailer with side wall sent to Zimbabwe in November 2020? The customer ordered a 3 axle flatbed trailer with sidewall in 2020. The customer gave us feedback after using it for a few months. The customer was very satisfied and praised the sales manager Alice's business ability and professionalism.

TITAN is selling more and more semi-trailers to Africa. Many African customers engaged in long-distance transportation have chosen semi-trailers, but do you know how semi-trailers are made? Before production, the technical department must first design and produce drawings according to the needs of users and the market, so as to match the technical parameters of all aspects of the main vehicle trailer, and then transfer to the manufacturing department.

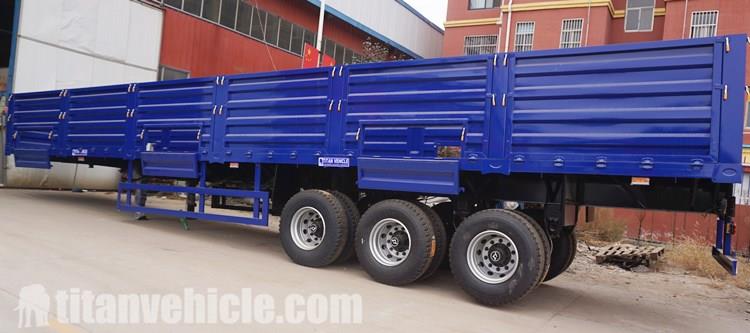

Truck Trailer for Sale Near Me

The following is the production process of TITAN Flatbed Trailer with Sidewall factory.

1. Cutting board stage

According to the drawings of 50 ton flatbed trailer with side wall the parts produced by the design department, the parts are cut out with a CNC cutting machine, such as beam webs, reinforcement plates, standard small parts, etc. are cut out in this way.

2. To beams, submerged arc welding beams, and repair beams

The second step is to fix the cut web and upper and lower wing plates with welding points, and then weld the girder by submerged arc welding. This step is very important. Both the beam and the submerged arc welding are very demanding. If the technical process is not good, the beam will have problems.

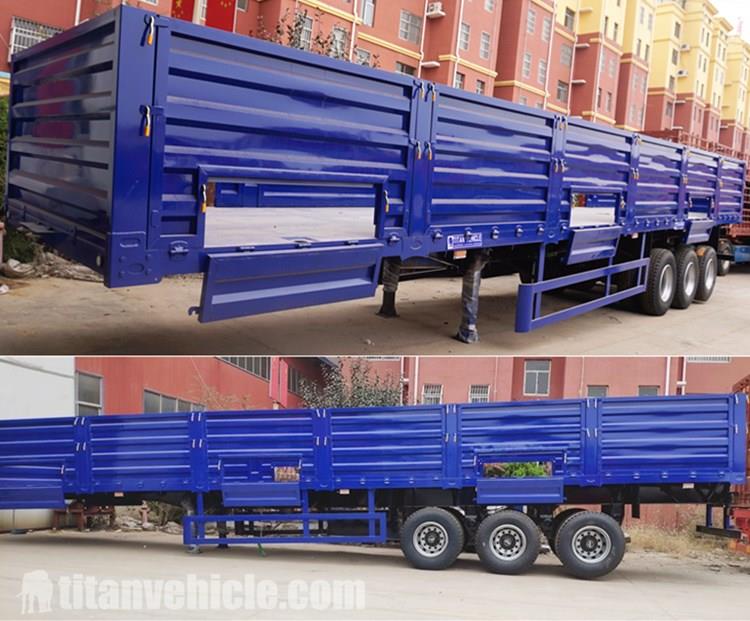

3 Axle Flatbed Trailer with Side Wall

3. Open-hole school beam through beam

First cut out the U-shaped hole through which the through-beam can pass through the web of the beam, and then fix the welded I-beam in parallel to connect the through-beam. The result of the beam is very important. If the parallel error of the two I-beams is large, the tire eating phenomenon will be very serious.

4. Edge beam, frame, welding traction pin

At this time, the girders are basically formed, but the side beams are welded to form a frame structure. Weld the traction pin to the position required in the contract, and the welding process is required to be high, otherwise the side wall trailer will droop. At this time, the welding suspension must strictly control the size and maintain correctness, otherwise, it will eat tires.

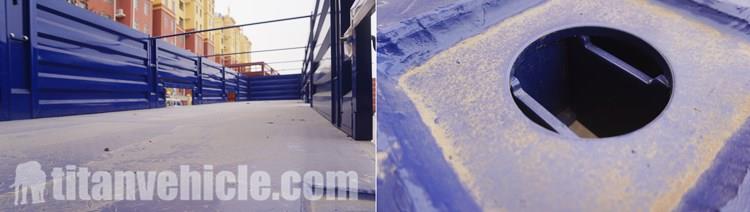

50Ton Side Wall Semi Trailer Price

5. Connect the front neck and spread the bottom

The high and low boards and low boards with the front neck have this process, but the flat boards do not. The front neck of the trailer with sidewall is all welded on. After the welding is completed, the plank reinforcement is done. There is no problem with strength. The manufacturer has also considered it in advance. After that, the bottom plate is fully welded or broken on the frame, there is nothing to say at this step.

6. Standing box board, vertical door leaf, matte, spray paint

Spot welding and fixing the box plate in advance, and then weld the column hinges to keep the box plate upright and beautiful. Sanding is the first step of the painting. Some manufacturers without a shot blasting workshop will use high-pressure air to blow and polish the welding slag at this stage. After the painting is finished, the walking system of the bottom plate is installed, and the assembled bottom plate is simply installed and then precisely debugged.

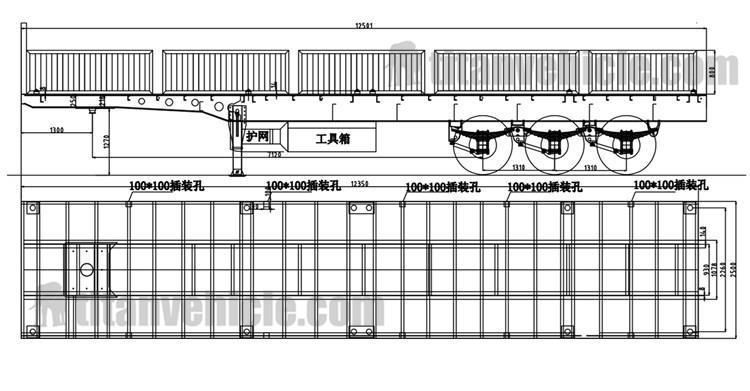

Drawing of Tri Axle Flatbed Trailer with Sidewall

It should be noted that the air pressure at the factory is generally not standard air pressure, and the card friend has to call it again after buying the sidewall trailer.

You can download video, you can learn about different types of side wall semi trailers(like 3 axle sidewall trailers, 4 axles high side trailer, grain hopper trailer, aluminum alloy side board trailer, 2 axle side wall semi trailer with bogie suspension, dropside drawbar trailer). And the process, testing, packaging and customer feedback, etc.

Side Wall Semi Trailers Video

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
