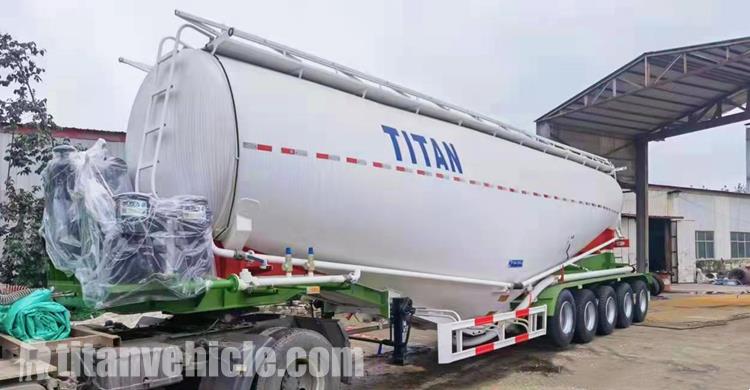

5 Axle 60CBM Powder Tanker Trailer for Sale In Guyana Georgetown,gy
Mr. Kevin, a Guyana customer, saw feedback from Ghanaian customers on Google, and the customers were very interested. Of course, the Ghanaian customer has cooperated with us 3 times, and the customer upgraded the configuration every time. Therefore, the Guyana customer found us and asked about the specific configuration and price of the 5 axle powder tanker trailer. The sales manager Annie sent the customer a detailed quotation for reference.
And according to the customer's needs, Annie and the factory's professional engineers adjusted the specific details and drawings of the powder tanker trailer. The customer is very satisfied. The following is the upcoming 60 cbm powder tanker trailer.

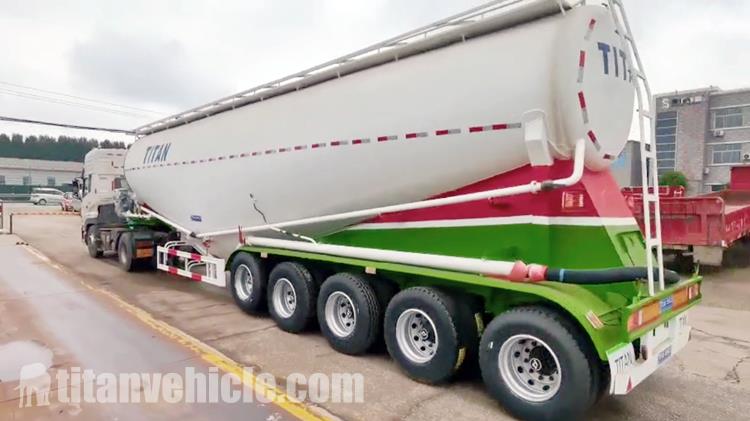

60CBM Powder Tanker Truck Trailer for Sale Price
1. Tank body: The tank body is mainly composed of two oblique cones and front and rear heads, which are placed on the frame and also serve as a carrier. The 60cbm powder tanker trailer tank body is equipped with a material inlet (manhole), a non-slip walking platform and a climbing ladder for loading and maintenance personnel to enter the tank.
The tank has a fluidized bed composed of a sliding body, an air chamber, a perforated plate, a discharge port, a reinforcing rib, etc. The tank structure is V-shaped, W-shaped, or straight.
2. Power system: use domestic well-known brand oil-free pendulum single-cylinder or double-cylinder air compressor to provide compressed air for unloading work. The rated working pressure is 0.2Mpa; the displacement is 10-14 cubic meters/min. The diesel engine and the electric motor wave are connected to the drive shaft through the secondary force to provide power input for the air compressor.

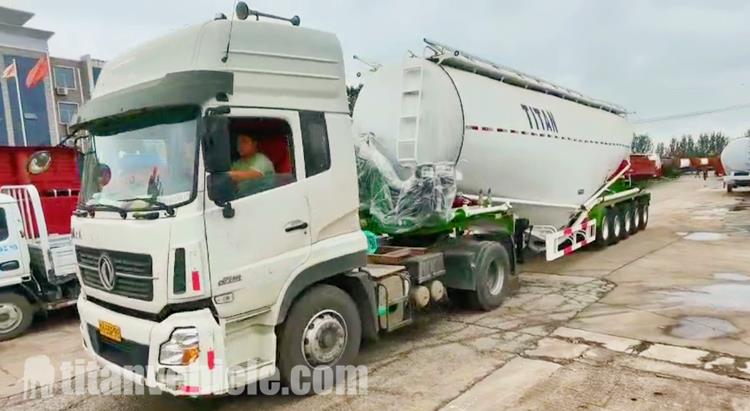

5 Axle Powder Tanker Trailer Manufacturer
1. Frame: The frame is the main body of the power tanker trailer, which is welded into a frame structure by two longitudinal beams and multiple beams, and formed by welding with the tank body. Since the frame is the main body of the 5 axle power tanker trailer, welding or drilling operations are not allowed in any position on the longitudinal beam without our company's consent!
2. Walking mechanism system: The walking mechanism system consists of suspension, leaf springs, tie rods, axles and wheels, etc. The suspension is a tandem balanced leaf spring suspension, which is used to support loads and absorb driving vibration.
3. Brake and its operating device: 60cbm power tanker trailer adopts a dual-pipe pneumatic braking system. The service brake system mainly consists of palm joints, air supply pipelines, control pipelines, emergency maintenance valves, air storage cylinders, energy storage brake chambers and wheel brakes.

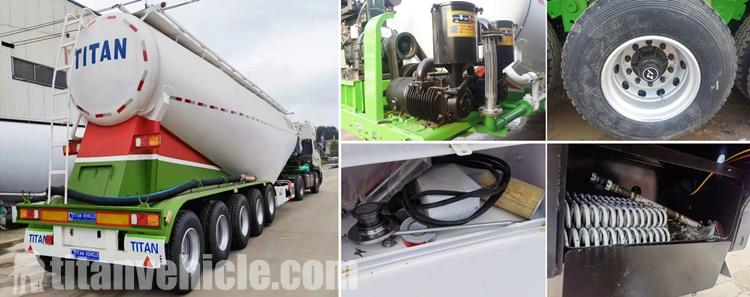

Details of 5 Axle 60Cbm Cement Bulk Tanker Trailer
4. Brake system: The parking brake is controlled by the semi-trailer energy storage spring brake system and the wheel brake doubles as the parking brake. This device is used when parking or parking on a slope.
5. ABS braking system: It is an electronic system that controls and monitors the speed of the 5 axle cement bulk tanker trailer during braking. It can improve the active safety of the vehicle.
6. Kingpin: Generally equipped with 90# or 50# traction pin without special instructions. When the 60cbm power tanker trailer is in use, the traction pin and traction plate should be coated with lithium grease for lubrication.
Drawing of 5 Axle 60 CBM Tanker Trailer for Sale
You can download video,you can learn about different types of bulk cement tanker trailers, such as 3 axle dry bulk tanker trailer, 30-ton fly ash tanker, 50cbm silo trailer for sale, and process, testing, packaging and customer feedback, etc.
Bulk Cement Tanker Trailers Video
This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
