34 Ton Side Dump Trailers will be sent to Senegal Dakar

34 Ton Side Dump Trailers will be sent to Senegal Dakar.

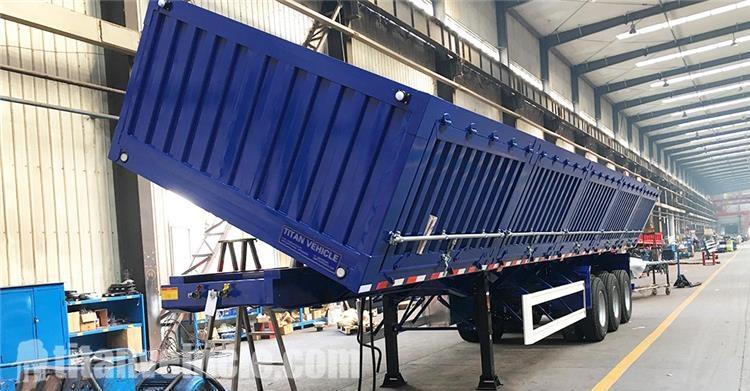

34 Ton Side Dump Trailers for Sale In Senegal Dakar34 Ton Side Dump Trailers for Sale In Senegal Dakar

In 2019, our Senegal customers ordered 3 units side wall semi trailer for their work. This year, the customer placed an order for 3 Axle side dump trailer. Just shipped April 22. Although this is not our first cooperation, we still maintain our original intention and provide our customers with the best quality. Therefore, as an old customer, our company helped apply for the preferential policies for old customers. Thank you very much for your trust in us.

Side dump trailer is another type of dump truck, and it allows goods to be unloaded from the side. The main types of cargo transported by this semi-trailer are building materials, such as stone, sand, etc.

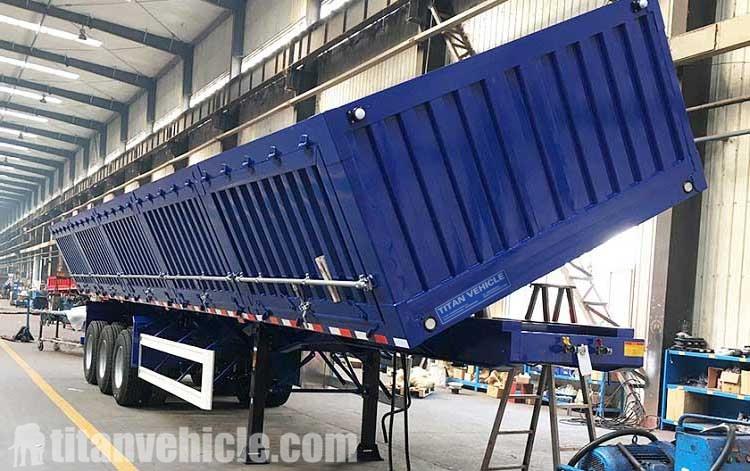

3 Axle Side Dump Trailer for Sale Price3 Axle Side Dump Trailer for Sale Price



Competitive Advantage of 34 ton side dump trailer

1.Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.

2.Well-known brand axles, suspension systems, high performance, and reliability to use, to ensure the good performance of the vehicle.

3.TITAN 34 ton side dump trailer are equipped with HYVA cylinder, which is more reliable and more safety. We suppply 34 ton side dump trailer with multiple customization options.

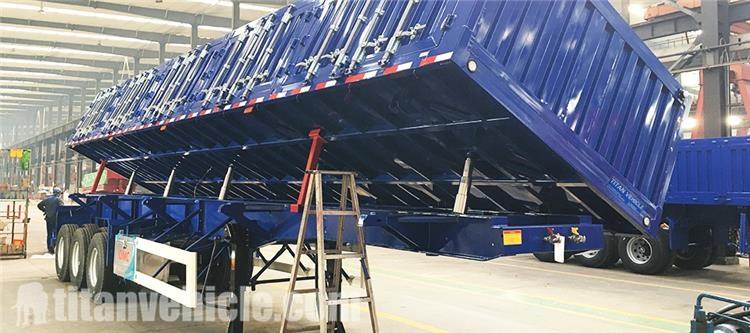

Details of  34 Ton Side Dump Trailer Details of  34 Ton Side Dump Trailer



New Side Dump Trailer Inspection

1. During the lifting process, pay attention to check whether the hydraulic cylinder, gear pump, control valve and other components work normally, such as whether the hydraulic lifting is stuck, bouncing and abnormal noise.

2. Check tri axle side dump trailer to whether the amount of oil in the hydraulic oil tank is sufficient, otherwise, the full amount of oil must be added according to the requirements of the prescribed oil grade.

3 At the same time, check the manual operation valve, the air circuit for leaks, and the hydraulic system for leaks.

4. Under no-load conditions, carry out the lifting test according to the operating procedure of the lifting mechanism of the dumping mechanism.

5. After 8-10 times of no-load lifting test, it works normally. It can be regarded as good dumping performance without oil and gas leakage.

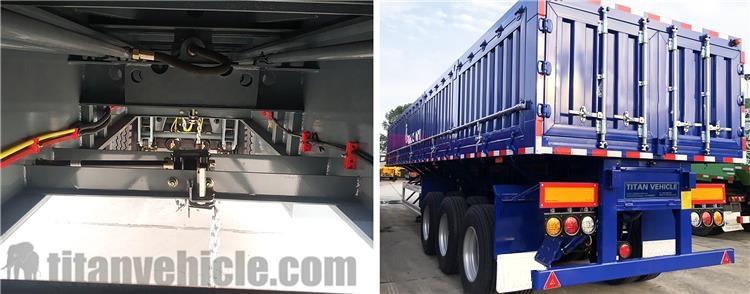

Factory Show Of Tri Axle Side Dump TrailerFactory Show Of Tri Axle Side Dump Trailer



Side dump trailer are suitable for the transportation of bulk cargo such as coal, ore, and building materials.

1. The carriage adopts side-turning and back-turning self-unloading methods, which can effectively improve the transportation efficiency of the loading and unloading machine to transport the bulk cargo.

2. Both the frame and the longitudinal beam of the carriage are welded with high-quality manganese plates, and the cargo box has two types: dustpan and rectangle. It has high strength, strong lifting force, good rigidity, toughness, strong bearing capacity, and no permanent deformation.

3. Sophisticated technology: the main components are processed by advanced equipment, the longitudinal beams are fully automatic submerged arc welding, and the assembly machine is used for precise assembly of the axle and steel plate spring.

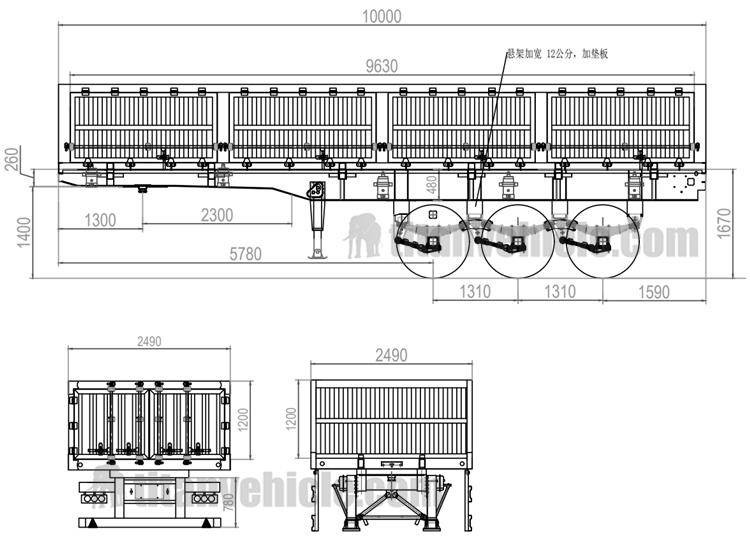

Drawing of 34 Ton 3 Axle Side Dump TrailerDrawing of 34 Ton 3 Axle Side Dump Trailer



You can download video, you can learn about different types of semi tipper trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer.

And the process, testing, packaging and customer feedback, etc.

Tipper Trailers Video

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
