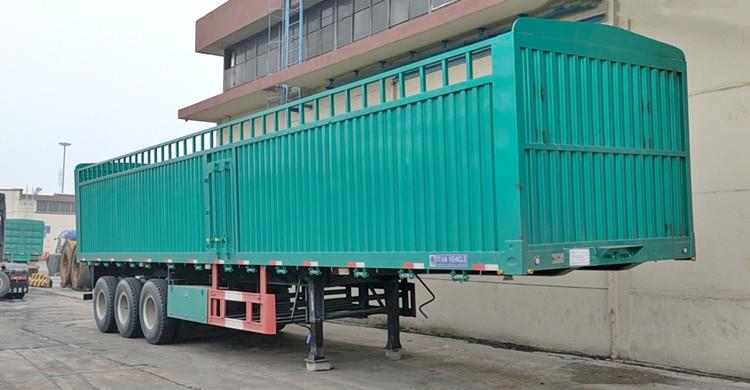

3 Axle High Side Fence Truck Trailer will be sent to Sudan

3 Axle High Side Fence Truck Trailer for Sale in Sudan

3 Axle High Side Fence Truck Trailer for Sale in Sudan



Sudan Customers find us through google, of course, more than one of our suppliers. Understand the customer's needs as usual. Customers know a lot about semitrailers, sale manager Sunny is easy to communicate with our customers, and customers demands are extremely high. The customer clearly needs fence cargo trailer. Before, many customers bought 3 axle fence truck trailer.

The side boards of this model fence truck trailer is very high and can carry more bulk cargo. Customers say that we are the most professional manufacturer.

TITAN 3 axle fence cargo truck trailer adopt advanced intelligent manufacturing equipment such as finite element analysis, calibration design, laser cutting machine, robot welding, etc., and strictly process requirements from the design source to the entire process of product manufacturing. So as to ensure that every trailer delivered to the customer is a high-quality and qualified trailer.



3 Axle High Side Fence Truck Trailer for Sale in Sudan

3 Axle High Side Fence Truck Trailer Ready to Ship to Sudan



Production process of fence truck trailer in TITAN factory

1. Stage of cutting steel sheet material

According to the drawings of each part produced by the design department, each part is cut out with a CNC cutting machine, such as beam webs, reinforcement plates, standard small accessories and so on.

2. Submerged arc welding beams, beams fixed

The second step is to fix the cut web and the upper and lower wing plates to weld points, and then weld the beam by submerged arc welding.

This step is very important. Both the fixing of the beam and the submerged arc welding are very demanding. If the technical process is not feasible, the beam will have problems. Can the fence cargo semi trailer be okay if something goes wrong?



3 Axle High Side Fence Truck Trailer for Sale in Sudan

3 Axle High Side Fence Truck Trailer for Sale in Sudan



3. Opening, calibration beam, through beam

First cut out the web of the beam to cut out U-shaped holes through which the beams can pass, and then fix the welded I-beams in parallel. The result of comparing the beams is very important. If two I-beams have large parallel errors, very serious tire wear will occur.

4. Connect side beams, welding king pins

At this time, the main beam is basically formed, only the side beams are welded to form the frame structure. And the traction pin traction plate is welded to the position required in the contract, the welding process is required to be high, otherwise the fence semi trailer will be skewed.

5. Welding frame, welding suspension

At this time, the welding suspension must strictly control the size and maintain the squareness, otherwise it will cause tire wear.



3 Axle High Side Fence Truck Trailer for Sale in Sudan

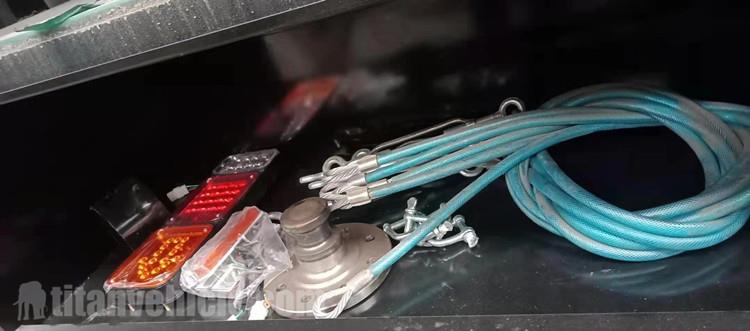

Accessories included with the fence truck trailer



6. Lay the bottom plate and removable wall

That is, the bottom plate and removable wall is fully welded on the frame. There is nothing to say at this step.

7. Frosted and painted

Frosting is the previous step of spray painting. Some manufacturers without shot blasting workshops will blow and polish the welding slag with high pressure gas at this stage.

Spray paint is usually sprayed in a well-ventilated shed. If you want to spray beautifully, you must first look at the coating and the technology of the technicians, but TITAN will spray very beautifully. Basically, you don’t have to worry about this. We will be very attentive!

8. Installation the bottom accessories and tires

After spray painting is completed, the bottom travel system is installed, and the assembled bottom is simply mounted and then precisely adjusted.

It should be noted that the tires air pressure at the factory is generally not the standard air pressure. You must confirm it again after you buy the fence cargo truck trailer.

3 Axle High Side Fence Truck Trailer for Sale in Sudan



You can download video, you can learn about different types of fence semi trailer for sale(like 3 axle fence trailers, 4 axle stake trailer and fence full trailer).And the process, testing, packaging and customer feedback, etc.

Side Wall Semi Trailers Video



This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
