3 Axle Curtainsider Trailer will be send to Nigeria Lagos.

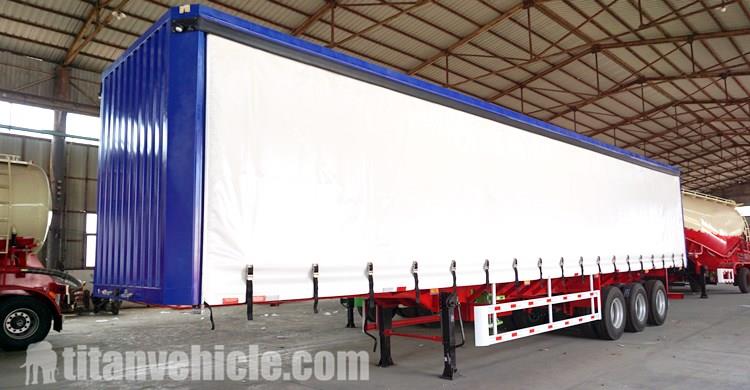

3 Axle Curtainsider Trailer for Sale In Nigeria Lagos

Old Nigerian customers want to customize a Curtainsider Trailer for their own business. Because of belief in TITAN's technical and business capabilities. And for special semi-trailers, we have a professional design and production team to ensure that customers receive the most satisfactory semi-trailer.

From the structural analysis, the underframe structure of Curtainsider Trailer is not essentially different from flatbed semi trailer, side wall semi trailer and fence semi trailer.

That is to say, the carrying capacity of the Curtainsider Trailer is no different from the structural carrying capacity of the cargo semi trailer with the same number of axles and dimensions. The main difference is that the top of the side curtain trailer is different from the side wall semi trailer and fence semi trailer.

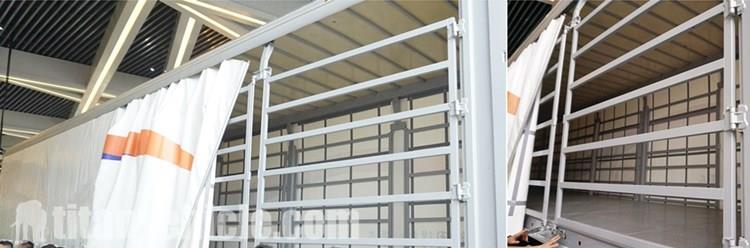

Curtain Sider Trailer for Sale Price

The top structure of the Curtainsider Trailer consists of the front wall, the rear door end, the left and right top side beams (usually aluminum alloy cross-sections), and the left and right sides of the side curtain trailer are respectively equipped with sliding columns (13.7 meters long side curtain semi-trailers generally have 3 on each side), There are pulleys on the sliding column to slide in the side beam.

When the cargo installation is completed, slide the sliding column into place and lock it.

The Curtainsider Trailer's front and rear walls, top side beams, side sliding columns, and cargo barriers between the sliding columns and between the sliding columns and the front and rear walls constitute the Curtainsider Trailer's upper frame structure. After the sliding roof is closed, it also participates in the entire upper assembly. The structure is stressed.

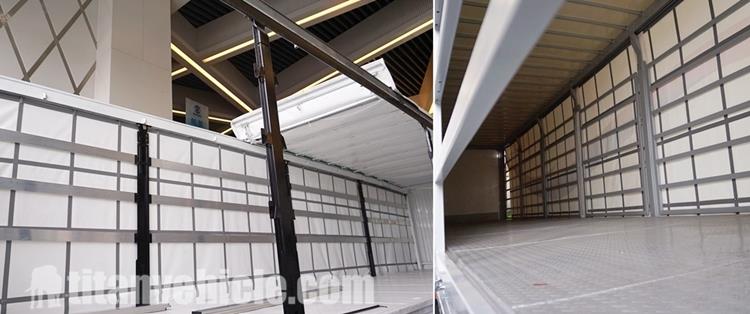

Details of Tri Axle Curtainsider Trailer for Sale Manufacturer

After the side curtains are closed, they are tensioned back and forth by a tensioner, so that the side curtains produce front and rear tension. All the tension belts arranged on the length of the side curtains are tightened up and down and fastened, so that the side curtains generate up and down tension so that The side of the curtain side trailer forms a "sidewall" structure with a skeleton on the inner side and curtain tension on the outer side, which can withstand the lateral force generated by the cargo when the side curtain car turns.

In addition, the underframe side beam and floor of the 3 axle curtainsider trailer are equipped with several pull rings or floor rings to fix the goods of the device, as far as possible to reduce the shaking of the goods and the lateral force on the side curtains.

From the perspective of the strength standard of the Curtainsider Trailer, the strong design and test requirements of the sidewall, front and rear walls of the European curtain side semi-trailer are the same as those of the van semi-trailer.

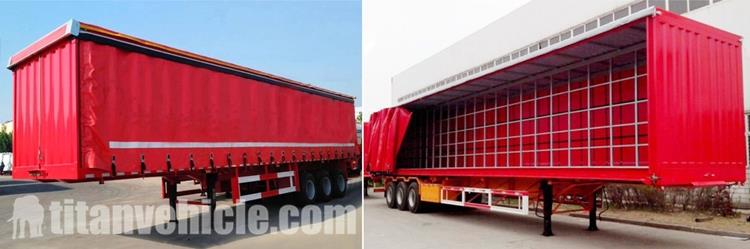

Other 3 Axle Curtain Side Trailer for Sale Price Manufacturer

Side curtains, sliding columns, front walls, and rear door panels all need to pass the strength test required by the EN12642 standard and be certified by a third-party organization. Only the parts manufacturers can sell them and the trailer manufacturers can apply them to the Curtainsider Trailer.

Therefore, Curtainsider Trailer's overall strength test and component certification test ensure the safety and reliability of tri axle curtainsider Trailer for sale.

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
