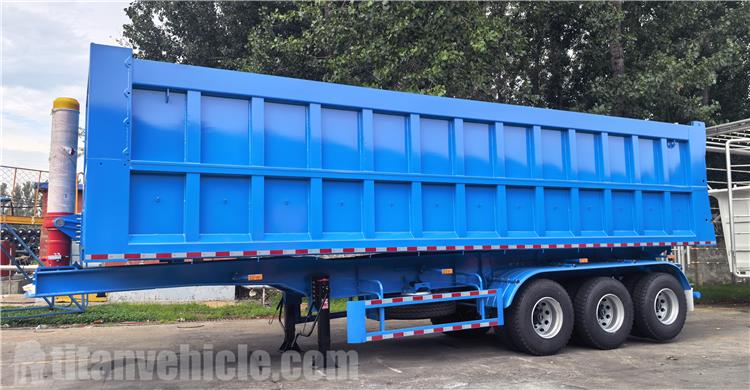

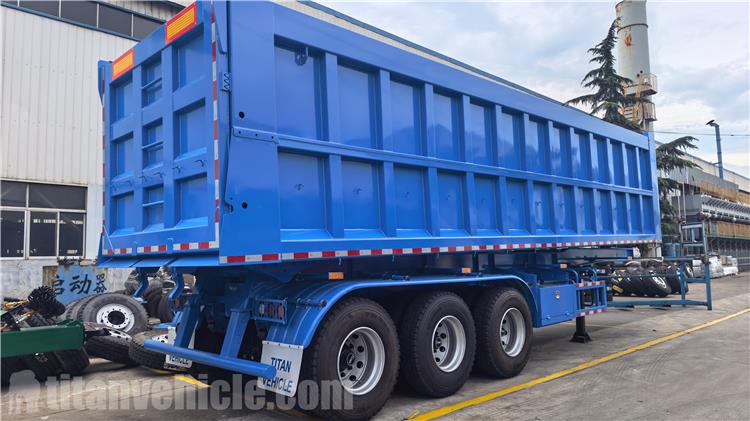

3 Axle 60 Ton Tipper Trailer for Sale In Mali

Recently, the tipper trailer we meticulously manufactured successfully passed inspection and underwent anti-corrosion coating treatment; it has now been loaded and shipped to Mali.

The client in Mali specializes in the transport of sand, gravel, ore, and construction materials. Based on local operating conditions, the client outlined several core requirements: an actual payload capacity of 60 tons to meet the bulk transport needs of mining operations and large-scale infrastructure projects. Local road conditions involve numerous unpaved dirt roads, rugged mining terrain, and high-temperature environments; consequently, the chassis and suspension systems require excellent shock absorption and torsional rigidity.

The trailer design must ensure efficient unloading to minimize downtime, while the hydraulic lifting process must be smooth and safe to prevent the risk of rollover. Transporting hard materials like sand and crushed stone causes significant wear on the cargo box; therefore, the steel plates used for the body must be robust, corrosion-resistant, and highly wear-resistant.

To meet the client's specific needs, TITAN comprehensively optimized and reinforced the trailer's structure, material selection, and key component configurations:

The main beams are manufactured from T700/Q345B high-strength steel, offering superior tensile strength to effectively withstand heavy-load impacts. A double-layer reinforcement and anti-torsion design—featuring thickened top and bottom flanges, a double-layer main beam structure, and transverse balance beams—significantly enhances the frame's overall rigidity and resistance to torsion and bending.

The trailer utilizes large-bore hydraulic cylinders from internationally renowned brands (such as HYVA) to deliver powerful lifting force.

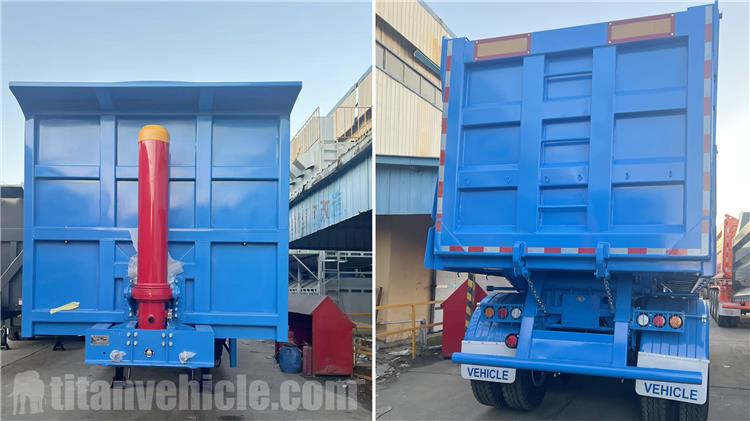

3 Axle 60 Ton Tipper Trailer for Sale In Mali

The hydraulic cylinders feature a long stroke and an optimized lifting angle for rapid unloading; the center of gravity remains stable during the lifting process, ensuring excellent rollover prevention.

The tipper trailer is equipped with FUWA or BPW 13-ton/16-ton heavy-duty axles, offering high load-bearing capacity and easy maintenance.

A widened and thickened mechanical suspension system with multi-leaf springs is employed to effectively absorb vibrations from mining areas and rugged terrain, thereby extending the vehicle's service life. The floor plate thickness is increased to 5–8 mm and the side wall thickness to 4–6 mm (customizable upon request), allowing the trailer to easily withstand the impact of ore and crushed stone.

The side walls feature closely spaced reinforcing ribs and vertical posts to prevent bulging or deformation under the high pressure of a full load.

Equipped with JOST landing gear and kingpins, WABCO brake valves, and waterproof LED lighting to enhance overall operational reliability.

To protect the vehicle from salt spray and corrosion during maritime transport, we implement comprehensive protective measures prior to shipment: the body is coated with protective wax to guard against salt spray effectively, and the entire vehicle is wrapped and covered with professional-grade, waterproof, and moisture-resistant tarpaulins.

If you are looking for a cost-effective, durable, and reliable tipper semi-trailer for Mali or the West African region, please feel free to contact us; we will provide you with a tailored solution and a highly competitive quote!
