3 Axle 52m Extendable Trailer for Sale in Tanzania

Tanzania customer purchased 3 axle 52m extendable trailer for the second time. Customers' trust has always been the driving force for our production.

TITAN 3 axle 52m extendable trailer is not only because of the good quality but also the service of the sales manager Barry is very good. I was a novice when I first started using it, and Barry taught me how to use it through videos.

And we also have detailed usage videos and user manuals. Due to the expansion of the customer's business, it is necessary to upgrade and purchase a new 3 axle 52m extendable trailer. Our professional engineers designed a brand new 3 axle 52m extendable trailer combined with the customer's needs and Barry's suggestions.

3 Axle 52m Extendable Trailer for Sale in Tanzania

The pulling and closing operation of the 3 Axle 52m extendable trailer is very simple. You simply use the tractor to go forward or backward while braking on the rear axle. After reaching the working distance, lock it with the positioning pin.

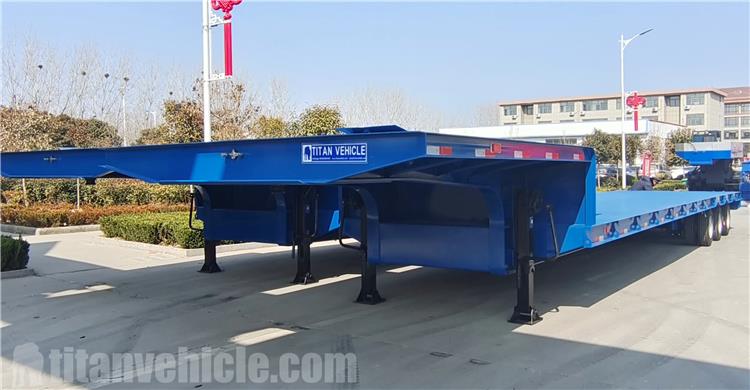

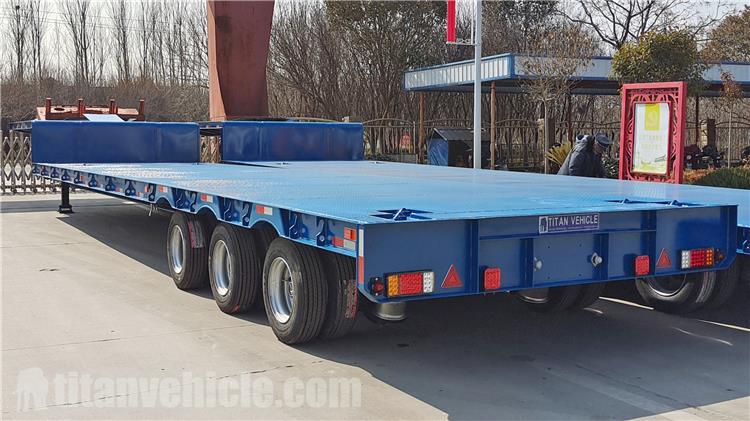

TITAN manufactures 3 axle 52m extendable trailers for transporting long rails, pipes, 40ft containers, 20ft containers or other bulk cargo. The trailer extension length of the 40-foot retractable flatbed trailer is extended from 12.5 meters to 24 meters, and the 3 axle 52m extendable semi trailer can be loaded with a 40-foot container or a 20-foot container after it is closed.

3 Axle 52m Extendable Trailer for Sale in Tanzania

The 24V single wire system constitutes the electrical system of the 3 axle 52m extendable trailer for sale. In general, an electrical system includes components such as lights, connectors, and wires. The electrical connector attached to the selected 3 axle 52m extendable trailer is a national standard 24N electrical connector.

Exterior signaling and lighting packages are often equipped with brake lights, rear position lights and position lights etc. which are considered acceptable for this application.

3 Axle 52m Extendable Trailer for Sale in Tanzania

The 3 axle 52m extendable trailer for sale power unit consists of a small diesel engine that acts as the main prime mover. Other components include hydraulic tanks, control lines, piping, and hydraulic pumps. This device provides the hydraulic source for the hydraulic system of the trailer.

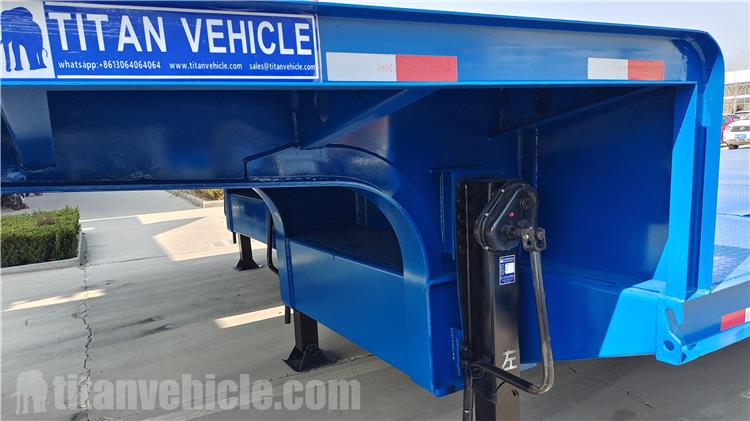

The assembly and connection of the gooseneck point is usually connected with the tractor saddle through the turntable, wedge and traction pin. The gooseneck part of the telescopic trailer is a hydraulic part, which is usually adjusted by the expansion and contraction of the hydraulic cylinder.

When the tractor turns, the steering cylinder is pushed, which is transmitted to the steering axle of the telescopic container chassis trailer through the hydraulic circuit. The steering mechanism for towing a 3 axle 52m extendable trailer is usually mounted on the gooseneck.

3 Axle 52m Extendable Trailer for Sale in Tanzania

You can learn about different types of extendable trailers (like 3 axle extendable trailer, 4 axle 56 meters extendable trailer, 6 axle 62 meters extendable trailer, 6 axle 62 meters trailer , wind blade trailer , 6 axle 62 meters trailer for sale). And the process, testing, packaging and customer feedback, etc.

Here is the Extendable Windmill Blade Trailer transportation details display video. This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
