3 Axle 40ft Container Chassis Trailer for Sale in Zimbabwe

This 3 Axle 40ft Container Chassis Trailer will sent to Zimbabwe. The customer bought the container chassis trailer for container transport transport is our regular customer. He bought the 40ft container chassis trailer from TITAN before. When the customer first bought trailers from TITAN, he was a little worried about the quality of the container chassis trailer and it can be damaged during the transportation. And luckily, the trailer was sent to Zimbabwe successfully, and the customer is satisfied with the container chassis trailer. This time, the customer sent an email to our sales, and he said that he wanted to modify the container chassis trailer drawing. Our factory modified the drawing according to his needs. And we sent some pics to him after we finished the 3 axle 40ft container chassis trailer, the customer was satisfied with it. We will ship the container chassis trailer to Zimbabwe as soon as possible.

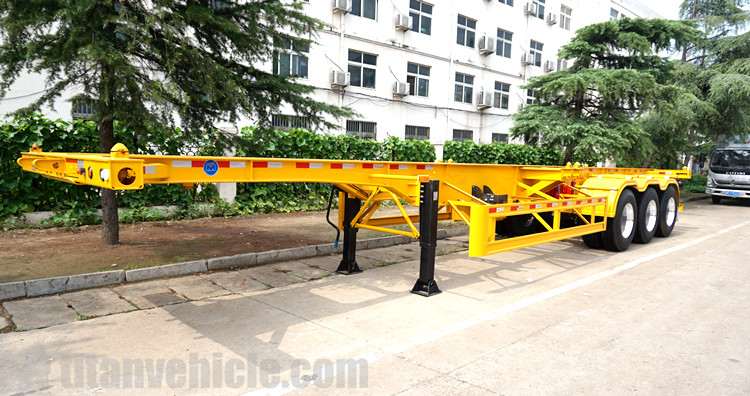

3 Axle 40ft Container Chassis Trailer

The importance of the development of container chassis trailer

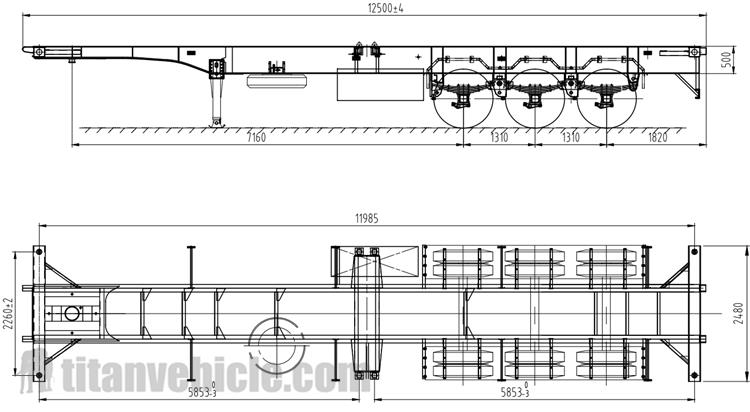

The frame diagram is made of longitudinal beam, horizontal bearing beam and front and back end beam development beam welded by electric welding. The longitudinal beam is made of high quality thick steel plate 16MN buried arc welded into I-shaped (the main key size is 450, 500). The horizontal bearing beam is made of high quality thick steel plate stamped into groove type, and the front and rear end beams are welded rectangular cross sections. In order to improve the bearing capacity of the container locking device, an integrated long horizontal bearing beam is set at the position of the whole clamping device in the middle part of the shipping container locking device. The difference between flat platform and skeleton pattern lies in the addition of frame and patterned road wood flooring.

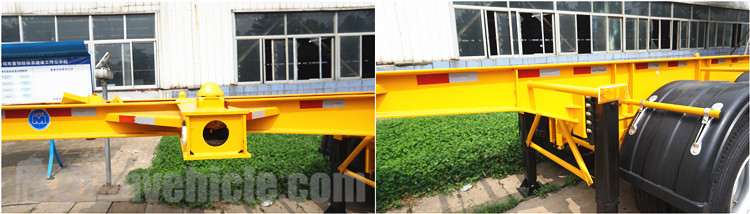

3 Axle Container Chassis

The frame of wooden series container chassis trailer is all shot blasting treatment, the whole frame is assembled and welded on the special precise positioning bench, it has reasonable structure, reasonable configuration, high compressive strength and beautiful appearance. The container constricting device is set on the frame. The container constricting device can load two standard containers of 40 inch size and 20 feet and two inches. The four container tightening devices at the front and back end are fixed and movable, while the middle container tightening devices are hidden. When loading the truck container, the locking device of the middle container can be lowered and the clamping device can be reduced below the arrival platform plan as required. Mechanical bearing device, mainly pedal bearing equipment, the key is factory equipped axle 12t, 20t; Fuhua 13T; Such as type.

Its function is when the traction device and the container chassis trailer off the equipment and the hanging bucket loose, used to support the road surface, to bear the front side load of the semi hanging truck. Supporting device supporting plate equipment has two kinds of single action type and linkage type, mainly composed of supporting key by supporting plate, screw transmission system mechanism, reducer and control handle and other structures. There are three kinds of suspension equipment: single-axle suspension and double-axle suspension and three-axle suspension.

Advantages

1. Specially used for the transportation of various containers. It can be used repeatedly for a long time and has sufficient strength.

2. Using containers to transfer goods can be directly loaded in the consignor’s warehouse and transported to the consignee’s warehouse for unloading. There is no need to remove the goods from the container for reloading when changing vehicles or ships midway.

3. It can be quickly loaded and unloaded, and it can be directly and conveniently changed from one kind of transportation tool to another.

4. It is convenient for the filling and unloading of goods to meet the individual needs of customers. According to customer needs, tooling guarantee, stable quality and reliable performance.

5. The system tie rod angle design is reasonable. In the process of frequent operation, the instant friction slip distance between the tire and the ground is reduced, which effectively reduces tire wear. At the same time, the tie rod can be adjusted to adjust the wheelbase to effectively avoid the phenomenon of partial running-in of the tire.

6. The rotation lock adds a limit device, which makes the transportation safer.

7. The handle of the turn lock is beautiful and easy to operate.

8. The front sealing frame turn lock operating handle is placed inside the front sealing frame to prevent the handle from damaging the accessories of the host.

9. The two-position three-way valve is added to the braking system to improve the safety of the parking brake.

You can download video, you can learn about different types of container chassis trailers, like 2/3/4 axle skeleton chassis for sale, 20/40ft  skeleton container, interlink container trailer, terminal trailer, and the process, testing, packaging and customer feedback, etc.

Skeletal Semi Trailers Video

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
