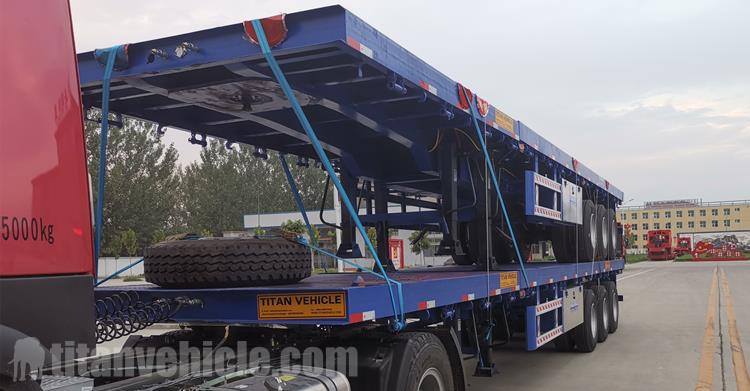

3 Axle 25M Extendable Flatbed Trailer for Sale In Chile

Chilean customers have bought TITAN extendable flatbed semi trailer for 5 years. He really like the design and quality of TITAN. This is why the customer has been cooperating with TITAN for 5 years. The customer has been operating a transportation company, mainly transporting bulk cargo such as long rails and pipelines.

Extension length: from 12.5 meters extend to 24 meters and also custom made extension length to meet different requirements of transport. Suitable for practically all long cargo, pipes rails and other equipment.

A strong trailer frame was made from T700 steel. All cross beams are completely reinforced. Heavy-duty type suspension. Strong container lock stand. Mechanical, airbag and bogie suspension to meet your demand transportation demand.

Three options of axle: mechanical leaf spring suspension, hydraulic axle suspension, and airbag suspension. The hydraulic steering system minimizes the turning radius, increases the flexibility of the whole trailer. Hydraulic modular trailers are options to replace the rear axle module, to increase payload capacity and maneuverability.

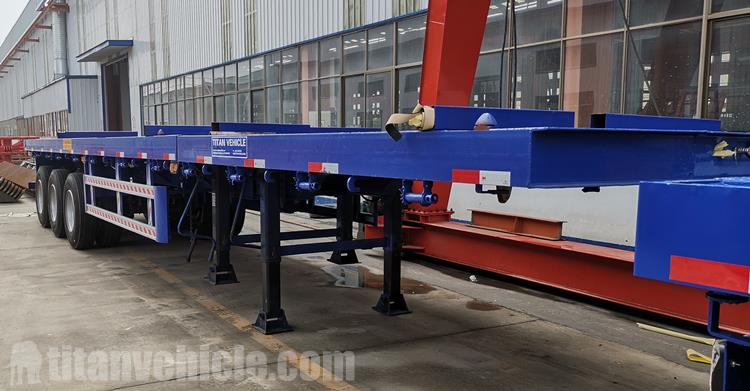

3 Axle 25M Extendable Flatbed Trailer for Sale In Chile

All wheels steerable:

When No-load, the telescopic beam can drawback to shorten the total length of the extendable trailer. Extendable telescopic beam/boom protects wind turbine rotor blade from any damages or distortions during logistic, it just performed like bracket holder of the rotor blade. Please go blade trailer if you need to know more info.

Sometimes we can use the 25 m extendable flatbed semi trailer to transport the windmill blades and transport other heavier and longer cargos.

As a manufacturer, we also produce a more robust version of the extendable telescopic beam. The unique design combines Goldhofer trailer hydraulic trailer, and the beam can also connect to other specialized trailers like Scheuerle trailer and Nicolas trailer. The beam has the function of connection between gooseneck and rear axles, also can bear weight on top of it.

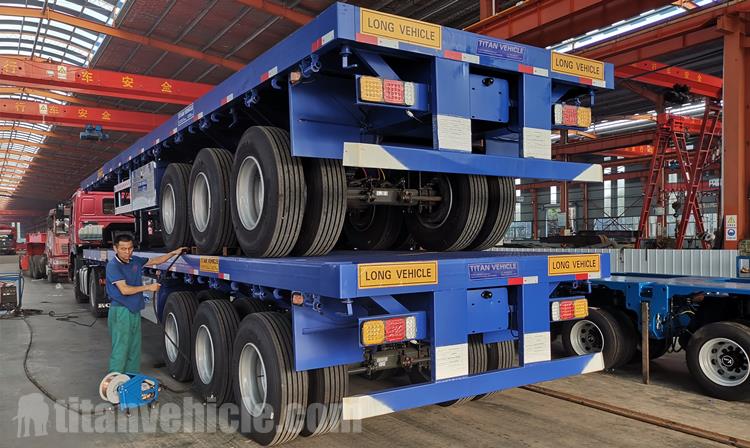

3 Axle 25M Extendable Flatbed Trailer for Sale In Chile

The telescopic beam can extend (stretch out) from 10 meters to 30 meters, and other customized dimensions are available.

25M extendable flatbed semi trailer configuration is a trailer mechanism that is designed and adapted to be towed through the use of a tractor truck traveling along a roadway. The extension on the trailer is done efficiently takes loads that may be of different lengths as the job will demand.

The mechanism of this type of trailer could include both a front and rear chassis disposed of in a telescoping connection where each of the chassis can be supported through the separate wheel and axle assemblies. These could be inclined in a side-by-side connection in the contracted condition of the mechanism.

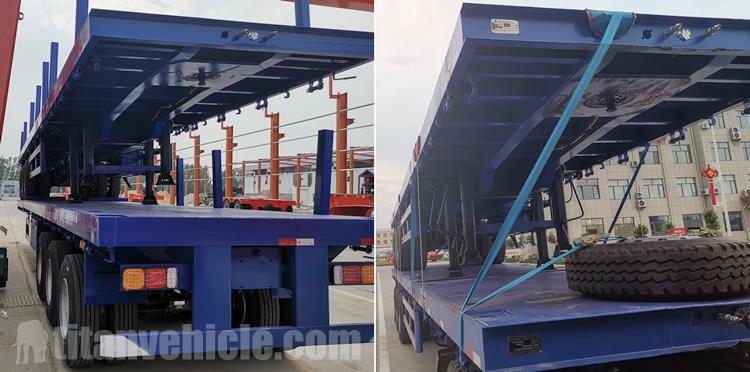

3 Axle 25M Extendable Flatbed Trailer for Sale In Chile

The disposition could be in spaced relation in the extended format of the mechanism. Both the rear and front chassis cooperate in such a way that the chassis are inclined in a largely rigid connection when the mechanism of the trailer is contracted and permissible articulation of the chassis frameworks about an overly horizontal axis following the extension of the trailer mechanism.

The devices forming up the locking mechanism are provided for purpose of securing the rear and front chassis frameworks in the assembly both in the extended and contracted status of the transporter mechanism.

The main components of the trailer are a power pack unit, gooseneck, wheel, supporting device, frame electrical system, hydraulic suspension, braking system, ladder and hydraulic system among others. They are vital in defining the role and operations of the 3 axle extendable flatbed semi trailer. These types of trailers can be configured in different ways: longitudinally or horizontally.

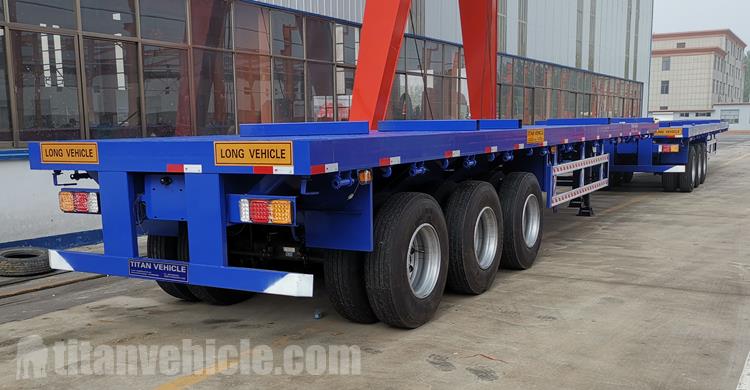

3 Axle 25M Extendable Flatbed Trailer for Sale In Chile

Suspension

Hydraulic, air, and mechanical suspension can be options according to different road conditions and specific project requirements.

Air suspension

Suspensions of wind blade trailer could use mechanical spring suspension, hydraulic suspension, or air bellow suspension. The air suspension would be best to protect the windmill blade from possible shock during transportation.

Hydraulic suspension

Hydraulic windmill blade is an extendable telescopic beam connected with a hydraulic modular trailer, axle numbers could be three or above to adapt different weights of the blades. In this case, the extendable flatbed trailer has a bigger steering angle compared to that of the airbag extendable flatbed trailer.

The hydraulic suspension blade trailer has a lower cargo platform height than that of the air suspension trailer, also the lifting stroke is wider. The hydraulic suspension has advantages so the cost is higher than the air and mechanical suspension blade trailer.

Mechanical suspension

The mechanical suspension is strong and at low cost, hydraulic suspension is suitable for heavier cargo.

You can learn about different types of extendable trailers (like 3 axle extendable trailer, 4 axle 56 meters extendable trailer, 6 axle 62 meters extendable trailer, 6 axle 62 meters trailer , wind blade trailer , 6 axle 62 meters trailer for sale). And the process, testing, packaging and customer feedback, etc.

Here is the Extendable Windmill Blade Trailer transportation details display video. This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
