3 Axle 90T Lowbed Semi Trailer will be sent to Madagascar

3 Axle 90T Lowbed Semi Trailer will be sent to Madagascar.

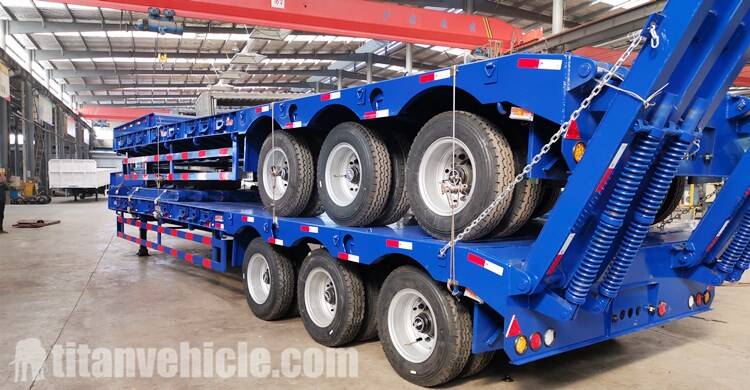

3 Axle 90T Lowbed Semi Trailer for Sale In Madagascar3 Axle 90T Lowbed Semi Trailer for Sale In Madagascar

It is the first time for a Madagascar customer to cooperate with TITAN, but the customer has 10 years of experience in importing semi trailers. Due to business problems with the supplier that the customer cooperates with, the customer needs to find a new supplier for long-term cooperation.

Customers found TITAN on Google and saw feedback from other customers using 3 axle lowbed semi trailer. The customer also needs 3 axle lowbed semi trailer to transport large equipment. Finally, send the inquiry. He had a very happy conversation with business Barry. The client said that he was too regretful and did not cooperate with TITAN as soon as possible. TITAN's latest technology and professional team factory moved him. After discussing the details, the 2 units 90T lowbed semi trailer was finally purchased.

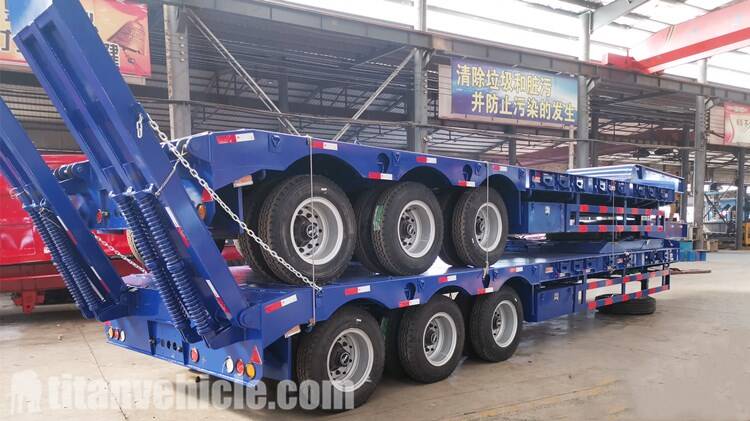

Trailer Truck BusinessTrailer Truck Business

Lowbed semi trailer is usually used to transport heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction machinery. And other heavy-duty cargoes, the lower the center of gravity, the better the stability and safety, the stronger the ability to transport super-high cargo and pass overhead obstacles.

Lowbed semi trailer also has a wide range of cargoes and is suitable for the transportation of various steel materials such as a variety of mechanical equipment, large objects, road construction equipment, large tanks, and power station equipment.

According to the number of axles and the size of the tires, the load of the low bed trailer is also different. The more axles, the greater the load. The load range is between 20-150 tons. Design the load-bearing surface of the frame according to user requirements to meet the transportation of various special goods.

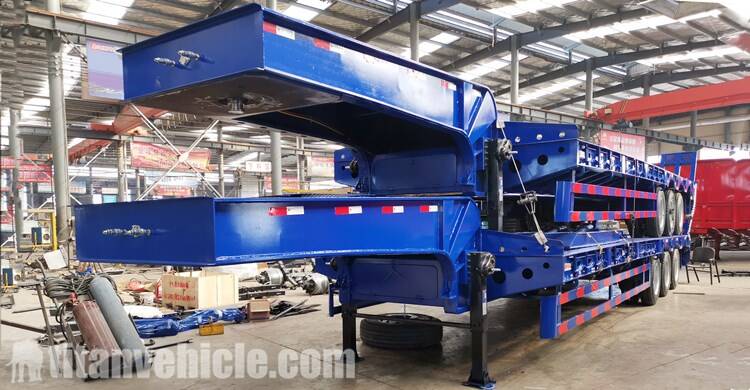

Package of Tri Axle Low Loader TrailerPackage of Tri Axle Low Loader Trailer

The semi trailer frame is mainly composed of beams-welded I-beams, supporting beams, connecting beams, side beams, locks, traction pin connecting devices, panels, etc. The low flat semi-trailer trucks are also widely used and suitable for a variety of machinery Transportation of various steel materials for equipment, large objects, highway construction equipment, large tanks, and power station equipment.



The main structure of lowbed semi trailer

1. The side beams are generally channeled steel or bending parts. At present, most trailers use channel steel, and there will be more side beams for light body hanging bending parts because the strength requirements are not too large. The supporting beam is a through beam, and now most of them are W beams.

2. The traction pin is an important component that connects the 90t low loader trailer to the tractor and bears the traction force and is connected to the traction seat. It is generally made of steel with a chromium alloy structure.

3. The general semi-trailer suspension is a non-independent steel stamping rigid suspension, which is composed of a series of leaf springs and suspension support to support the load and reduce the impact of the vehicle's cargo dynamic load. Due to the different uses of special vehicles, there are different requirements for the design of the suspension. There are four types of suspension commonly used: series-connected leaf spring balanced suspension, single-point suspension, air suspension, and rigid suspension.

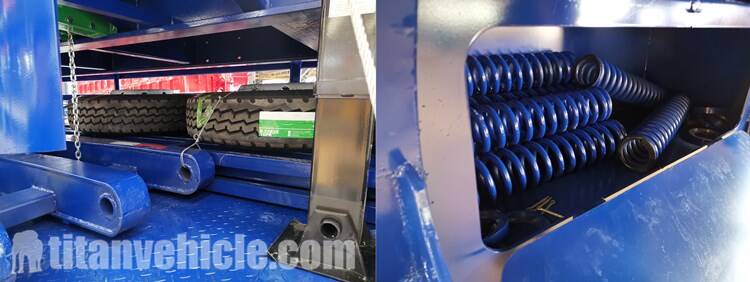

Details of 2 Units Low Bed TrailerDetails of 2 Units Low Bed Trailer

4. The electrical system of the semi-trailer is composed of seven-core sockets, cables, gas circuits, various lamps, etc. It is used for lighting, safety warning and gas supply for brakes.

5. The support device of the lowbed trailer is mainly used to support the trailer when it is detached, and is composed of legs and connecting brackets.

6. Other attachments on the semi-trailer include toolbox, spare tire frame, gantry frame, piles, etc. There are also some small accessories such as tight ropes and rope hooks that are very functional and can be selected according to the type of goods.

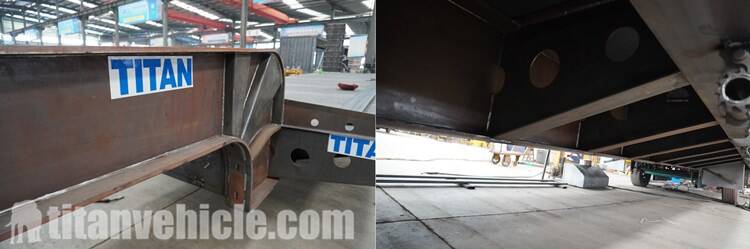

Product Process of Drop Deck TrailerProduct Process of Drop Deck Trailer



You can download video, you can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.

Lowbed Semi Trailers Video

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
