3/4 Axle Flatbed Trailer with Front Board will be shipped to Botswana

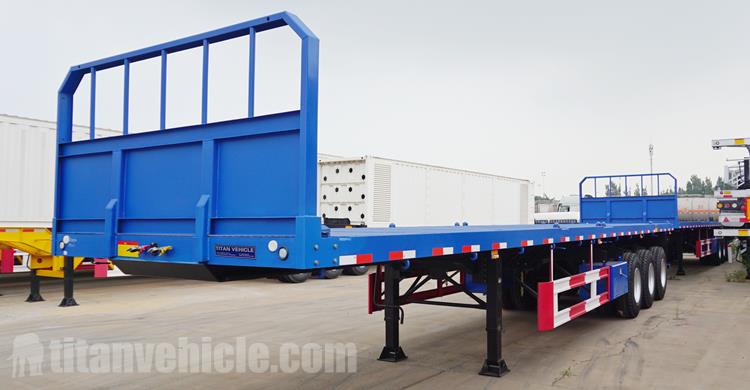

3/4 Axle Flatbed Trailer with Front Board for Sale In Botswana3/4 Axle Flatbed Trailer with Front Board for Sale In Botswana

Thank you very much for your trust. Botswana customer bought 3 axle flatbed trailer in November. He found sales manager again in December and wanted to buy an upgraded flatbed trailer. Because of the urgent task of the company, a 3 axle flatbed trailer could no longer meet the demand.

Therefore, the customer wants to transport bulk goods. According to the customer's needs, the 4 axle flatbed trailer with front board not only meets the customer's needs but also saves the customer's cost. The client is very satisfied with the design we gave him. Below are two flatbed trailers of the customer. They are being packaged and shipped.

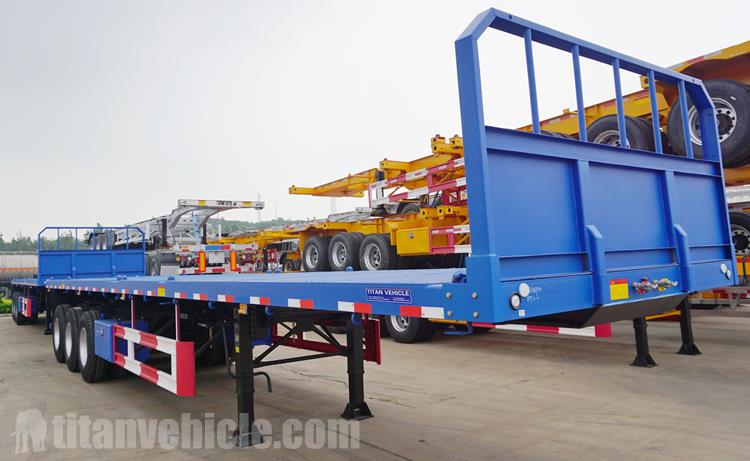

3/4 Axle Flatbed Trailer with Front Board for Sale In Botswana3/4 Axle Flatbed Trailer with Front Board for Sale In Botswana

TITAN 3/4 axle flatbed trailer with front board adopts high-strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

To make sure the service life of the semi trailers, all the spare parts we adopt are world-famous brands. Polyurethane paint, the 3/4 axle flatbed trailer with front board is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

3/4 Axle flatbed trailer with front board is designed for the transportation of products such as 20 Ft, 30 Ft, 40ft, 45 ft, container, loaded flat reck, open-top container. Also known as container carrier trailer. The steel plate clad on the chassis body provides a flat appearance.

The raised surface prevents the load from being moved. Available from 2 axles to 4 axles. Container corner connection and locks ensure load stabilization. It is also suitable for carrying 2 20 ft containers. The distance between the axles and the kingpin is adapted to the center of gravity. It has a capacity of 20 to 40 tons.

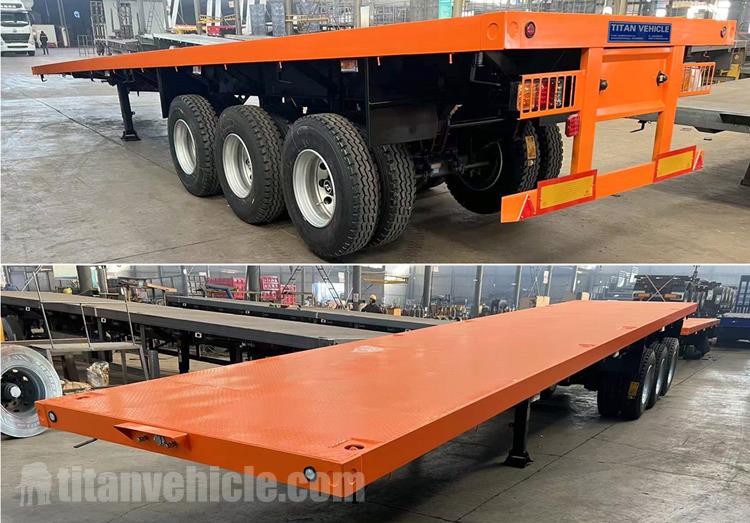

3/4 Axle Flatbed Trailer with Front Board for Sale In Botswana3/4 Axle Flatbed Trailer with Front Board for Sale In Botswana

Main Parts of Shipping Container Trailer

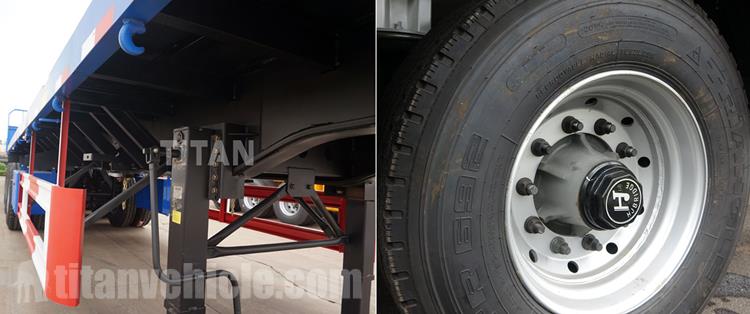

1. Suspension of 3/4 axle flatbed trailer with front board

Steel plate suspension is our common leaf spring, its full name is series-connected leaf spring balance suspension. It is mainly composed of leaf springs, suspension bearings (commonly known as lifting lugs), connecting rods, U-bolts and other parts. The longitudinal force of the car body falls directly on an axle. The biggest advantage of this kind of suspension is low price, good reliability and easy maintenance.

The trailer air spring itself is relatively light in weight, the friction of the air medium in the airbag is small, there is almost no noise during operation, and its life is 2-3 times that of leaf springs. However, when an air spring is used, a rod system that can transmit various forces and moments other than the vertical force must be provided, so the suspension structure is complicated; in addition, the air spring has strict requirements for sealing, and its cost is also high.

2. Kingpin of 3/4 axle flatbed trailer with front board

The 90 # traction pin represents the diameter of the traction pin is 90mm, and the material is mainly chromium alloy. The flatbed trailers for sale near me and the tractor are all connected by it. It is connected to the traction seat of the main vehicle and also bears all the traction. It is an important component.

At present, the traction pins on the market are mainly divided into 4 types, assembly 50, assembly 90, welding 50, welding 90, users should choose according to different models and actual use.

3/4 Axle Flatbed Trailer with Front Board for Sale In Botswana3/4 Axle Flatbed Trailer with Front Board for Sale In Botswana

3. Braking system

Brake air chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the vehicle.

Brake valve is used to control the braking of trucks or 3/4 axle flatbed trailers with front board. It is suitable for 3/4 axle flatbed trailer with the front board with a dual-line brake system, and parking or emergency brakes are air-braking brakes. It has the function of automatically causing the 20 ft flatbed trailer brake when the control pipe connection of the trailer brake system is broken or leaking.

4. 3/4 Axle flatbed trailer with front board support device

Commonly known as an outrigger. Using the principle of "standing timber jacking". Classification of outriggers: Single-acting outriggers are operated separately on both sides, there are two cranks, and each gear has a car gearbox.

Linked outriggers are made from both sides while operating. There is only one crank, which is composed of one gearbox and one without.

The main components of the outrigger are a two-speed gearbox, support sleeve, support rod, drive screw, and the support plate. The structure is very simple and the function is very important.

3/4 Axle Flatbed Trailer with Front Board for Sale In Botswana3/4 Axle Flatbed Trailer with Front Board for Sale In Botswana

You can learn about different types of flatbed semi trailer, such as 2 axle flatbed semi trailer,3 axle container semi trailer,4 axle 40ft flatbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.



This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
