Low Bed Trailer for Sale can carry heavy loads like construction machines dozers, tunnel machines, road construction machines and any other different kinds of heavy load machineries. The 100T Low Bed Trailer for Sale production from 2 to 10 axles and from 20 Tons up to 120 Tons with different kinds of specifications as per customers' demands or requests.

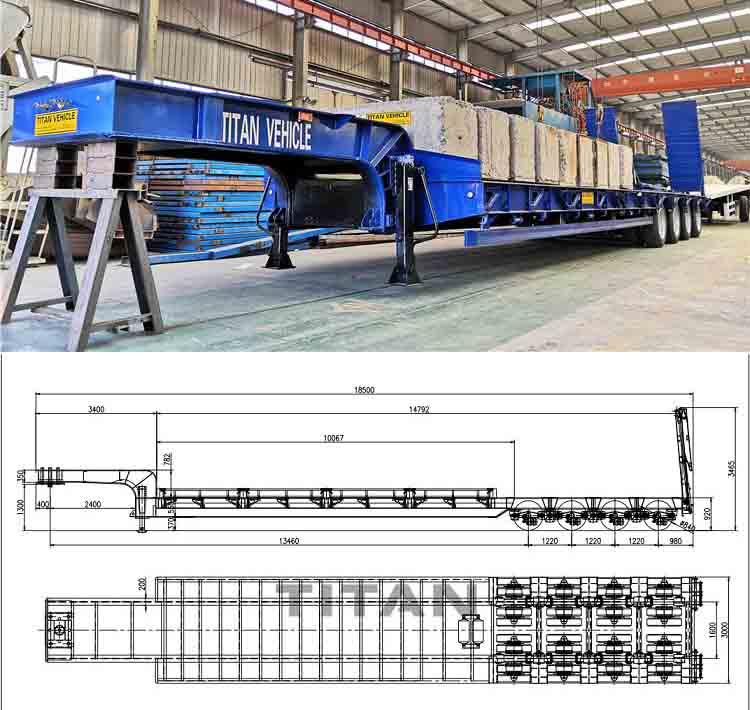

4 Axle Heavy Duty lowbed trailer dimension

Different types of Low Bed Trailer:

The entire cargo platform is straight and above the wheels. The upper space of the overlapping part of the tractor and the 100T Low Bed Trailer for Sale is fully utilized so that it has a large cargo platform area. This type of frame structure is relatively simple and easy to manufacture and is mostly used for super heavy trailers.

TITAN can also make different types of low bed trailer, such as extendabale lowbed trailer, which can be used to transport extra-long goods or wind blades. It can also be used as an ordinary Low Bed Trailer for Sale with multiple functions.

RGN Trailer(detachable gooseneck trailer) also known as a gooseneck lowboy trailer. The container low bed frame has a stepped shape, and the plane of the cargo platform is behind the gooseneck, so that the main plane of the cargo platform is lowered, which is convenient for loading and unloading and transportation of goods. Our lowboy trailer for sale has a detachable gooseneck design on the front, which avoids overturning the body when transporting heavy equipment and ensures the safety of the container low bed and the driver.

Concave beam type Lowbed Trailer for sale, the plane of the cargo platform is concave and has the lowest load-bearing plane. It is generally suitable for transporting large or ultra-high equipment.

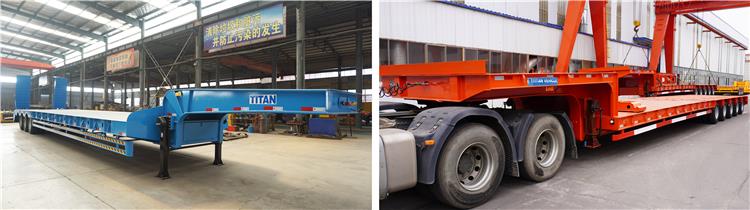

Different types of Low Bed Trailer

Low Bed Trailer for Sale buy tips:

it is important to ensure that your Low Bed Trailer operates at its optimal level at all times. This is only possible if you know how to conduct control of a low bed trailer. Quality control involves checking the performance of various components.

Welding inspection

Welding all the lowbed trailer for sale beams and plates is cumbersome. Many mechanics take short cuts in this process. Hence, you must be careful when inspecting the welded parts and joints.

All the 100T Low Bed Trailer for Sale welded parts should be smooth and uniform. Sometimes welding leave some rough surfaces because of heat deformation. Check all the joints for rough surfaces. Another thing to look out for when inspecting welded parts is cracks and penetration to adjacent beams.

If the manufacturer is not careful with the welding process, the welding machine can penetrate through the steel plate or cause cracks. Such deformations will reduce the strength of the beams.

Welding is the most important part of manufacture process. Welding Procedure Specification is a strict standard to keep the high quality of the trailers.

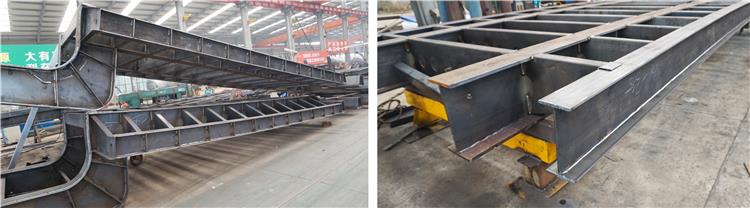

Heavy Duty 100T Low Bed Trailer frame

Fastener inspection

The main reason for fastener inspection is to ensure that all fasteners are tight. A fastener can be loose if it was not fixed properly or if the dimensions are wrong.

Hence, you need to determine if the fastener requires to be tightened or replaced with another fastener with the right measurements. You need tight fasteners for the strength and stability of the trailer especially when it fully loaded.

Low Bed Trailer for Sale Load Test

Manufacturers give the loading capacity of each trailer but you cannot rely on that information alone. You need to test if the trailer can handle the maximum load as specified by the manufacturer.

Inspect the process of loading the cargo on the lowbed trailer for sale to ensure that the ramp is working properly. If the Low Bed Trailer for Sale has the loading capacity as specified, it should be easy to load and transport heavy cargo with the trailer.

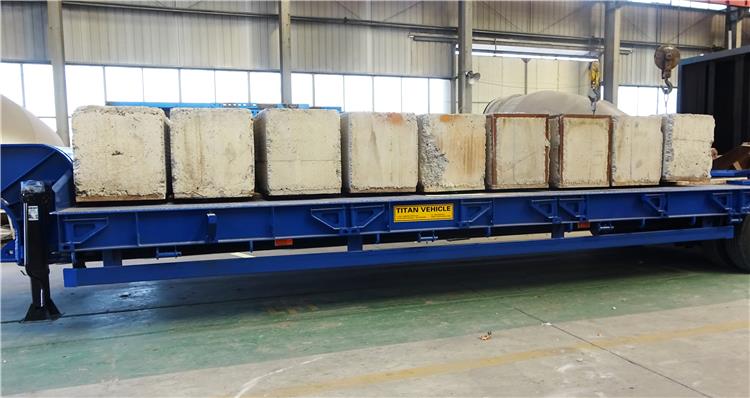

low bed trailer for sale load test

Inspecting Whether The Surface Is Slick

The state of the surface of a trailer depends on the polishing and sandblasting processes. Inspecting the surface before buying a 100T Low Bed Trailer and while maintaining is important because of rust.

Ensure that the surface is rough to reduce the rate of rust. The surface is likely to wear out and rust if it is slick. Whether the surface is rough or slick should the effectiveness of the blasting process.

You can tell if the manufacturer followed the right process by inspecting the surface.
