How the 38000 Ltrs Palm Oil Tanker Trailer Air Suspension Works

The working principle of the 38000 Ltrs palm oil tanker trailer air suspension is to use an air compressor to form compressed air and send the compressed air to the air chamber of the spring and shock absorber to change the height of the vehicle.

There are vehicle height sensors near the front and rear wheels. According to the output signal of the vehicle height sensor, the microcomputer determines the change of the vehicle height, and then controls the compressor and the exhaust valve to compress or extend the spring, thereby reducing the pressure. vibration effect.

The air suspension gave the 38000 Ltrs palm oil tanker trailer more spirituality. When you are driving at high speed, the suspension can be hardened to improve the stability of the body; when driving on uneven roads at low speed for a long time, the control unit will soften the suspension to improve the comfort of the sub.

Generally speaking, the content of 38000 Ltrs palm oil tanker trailer air suspension control includes height, the damping force of shock absorber, spring elasticity coefficient and so on.

1. The control of the vehicle height: divided into three types: standard, raised and only the rear wheel is raised. The damping force control of the shock absorber is divided into three gears: low, medium and high;

2. The elastic coefficient of the air spring is divided into soft and hard. The 38000 ltrs palm oil tanker trailer air suspension has irreplaceable advantages over the previous ordinary suspension, so with the popularization and improvement of this technology, it will inevitably be more widely used in the automotive industry in the future.

Of course, just because you have a lifting chassis does not mean that you cannot grind the chassis, it depends on the road conditions. There is no certain standard for the sports chassis, but the stable handling of this chassis is better, which can be easily understood. It is good for sports, but the comfort of sports chassis is generally poor. Independent suspension is the wheel on each side.

38000 Ltr Palm Oil Tanker for Sale Price, Dimension, Configure, Specification, Capacity, Drawing

38000 Ltrs Palm Oil Tanker Trailer Support Device Knowledge Popularization

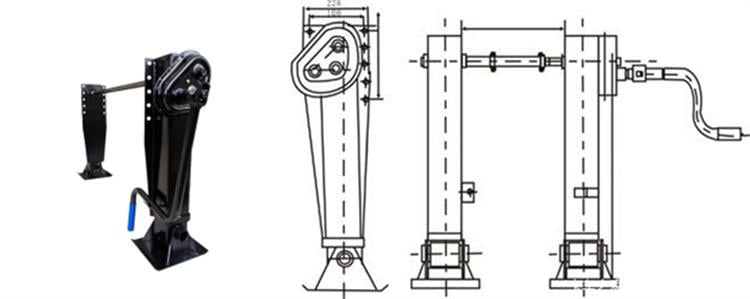

Knowledge popularization - support device, commonly known as an outrigger. It utilizes the principle of "standing on top of the jack" and is located at the front end of the frame of the 38000 Ltrs palm oil tanker trailer, which is used after the 38000 Ltrs palm oil tanker trailer is separated from the tractor.

The outriggers are generally composed of two left and right outriggers that are manually operated, two-speed, single-action, and linked. But now there is also a motor device installed on the original leg that can be used as an electric motor.

The main components of the outrigger are a two-speed gearbox, a support sleeve, a support rod, a transmission screw and a support plate. The structure is very simple and the function is very important.

Explanation of the double speed of the outrigger: The rocking outrigger has two speeds, which are suitable for no-load and heavy-load respectively. The first gear is slow, which is to pull the joystick out and shake it, which is suitable for heavy loads. The other gear is fast, which is the gear that pushes the rocker lever into the gear box, and the rocker speed is faster for when the outriggers are retracted or when there is no load.

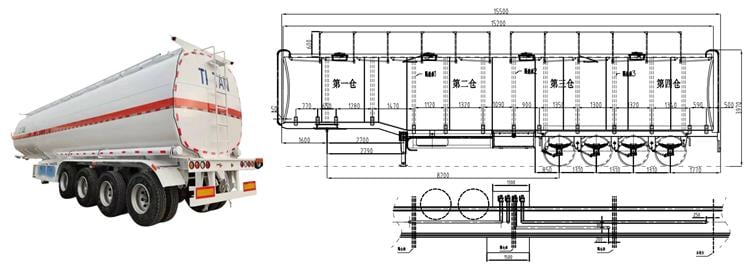

38000 Ltr Palm Oil Tanker for Sale Price, Dimension, Configure, Specification, Capacity, Drawing

Precautions for operating outriggers:

1. You can use the fast gear or the slow gear when there is no load. However, it is strictly forbidden to use fast gear when overloading

2. When detaching from the tractor, pay attention to whether the ground is flat, and if necessary, pads should be placed under the support plate to ensure that the support surface is basically level and consistent.

3. When the outriggers are retracted, the rocker must be retracted to the original card position. In order to prevent the "kick" phenomenon from damaging the outrigger when walking.

Maintenance matters:

1. Always check the fastening of the outrigger bolts to prevent loosening and loss of support.

2. After one year of use or 30,000 kilometers, lithium-based grease should be added to ensure the normal use of gear parts.

Don't underestimate and ignore the importance of outriggers, the basic accessories of any 38000 liters palm oil tanker trailer have simple outriggers. In addition, the outriggers need care and maintenance. Frequent maintenance of the outriggers will also make the car run more smoothly, and ensure the safety of cargo and trailers when loading and unloading the tractor.

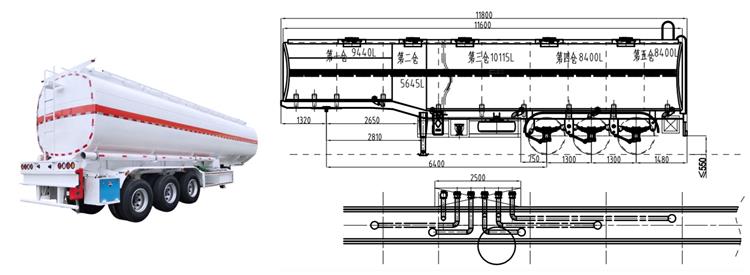

38000 Ltr Palm Oil Tanker for Sale Price, Dimension, Configure, Specification, Capacity, Drawing

How to Separate 38000 Ltrs Palm Oil Tanker Trailer

Try to choose a flat and solid ground to separate the 38000 Ltrs palm oil tanker trailer from the tractor. If the foundation is loose or the asphalt pavement is separated, thick wooden blocks should be placed under the base of the lifting legs to prevent the reconnection from sinking under its own weight.

Pull the tractor handbrake to make the brakes safe.

Turn off the disconnect switch on the tri axle palm oil tanker trailer air fitting on the tractor, then remove the tractor air fitting from the 38000 Ltrs palm oil tanker trailer.

Unplug the cable connection of the 38000 Ltrs palm oil tanker trailer. Operate the lifting legs so that the base of the lifting legs touches the ground, then downshift to lift the oil tanker trailer some clearance in order to exit the tractor.

Pull out the tow base, unlock the lever, and open the lock block. Pull the tractor forward slowly to separate the traction pin from the towing seat, and separate the semi-trailer from the tractor.

Check whether there is any abnormality in each part of the separated semi-trailer, unscrew the drain valve at the bottom of the air storage tank, and discharge the water in the air storage tank.

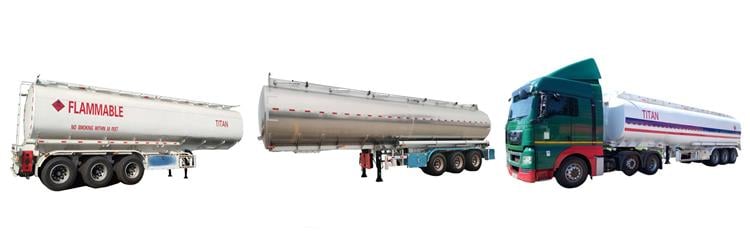

38000 Ltr Palm Oil Tanker for Sale Price, Dimension, Configure, Specification, Capacity, Drawing

You can learn about different types of fuel tanker semi trailers (like 3 axle fuel tanker, 4 axle storage tanker trailer, stainless steel tanker trailer, acid tanker trailer, fuel tanker with flatbed trailer, fuel tank Full trailer). And the process, testing, packaging and customer feedback, etc.
