3 Axle 60 Ton Fence Cargo Truck Trailer for Sale

TITAN Truck Trailer | 2021-07-14



1. What is a fence truck trailer?

2. Details of fence cargo truck trailer

3. Production process of fence semi trailer in TITAN factory

4. Fence cargo truck trailer price & video



1. What is a fence truck trailer?

The fence truck trailer use to load a wide range of products and materials, like sand, bags, poultry, vegetables, fruits, clothes, appliances, and other daily necessities. Also the some bulk cargo, very widely used in the transportation industry. Fence cargo trailers can also be used to transport sheep, cattle and other animals. The semi trailer with removable walls can be added with a container turn lock to transport the container.

Fence cargo semi trailer has a stake structure design. We have 2/3/4 axles fence trailer for sale, and load capacity has 30/40/60/80/100 tons for your choice. Customizable color and side wall height.

TITAN 3 axle fence cargo truck trailer adopt advanced intelligent manufacturing equipment such as finite element analysis, calibration design, laser cutting machine, robot welding, etc., and strictly process requirements from the design source to the entire process of product manufacturing. So as to ensure that every trailer delivered to the customer is a high-quality and qualified trailer.

TITAN fence cargo trailer for sale adopts the fully automatic KTL electrophoresis + powder spraying coating process, and it is fully coated without dead corners. The automatic production coating is more uniform, the box board and the warehouse fence area are coated, rust-proof and durable, and green Environmental protection.

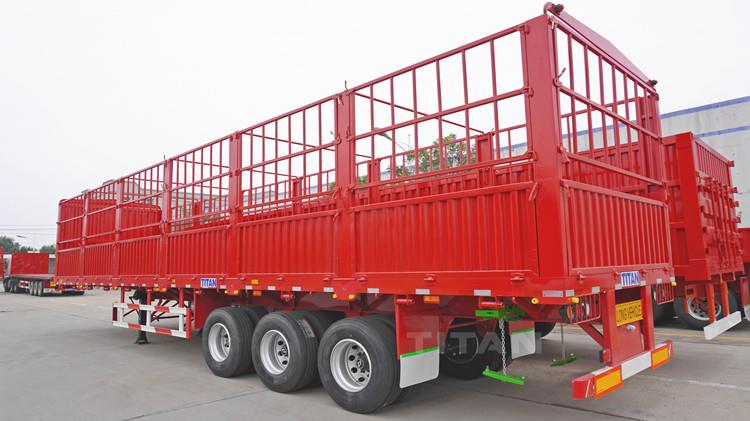

3 Axle 60 Ton Fence Cargo Truck Trailer for Sale

3 Axle 60 Ton Fence Cargo Truck Trailer for Sale



2. Details of fence cargo truck trailer

1. The 60 ton fence truck trailer model and fence structure design process is combined with the user's cargo category, reasonable design, to fully reduce the weight of the carriage under load conditions, the structure is simple and applicable, and it is convenient to disassemble, reduce investment costs for users, and create more profit value.

2. The frame adopts a space frame structure formed by welding longitudinal beams and integral through cross beams. It can balance the strength, rigidity, and toughness of the frame, with strong bearing capacity and no deformation.

3. It adopts a new type of suspension system with high strength and strong impact resistance. The load of each axle is balanced, and the system tie rod angle is reasonably designed to reduce the friction slip distance between the tire and the ground and effectively reduce tire wear during frequent bumps. Under the same road conditions and load capacity, fuel consumption per 100 kilometers can be reduced by more than 1.2 liters.

4. Imported brake pads and implanted wear alarm device. Effectively guarantee the braking performance of the vehicle during operation.

5. The service life of the TITAN 3 axle fence cargo truck trailer brake can reach 1.5 million kilometers in 10 years. Brake discs containing alloy elements, anti-cracking, anti-wear and high temperature resistance.

6. The use of low temperature resistant brake air pipe makes driving safer. The 3 axle 60 ton fence cargo semi trailer wiring harness uses 7-core wiring harness, without any grounding treatment, the lamp can work normally, the use failure rate is low, and it does not need to be replaced for life.

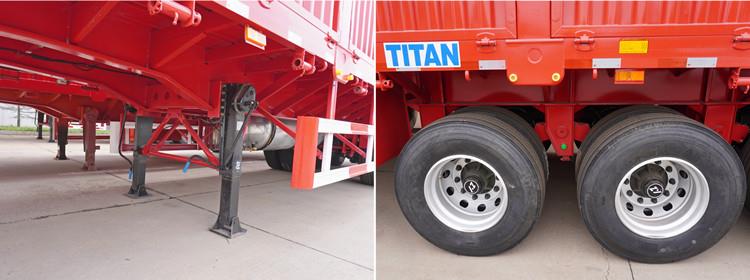

3 Axle 60 Ton Fence Cargo Truck Trailer for Sale

Details of 3 Axle 60 Ton Fence Cargo Truck Trailer for Sale



3. Production process of fence semi trailer in TITAN factory

1. Stage of cutting steel sheet material

According to the drawings of each part produced by the design department, each part is cut out with a CNC cutting machine, such as beam webs, reinforcement plates, standard small accessories and so on.

2. Submerged arc welding beams, beams fixed

The second step is to fix the cut web and the upper and lower wing plates to weld points, and then weld the beam by submerged arc welding.

This step is very important. Both the fixing of the beam and the submerged arc welding are very demanding. If the technical process is not feasible, the beam will have problems. Can the fence cargo semi trailer be okay if something goes wrong?

3. Opening, calibration beam, through beam

First cut out the web of the beam to cut out U-shaped holes through which the beams can pass, and then fix the welded I-beams in parallel. The result of comparing the beams is very important. If two I-beams have large parallel errors, very serious tire wear will occur.

4. Connect side beams, welding king pins

At this time, the main beam is basically formed, only the side beams are welded to form the frame structure. And the traction pin traction plate is welded to the position required in the contract, the welding process is required to be high, otherwise the fence semi trailer will be skewed.



3 Axle 60 Ton Fence Cargo Truck Trailer for Sale

3 Axle 60 Ton Fence Cargo Truck Trailer for Sale in Factory



5. Welding frame, welding suspension

At this time, the welding suspension must strictly control the size and maintain the squareness, otherwise it will cause tire wear.

6. Lay the bottom plate and removable wall

That is, the bottom plate and removable wall is fully welded on the frame. There is nothing to say at this step.

7. Frosted and painted

Frosting is the previous step of spray painting. Some manufacturers without shot blasting workshops will blow and polish the welding slag with high pressure gas at this stage.

Spray paint is usually sprayed in a well-ventilated shed. If you want to spray beautifully, you must first look at the coating and the technology of the technicians, but TITAN will spray very beautifully. Basically, you don’t have to worry about this. We will be very attentive!

8. Installation the bottom accessories and tires

After spray painting is completed, the bottom travel system is installed, and the assembled bottom is simply mounted and then precisely adjusted.

It should be noted that the tires air pressure at the factory is generally not the standard air pressure. You must confirm it again after you buy the fence cargo truck trailer.



You can download video, you can learn about different types of fence semi trailer for sale(like 3 axle fence trailers, 4 axle stake trailer and fence full trailer).And the process, testing, packaging and customer feedback, etc.

Side Wall Semi Trailers Video



This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.

trailer stakes video
