Djibouti customers found us on facebook. The customer later stated that he had followed us before because he had seen our lowbed semi trailer.

Titan can customize a suitable semi-trailer according to customer requirements, so this is why our customers find us. This customer is operating a transportation company, and as the company expands, so does the customer's needs. So the customer ordered a large number of car carrier trailers from us.

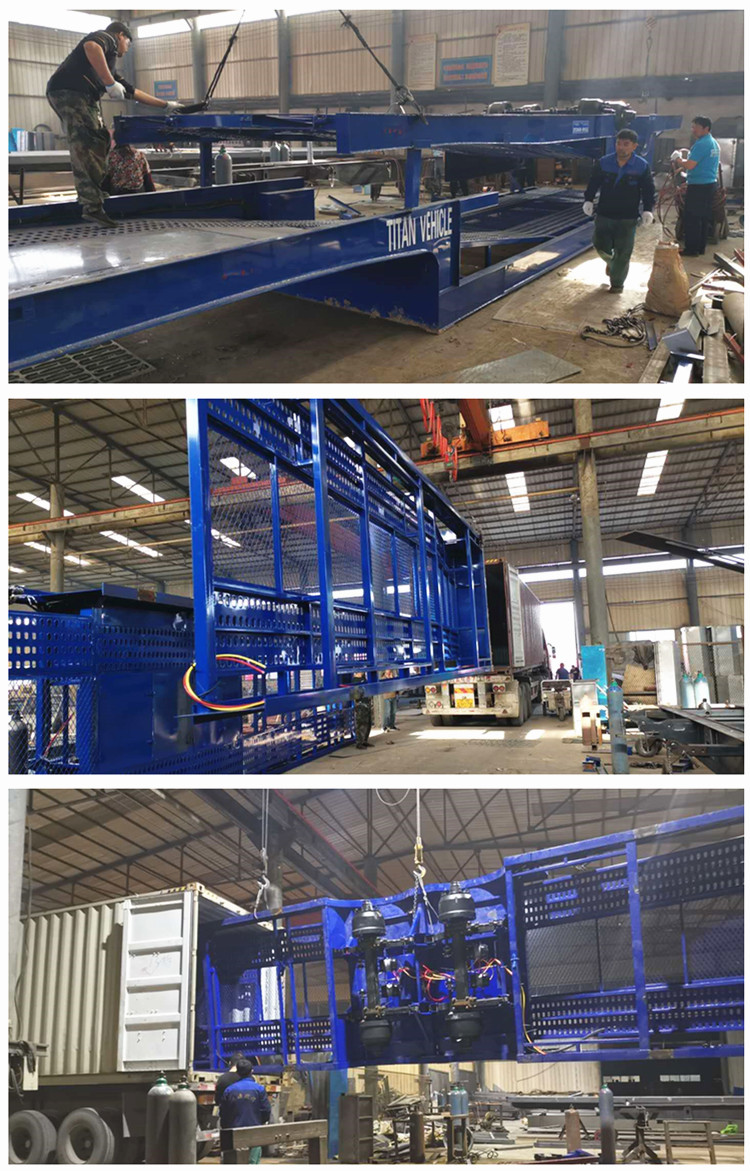

The picture below shows that we are packing in the factory and preparing to ship.

Here are some knowledge of car hauler, can help you learn it.

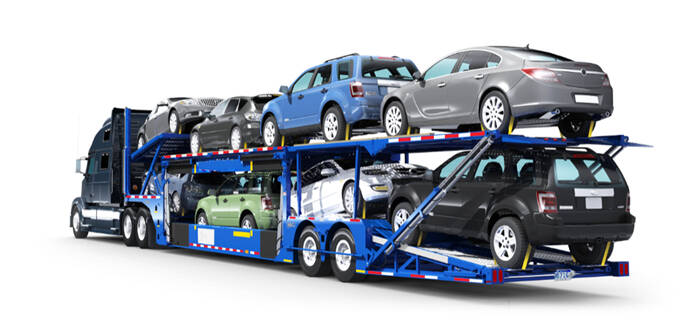

Car hauler trailer refers to a vehicle that transports cars.

The car carrier can be made in different lengths according to customer needs, the frame is welded I-beam, and the entire body is fully automatic submerged arc welding and carbon dioxide gas shielded welding. After the welding is completed, shot peening is performed to eliminate the welding stress and improve the adhesion of the paint surface, so that the quality is stable and the appearance is beautiful.

The upper chassis can be divided into two to three pieces, and the height can be adjusted by hand hoist and oil cylinder. The car hauler trailer for sale is equipped with a tool box, a spare tire frame, and a drip brake system is installed to improve the safety of vehicle transportation.

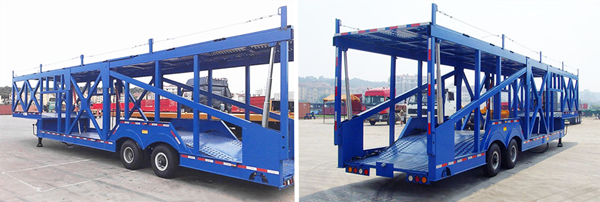

TITAN 2 axle 8 car hauler trailer for sale

Main structure of car hauler trailer:

The structure of the car is generally divided into a lower chassis, an upper chassis, side panels, front panels, rear doors, top panels, accessories, hydraulic system, suspension system, air brake system, circuit system, support device, wheel cooling system, etc.

1. The car is a double-layer loading platform structure. The upper loading platform can be lifted up and down under the action of the lifting device to facilitate loading. The lifting device is configured according to different needs, and can be divided into three types: hydraulic cylinder direct lifting type, pulley wire rope pulling lifting type and hand hoist hanging type.

2. For the two-axle twin-tire car, there are 1 manual springboard on the left and right of the gooseneck step at the front of the lower chassis, a movable frame for oil cylinder lifting in front of the rear axle, and 1 manual on the left and right of the rear axle The springboard and the rear tail are designed with pumping ladders and climbing ladders. Rear. The rear of the upper chassis is designed with a pumping ladder.

3. In order to prevent the jumping of the upper chassis, a rope tightener is provided to pull the upper chassis and the lower chassis.

4. About the underframe mask. The bottom frame is equipped with a mask in the middle, and the towing pin (towing vehicle tire)

And under the perforated plate at the rear axle. The lower chassis and the rest of the upper chassis are not masked.

TITAN 2 axle 8 car hauler trailer for sale

Main configuration of car hauler trailer for sale:

1. Standard configuration

Car with total length ≥15m, car tire limit frame, 32, car tire tightener 32; car with total length <15m, car tire limit frame, 24, car tire storage 24 tighteners.

2. Limitation and tightening of commercial vehicles

The car hauler must limit and fasten the loaded commodity vehicle before driving after loading the vehicle to avoid the vehicle jumping during driving and ensure the safety of the vehicle during driving.

There are two ways to fix the vehicle according to the form: one is the wheel fixing method, and the other is the frame fixing method.

3. Hub cooling device

Standard configuration: without wheel cooling device (although the actual vehicle is equipped with a water tank)

4. Chain hoist

The chain hoist is used to lift the upper chassis, the standard configuration is 1t, 2 pcs. For vehicles with full hydraulic lift, the chain hoist is not equipped.

5. Spare tire frame

The spare tire frame adopts door structure. That is, two bolts are used to fix the spare tire on the door. Two door-type spare tire frames are standard.

If you want more information about our semi-trailer, please click "Car Carrier Trailer".

And you can also look at other articles and videos on our website.
