Tri Axle 60 Tone Lowbed Trailer for Sale In Benin

Benin customer ordered this 60 tone lowbed trailer. We received feedback from the factory that his 60 Tons lowbed trailer has been produced and is undergoing load testing.

Before purchasing this 60 tone lowbed trailer, the customer compared 5 factories including us. After a series of comparisons, the customer finally chose us.

The 60 tons lowbed trailer is also widely used and is suitable for transporting various mechanical equipment, large objects, road construction equipment, large tanks, power station equipment and various steel materials.

It is important to ensure that your 60 tons lowbed trailer is always operating at optimal levels.

Tri Axle 60 Tone Lowbed Trailer for Sale In Benin

All welded parts of 60 tone lowbed trailer should be smooth and even. Sometimes welding will leave some rough surfaces due to thermal deformation. Check all joints for rough surfaces. Another thing to look out for when inspecting welded parts is cracks and penetration in adjacent beams.

The main beam of TITAN 60 tone lowbed trailer is made of Q460C high-strength structural steel. The yield strength of Q460C steel is ≥620Mpa, which is more durable and stronger than ordinary steel. Its carrying capacity is 5 times that of a trailer made of Q345 steel.

The main beam of TITAN 60 tons lowbed trailer adopts a height of 500mm and a thickness of 14mm. The thickness of the upper plate is 22mm, the thickness of the lower plate is 22mm, and the width of the upper and lower plates is 220mm.

Tri Axle 60 Tone Lowbed Trailer for Sale In Benin

The 60 tone lowbed trailers from other factories use Q345 steel main beams. The width of the upper and lower panels is 140mm. The frame carrying capacity is 27% lower than that of TITAN.

The side beam adopts an "H" shape design, which is welded with T700 high-strength steel. The design is H-shaped, with a height of 300mm, a width of 140mm, and a thickness of 8mm. Its load-bearing capacity is twice that of other steel materials and it will not deform after ten years of use. The anti-turbulence capability is increased by approximately 3 times.

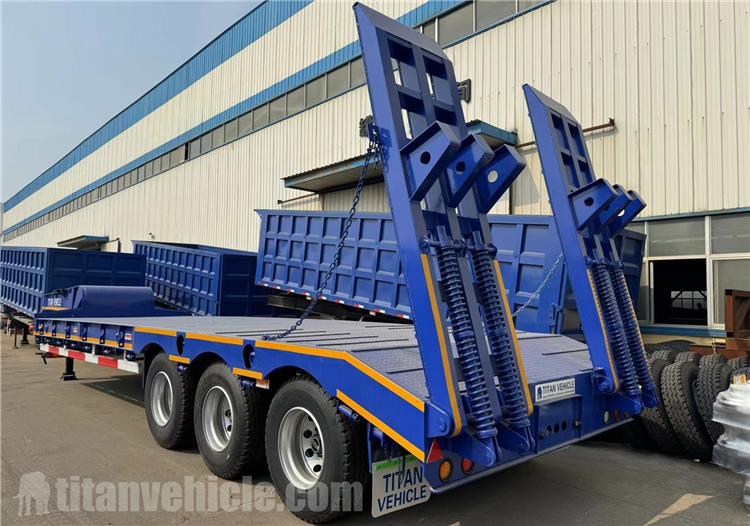

The 60 tone lowbed trailer for sale ramp is welded with high-strength steel plate H60 steel, which has strong load-bearing capacity and effectively ensures that the weight of excavators or other heavy equipment can pass through the spring ramp without deformation or damage.

Tri Axle 60 Tone Lowbed Trailer for Sale In Benin

The 60 tons lowbed trailer ramp adopts four-in-one high-strength board, which is high in strength, durable and non-deformable. Using high-elastic double spring climbing ramp, ordinary people can easily lift it with one hand, making the operation more convenient.

The service life can reach more than 5 years. Other factories use channel steel welding, which is easy to deform and collapse.

Tri Axle 60 Tone Lowbed Trailer for Sale In Benin
