Different Parameters, Different Price. Price Reference Only.
The wind turbine blades can be fixed to the rotating platform, and the rotating platform itself can rotate 360 degrees, and the fixing device itself can also rotate.
When in use, the wind turbine blades can be fixed to the rotating platform, and the rotating platform itself can rotate 360 degrees, and the fixing device itself can also rotate. When encountering complex road conditions that are difficult to pass directly, the blades can be rotated to any one The angle suitable for passing greatly increases the passing performance of the vehicle and makes the wind power transportation safer and more convenient.
In order to solve the instability of the vehicle's center of gravity caused by the longer blades during rotation, a counterweight box is designed in the opposite direction of the blade installation position. Ballast can be added as needed, and the distance between the counterweight box and the slewing platform can also be hydraulically used as needed. The cylinder is adjusted to avoid the risk of overturning due to the unbalance of the center of gravity of the whole vehicle caused by the transportation of long blades.
Wind Blade Trailer for Sale in Vietnam

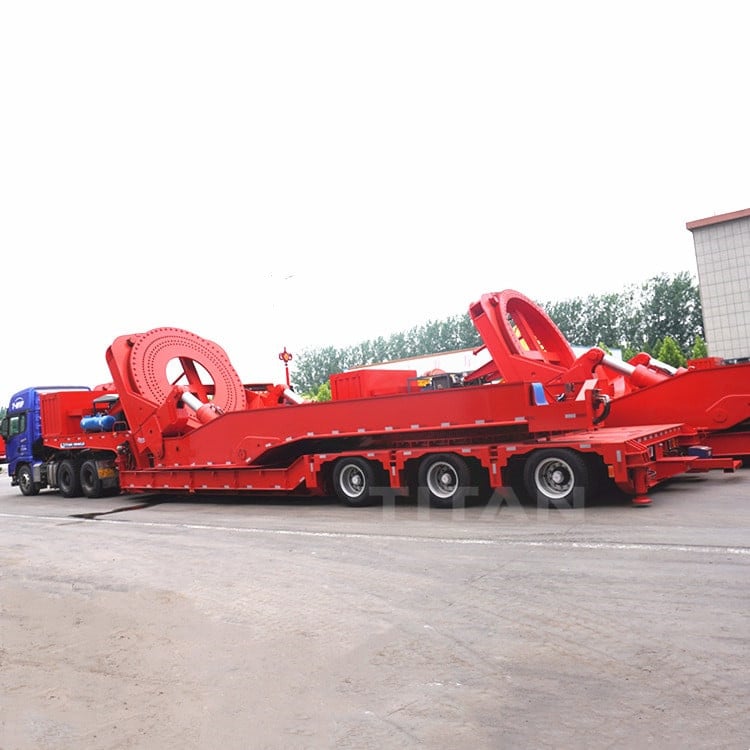

Wind Turbine Blade Trailer
Brand: TITAN Adapter trailer for 80m wind turbine blade transportation

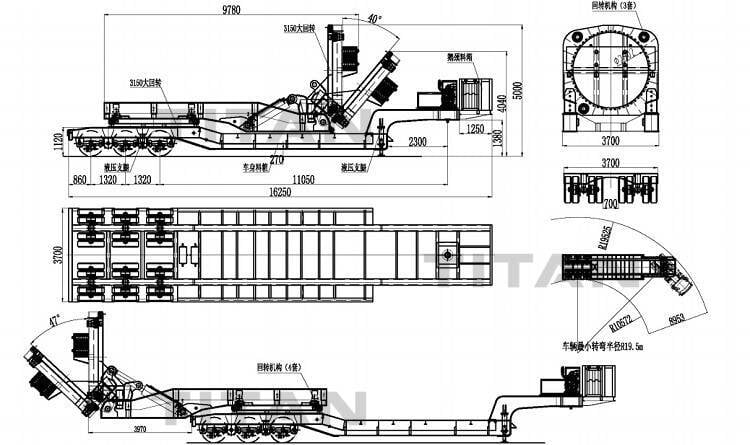

Dimension: 16250mm*3700mm*5000mm
Loading capacity: 23.5 Tons
Axle: 3 lines 6 axles
Max rotation angle: 360°
Hydraulic station: 40KW Four-cylinder Diesel Engine

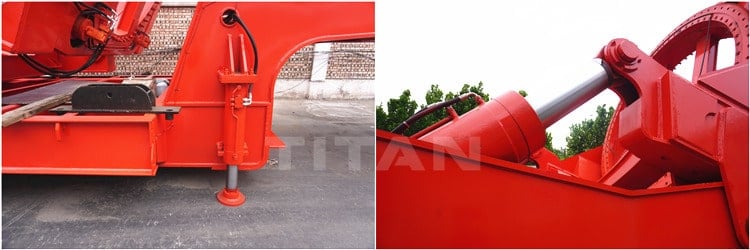

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher
Transportable wind blade specification: 121-155 model
Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16
1. These type of trailers are used to transport turbine blades on mountain roads and curved roads as well.
2. Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.
3. The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.
Through this video, you can learn more details about wind blade trailer , wind turbine blade trailer , wind blade trailer for sale , wind blade trailer price , etc.
If you want to know more types of wind blade trailers, please click here "Wind Blade Trailer" to watch the video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
