At the rear of the 6 axle windmill blade trailer for sale there is a turntable attached to the work platform. Its main function is to obtain better stability when the trailer is turned, and it is not easy to roll over.

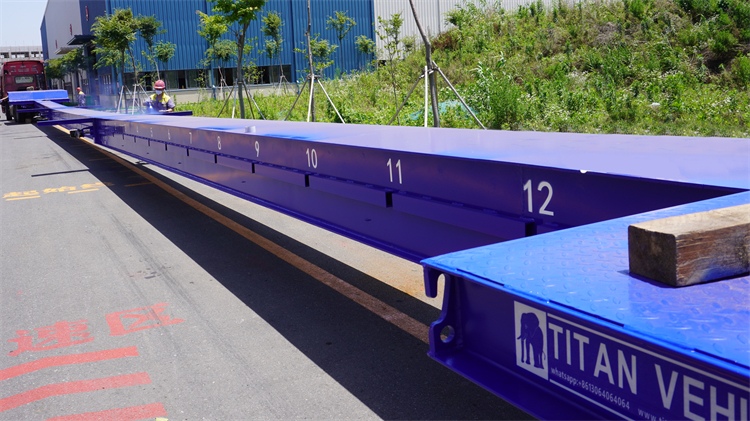

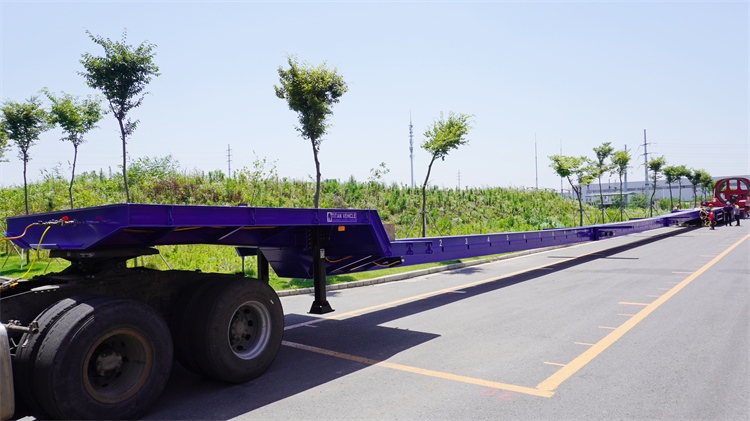

The TITAN wind turbine trailer is specially designed to transport blades on ordinary roads. The work platform of this wind turbine trailer can be extended more than 3 times its own length, which can be well used to match wind blades of different lengths.
6 Axle Windmill Blade Trailer for Sale | Wind Blade Transportation | Wind Blade Trailer
6 Axle Windmill Blade Trailer for Sale | Wind Blade Transportation | Wind Blade Trailer
6 Axle Windmill Blade Trailer for Sale | Wind Blade Transportation | Wind Blade Trailer
6 Axle Windmill Blade Trailer for Sale | Wind Blade Transportation | Wind Blade Trailer
6 Axle Windmill Blade Trailer for Sale | Wind Blade Transportation | Wind Blade Trailer
6 Axle Windmill Blade Trailer for Sale | Wind Blade Transportation | Wind Blade Trailer
6 Axle Windmill Blade Trailer for Sale | Wind Blade Transportation | Wind Blade Trailer
Steel Material: HG60 high strength steel material
Dimension: 24,150*3000*1300mm
Extension length: 14,500+14,500+9,000mm
Loading capacity: 80 tons
Platfrom thickness: 5 mm
Power pack: 12Kw diesel engine
Axle: 6 steerable axles, An brand
Turntable steering: Suspension Leaf spring suspension

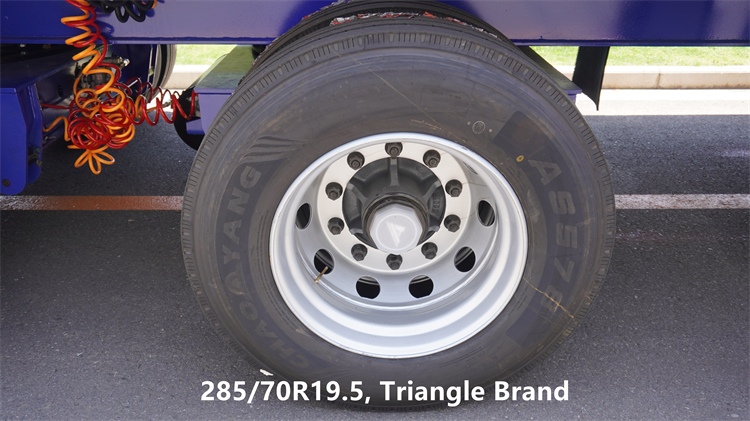

Tire: 285/70R19.5, Triangle brand
Braking system: WABCO emergency valve, dual-line braking system, 12 double brake chambers
Operation: 1 set manual valve & 1 set remote control
Landing gear: 2 units, the front is JOST brand,the rear one is hydraulic landing gear
Electrical system: 24V LED light
Accessories: 1 set tyre carrier, 2 sets tool box
