Different Parameters, Different Price. Price Reference Only.

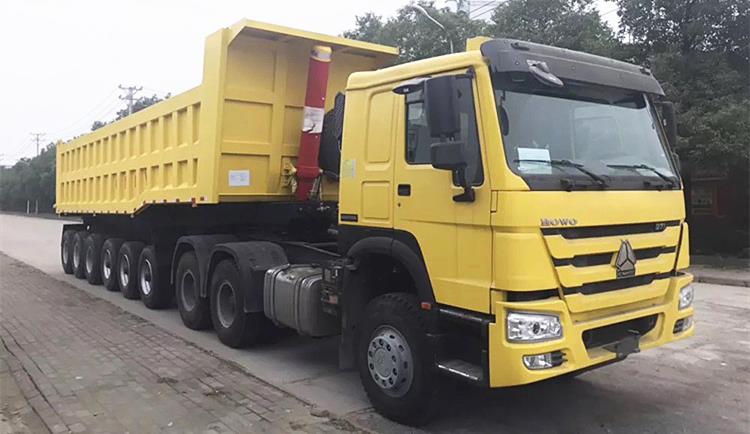

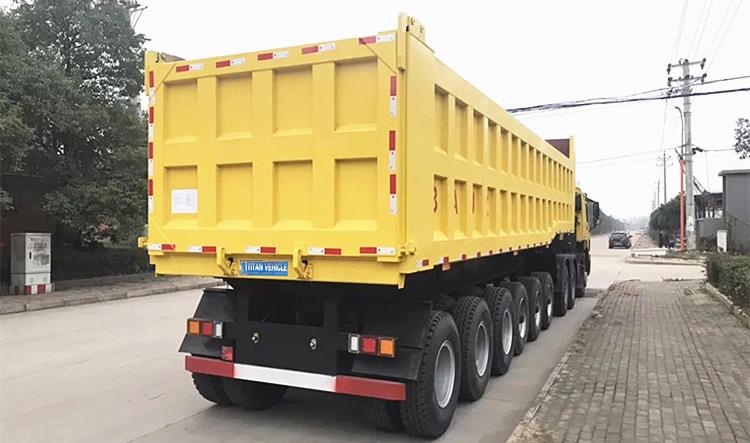

TITAN 6 Axle Dump Truck Trailer can be customized from 15 tons to 80 tons, 80 tons to 100 tons of different tonnage according to the different cargoes.

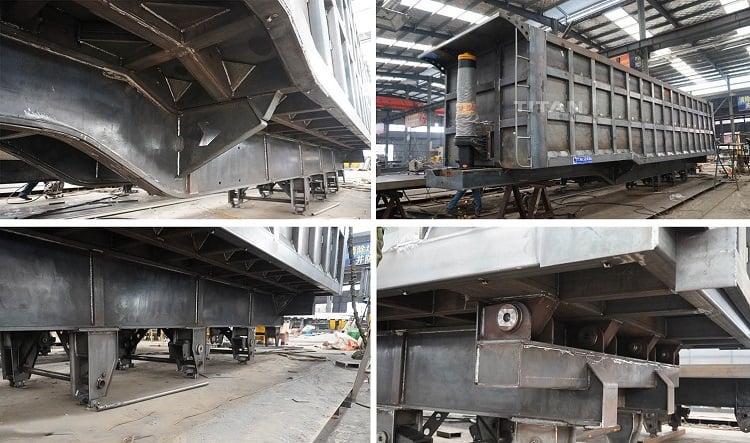

There is a balance beam at the front and rear of the 6 Axle Dump Truck Trailer main beam, which can better support the beam and is not easy to deform. 6 Axle Dump Truck Trailer with 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
The 6 Axle Dump Truck Trailer can be customized from 15 tons to 80 tons, 80 tons to 100 tons of different tonnage according to the different cargoes.
Dimension: 11000mmx2500mm x4000mm
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 30m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
