40 ft side lift container transport trailer is reasonably matched with the combination of a remote wireless control remote control and a load-sensitive electro-hydraulic proportional multi-way valve with pressure compensation in front of the valve.
Side lift container transport trailer is a self-loading trailer, usually skeleton type, with two hydraulic lift cranes to lift the container onto. It can be operated by the driver using the controls on the side of the trailer or the remote.
Each crane has two chains attached to the corners of the container. The side lift container transport trailer is mounted on rails and can be moved to position the container in the correct position for isolation locks and weight distribution.‹Get Quotation›

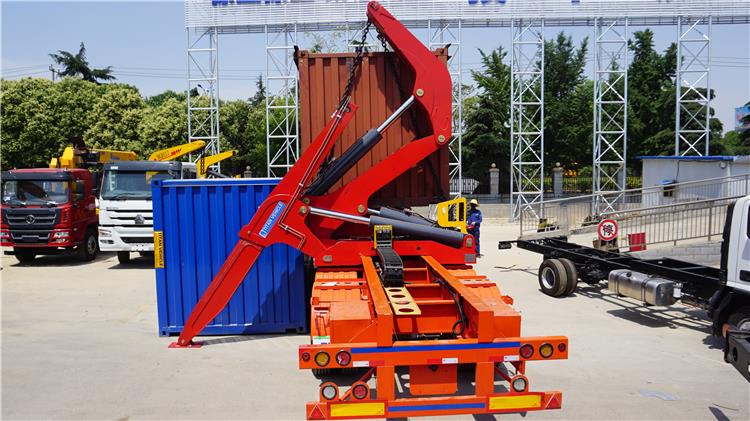

40 ft Side Lift Container Transport Trailer for Sale Manufacturer

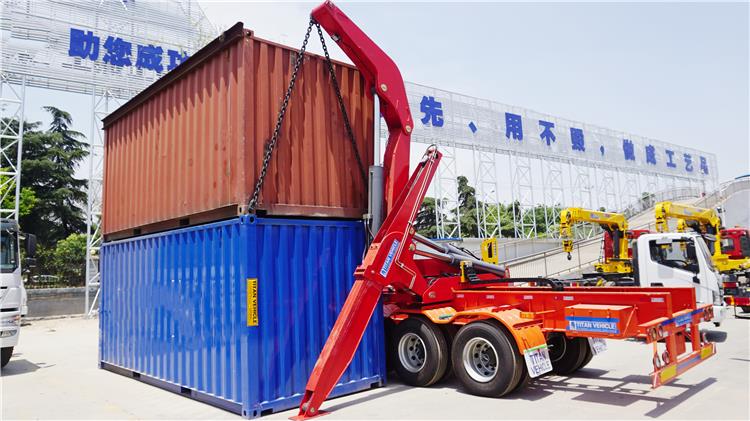

40 ft Side Lift Container Transport Trailer for Sale Manufacturer
Details of 40 ft Side Lift Container Transport Trailer
Videos of 40 ft Side Lift Container Transport Trailer
Max. lifting capacity: 37Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max.pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 14100*2500*4200mm
Suspension: Heavy-duty type mechanical spring suspension
Braking system: WABCO Emergency valve
Landing gear: JOST
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Kingpin: 3.5-inch bolted type
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
Comfortable operation
Centralized remote control operation handle, humanized design, high control accuracy, easy operation.
High-end configuration
Adopt a well-known brand who diesel fully-controlled electronic injection diesel engine, high power, low fuel consumption, low noise. Internationally renowned brand transmission, front axle, middle and rear axle, hydraulic electrical components, reliable and durable
Stable and reliable
The average trouble-free working time of the vehicle is long, and the working performance is stable and reliable. Strong dynamic performance, light weight, optimized design, strong bearing capacity, safe and reliable, and high-speed logistics transportation
Safety protection
Intelligent anti-tipping protection system for the whole machine; equipped with safety locking device. Equipped with ABS leading international brake system, heavy load long distance downhill double insurance.

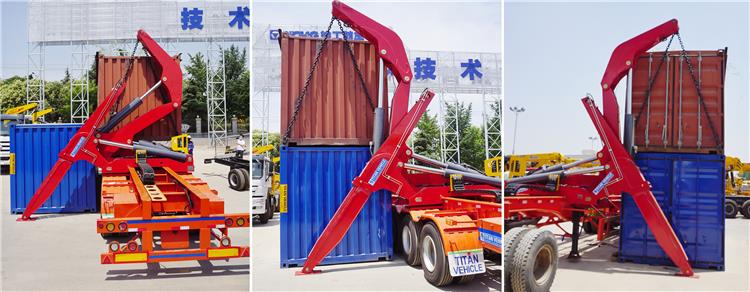

Other Side Lift Container Transport Trailer
Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.
