Different Parameters, Different Price. Price Reference Only.
4 Axle Rear Dump Semi Trailer could bear the bad road conditions, the 4 Axle Rear Dump Semi Trailer could be used for nearly 10 years.
The sides are welding molding which increasing the loading capacity. The 4 Axle Rear Dump Semi Trailer could be used for nearly 10 years.
The 4 Axle Rear Dump Semi Trailer could bear the bad road conditions. We reinforce the sides with high tensile strengthening rip and the channel steel reinforced enclosure shape design.

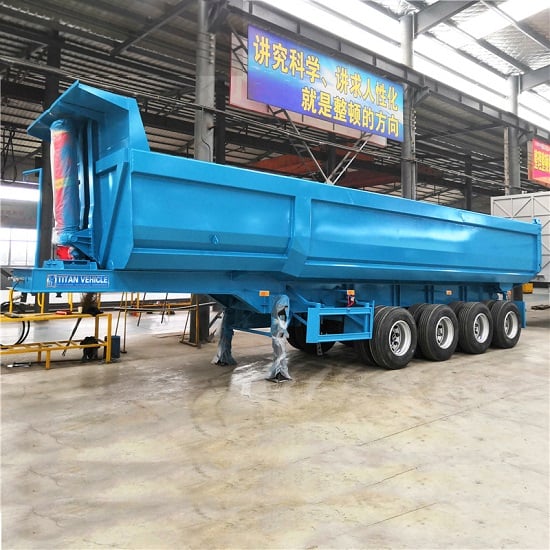

China 4 Axle Rear Dump Semi Trailer for Sale in Chile
50 ton Dump Semi Trailer for Sale
Dimension: 9300mmx2500mm x3700mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 30m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
