Different Parameters, Different Price. Price Reference Only.

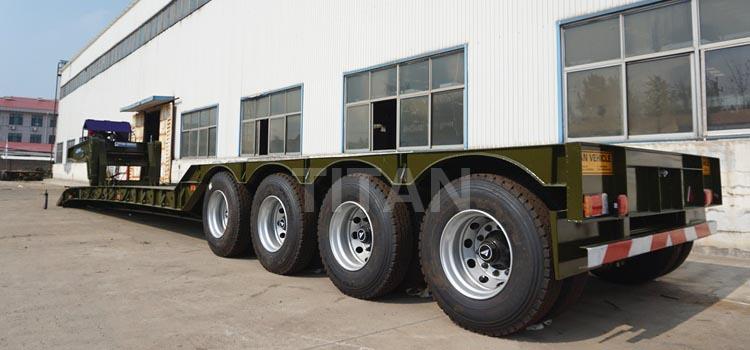

TITAN is a detachable gooseneck trailer transport manufacturer that provides machinery for our agricultural, excavating, mining, and contractor clients.
A detachable trailer is a kind of semi-trailer with two drops in deck height: one right after the gooseneck and one right before the wheels. This allows the deck to be extremely low compared with other trailers. Lowboy trailers are used to haul heavy equipment such as bulldozers, industrial equipment etc.

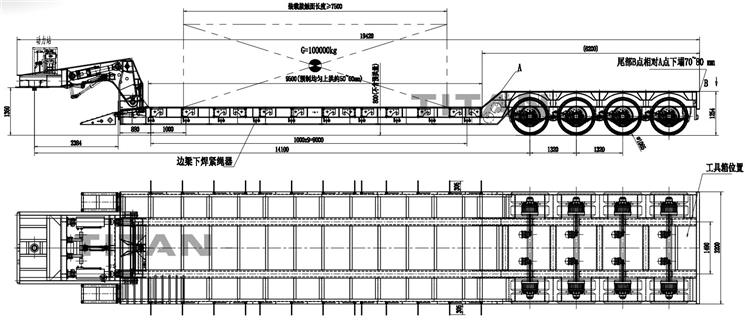

Dimension: 16500mm*3000mm*2500mm
Loading capacity(T): 50-150T
Axle: 4 axle; 13T/16T, FUWA / BPW / TITAN Brand
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate

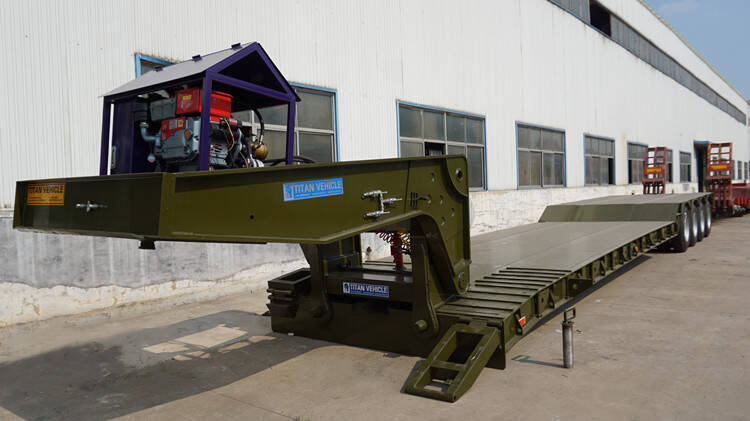

Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

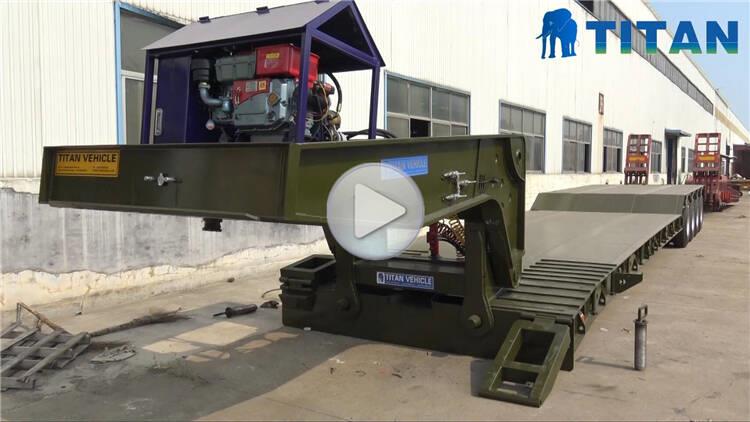

Through the video, you can know different types of 4 axle detachable trailer , 100ton detachable gooseneck trailer , detacahble trailer for sale, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
