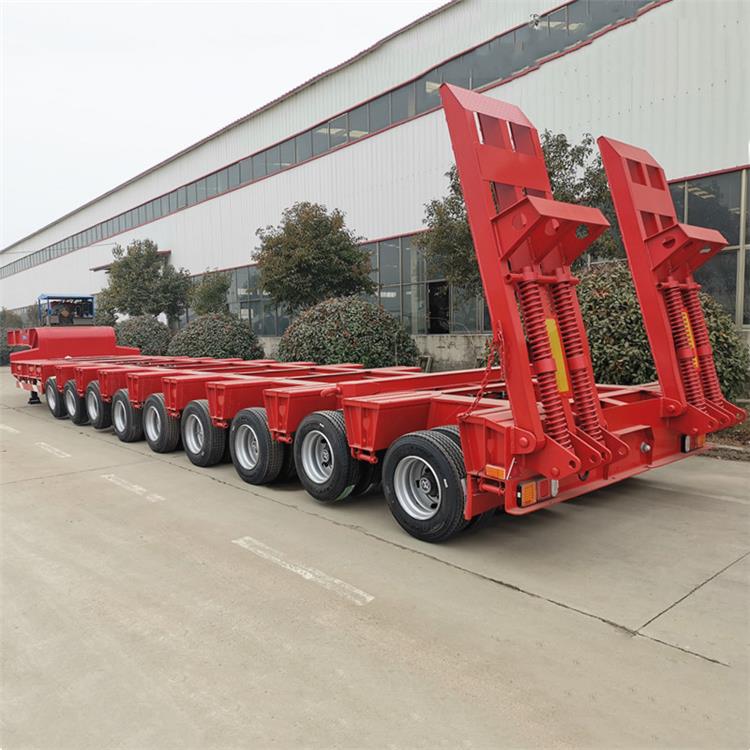

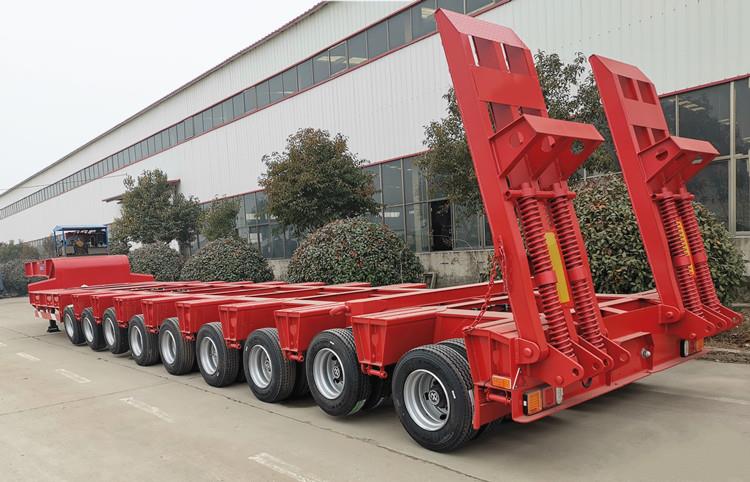

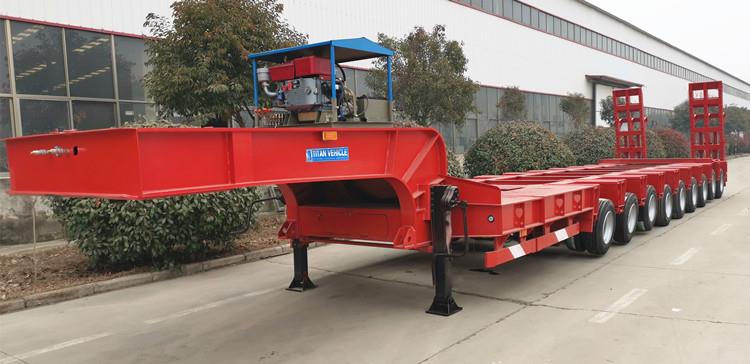

9 Axle Semi Low Loader Trailer

Product description:

9 axle semi low loader trailer use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.

The main beam of TITAN 9 axle low bed truck trailer is made of Q460C high strength structural steel. Q460C steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times that of the trailer made of Q345 steel.

9 Axle Semi Low Loader Trailer for Sale in Dominica

9 Axle Semi Low Loader Trailer for Sale in Dominica

Specification:

Overall dimension: 15800mm * 3000mm *3400mm

Loading capacity(T): 100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

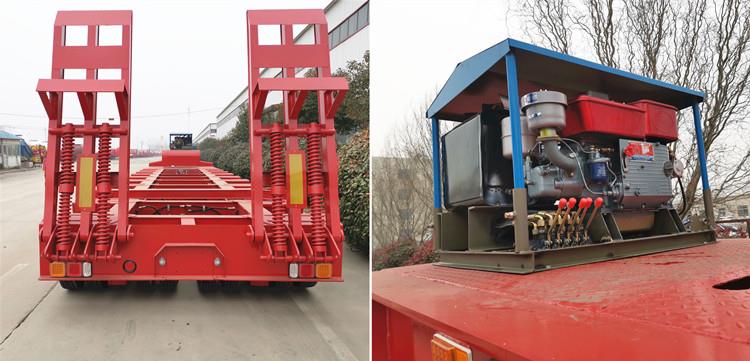

Ramp: hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantage:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.
