For transporting extremly heavy and long windmill turbine blade - Extendable Telescopic Blade Trailer from TITAN is the ideal solution, with single to triple extendable decks and a loading length of up to 56 meters.
TITAN Extendable Telescopic Blade Trailer adapts perfectly to haul 45 meters to 80 meters long windmill turbine blade transportation and long bulky goods.TITAN Extendable Telescopic Blade Trailer are noted for their highly robust frames and outstanding stability of the extension beam,the high standard of the workmanship and welding process ensures easy adjustment of the extension beams.
TITAN Extendable Telescopic Blade Trailer can be adjusted to fit any size or band of Turbine Blade.

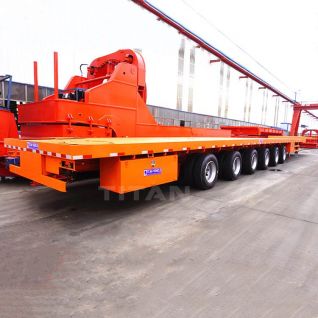

TITAN Extendable Telescopic Blade Trailer

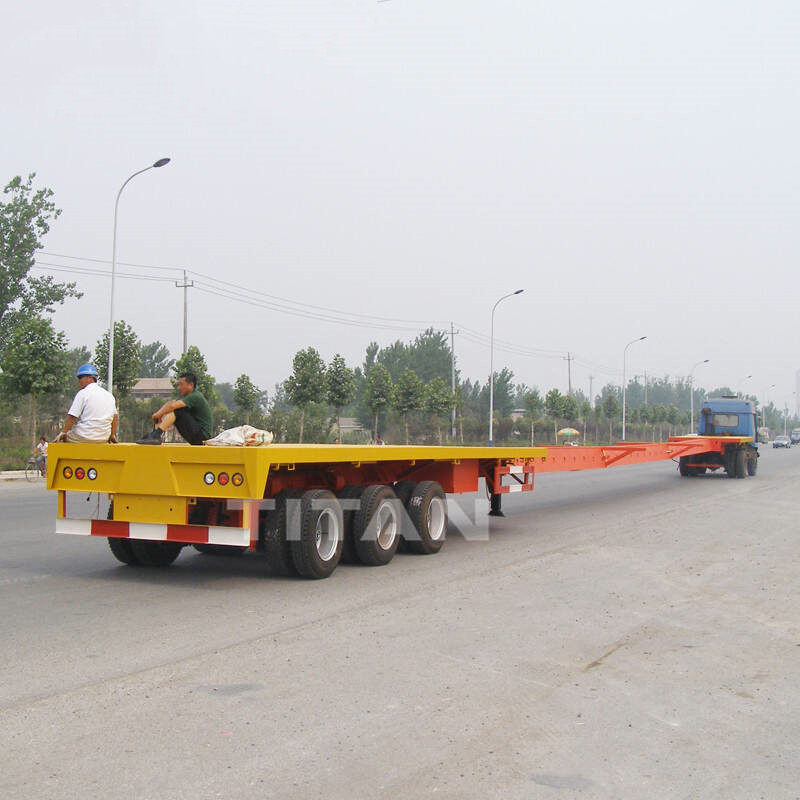

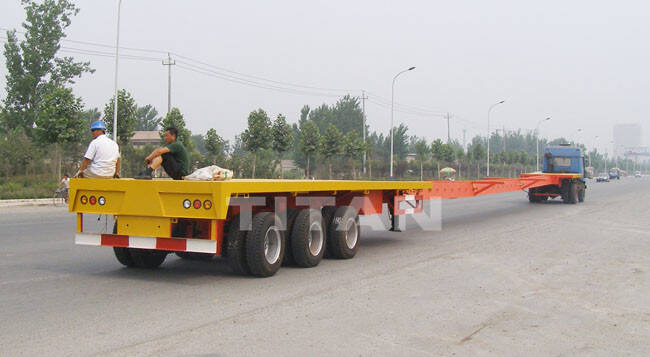

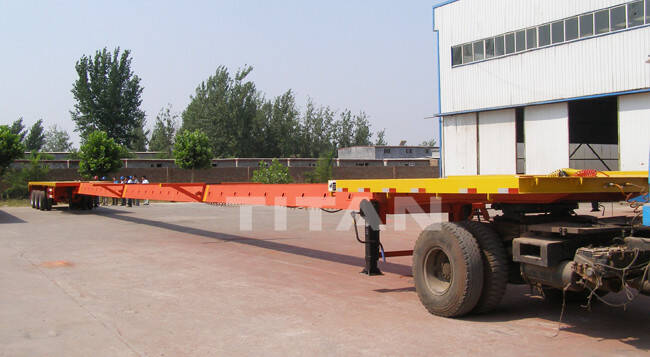

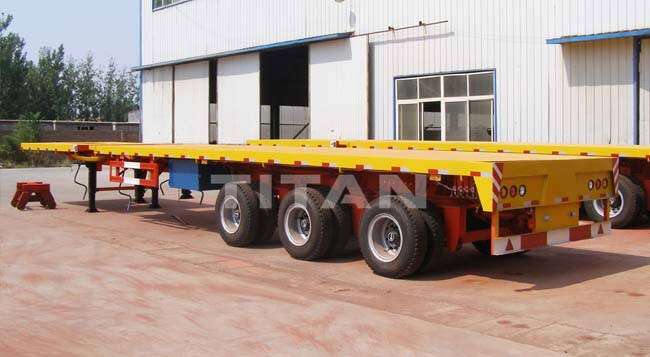

42m Telescopic Blade Trailer
1.Trailer's length from 16 meters extend to 47 meters
2.Transport the 45 meters to 65 meters Windmill Turbine Blade.
3.Loading capacity is up to 60 ton
4.Steerable axles, all wheels steering.
5.Highly robust frames and outstanding stability of extension beam.
6.Mechanical spring suspension, air suspension or hydraulic suspension is an option
7.Manual valve operation and wireless remote control.
Brand: TITAN wind blade trailer
Dimension: 16, 500mmX3000mmX1550mm
Total length: 42 ,000mm after extension
Loading capacity: 60 Ton
Platform thickness: 3 mm
Hydraulic power station: Diesel engine
Axle: 4 units steering axle
Suspension: Mechanical spring suspension.
Tyre: 16 units, Triangle brand
Braking system: WABCO emergency valve
King pin: 3.5 inch high tensile steel bolted type
Landing gear: JOST C200
