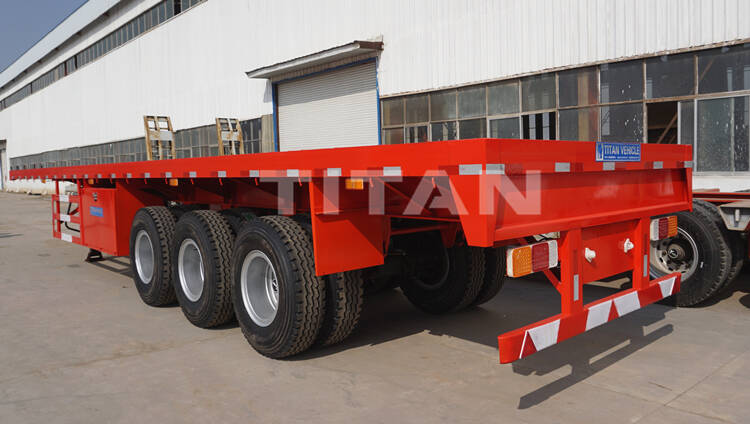

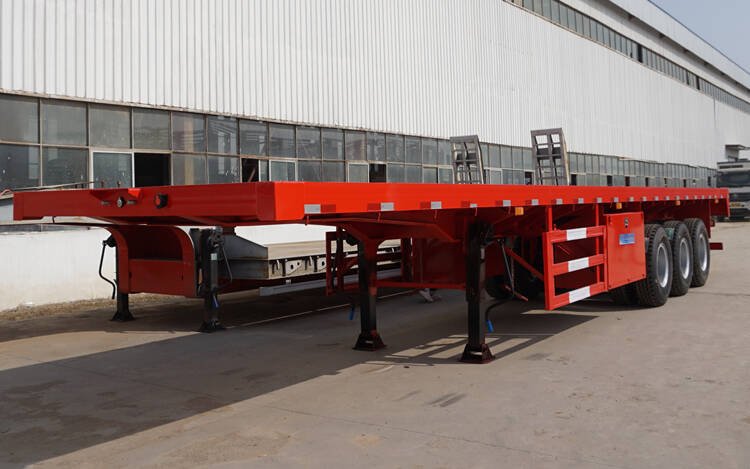

3 Axle Flatbed Trailer for Sale
3 Axle Flatbed Trailer for Sale

3 Axle Flatbed Trailer for Sale

9800 USD

Different Parameters, Different Price. Price Reference Only.



3 axles 40ft flatbed trailer is the most popular model. TITAN can also offer the 20ft/45ft/48ft/53ft, 2/3/4 axles, the capacity from 60-100 tons.

SKU: 40ft Flatbed Trailer for Sale
GTIN: 06975766110239
MPN: TITAN9403024
Brand: TITAN

Product Description:

TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.



Specification:

Tare Weight: About 7.1T

Dimension(mm): 12450x2490x1575

Loading capacity(ton): ≤45T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 13 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Advantage:

1. TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

2. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.

3. Durable mechanical widened spring suspension, make sure the stable and safety.

4. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

5. Hight Quality container locks, make sure the stable and safety of the loads.



Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.



Tri flatbed semi trailer details display video

flatbed semi trailer



Please click "TITAN Flatbed Trailer" to get detailed video!
