20Ft Container Chassis Trailer will be sent to Uganda on Nov 19th.

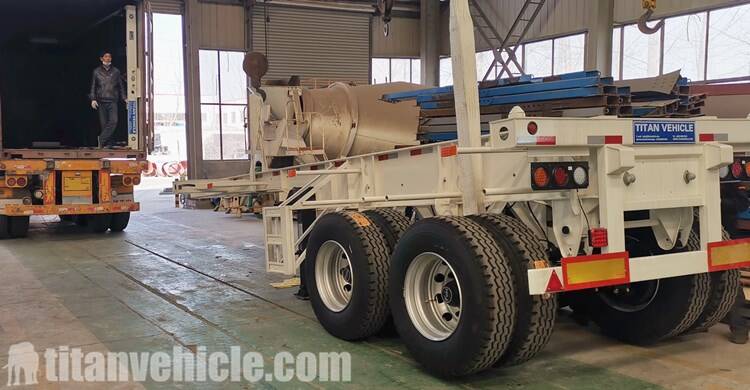

Trailers for Sale in Uganda
Ugandan customers are already our old customers. This is the second time we have cooperated with TITAN. He bought a flatbed semi trailer like last time. In addition, also ordered a 20ft container Chassis Trailer to transport 20ft containers.
Container flatbed semi trailer, is the most popular model. TITAN Container flatbed trailer is designed for transporting 20ft and 40ft containers and other cargo.
The size of the container trailer loading area is determined according to the standard container size. A twist lock device for fixing the container is provided at positions corresponding to the four corners of the bottom of the container.

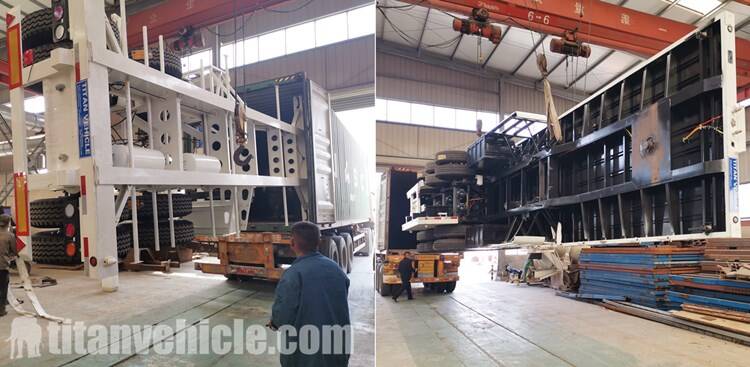

20Ft Container Chassis Trailer for Sale
TITAN flatbed trailer is a kind of trailer whose design is suitably made to carry bulk cargo and containers between shipping facilities and terminals. By simple definition, this is a long flat platform of either 20ft, 40ft, 48ft or 53ft length. Flatbed for sale is usually used to transport 20ft or 40ft containers, they are mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.
The terminal chassis trailer is an economically feasible and practical trailer to use. This is an invention that offers a truck chassis for loading and offloading high weight containers without much effort. This trailer is adjustable to meet your desired maneuverability conditions for loading and offloading. Adjustments to axle spacing can also be made based on your needs.
It has a simple structure. It comprises a simple truck chassis but of rugged construction.

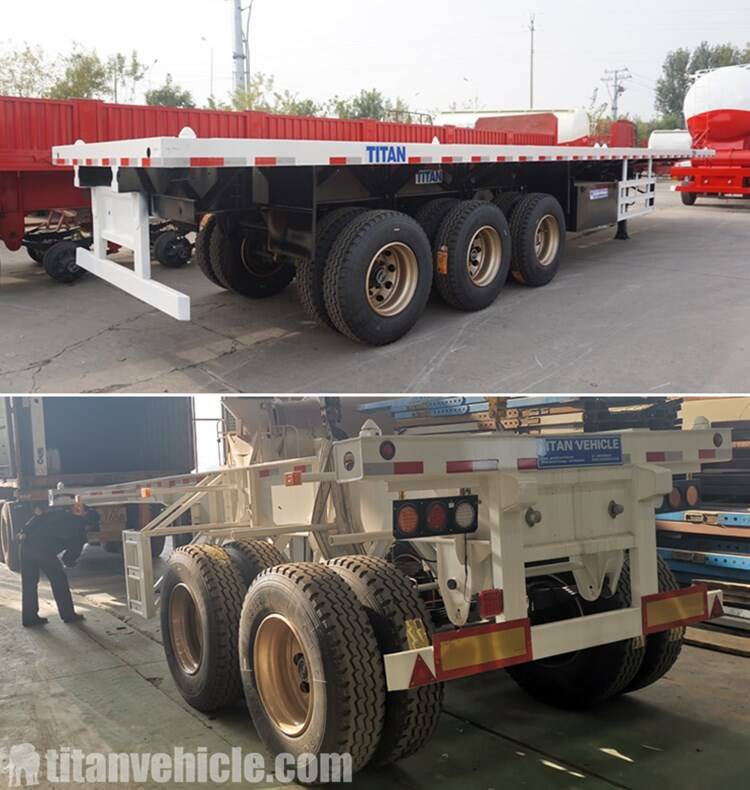

20/40Ft Flatbed Trailer Manufacturer Price
Container Chassis Trailer
This is the most commonly used and the most frequently ordered model by customers. The frame is usually made of steel. It can be used to transport containers of various lengths: 20ft, 40ft or 45ft. The function of a 20/40ft flatbed trailer is made possible through its structure’s design and manufacture. Basically, it is transport equipment mainly of a steel construction defining its frame. It also comprises a lighting system, brakes and tires.
It has clearly marked positions and twelve sets of container locks are installed to facilitate the fixing of containers of different sizes and ensure their safety at their destination.
We have professional technicians to operate. In addition, if through the RORO transport, a layer of wax will be sprayed on the semi-trailer to prevent seawater erosion, and then a layer of rain cloth will be wrapped to prevent moisture so that it is foolproof.
It is carefully designed to desired heights and weight capacity to safely load and transport cargoes from one location to another. Use platform trailers to transfer cargo at the shipper’s warehouse. Unloaded to the consignee’s warehouse, when changing trailer or boat on the way, there is no need to take the goods out of the box and change them.

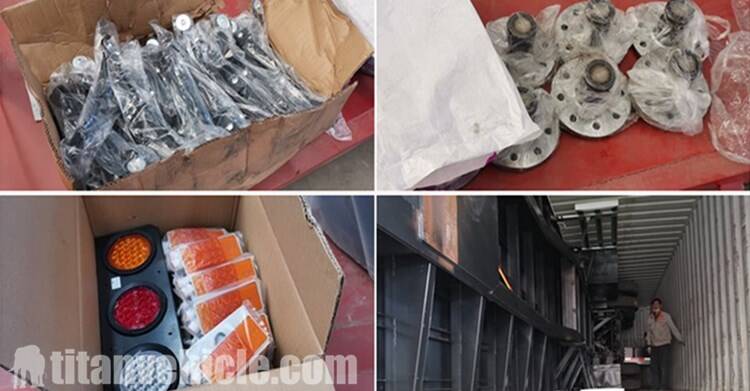

Details Parts of Flatbed Trailer and Container Chassis Trailer
1. The work platform is the main load-bearing part, which is composed of the main beam, side beam, cross beam, bottom floor, suspension and so on. The main beam should pay attention to whether the thickness is an international standard. The international standard for the main beam of a skeleton trailer is 14/8/16 mm. The steel plate in the middle of the beam is made of Q345B manganese steel, the thickness is 8mm.
2. The 3 axle flatbed trailers use a vacuum tire with better heat dissipation performance, the model is 12R22.5. TITAN flatbed container trailer uses custom made tires in a tire factory, wear-resistant tires. On Chinese highways, Titan tires can reach more than 300,000 kilometers.
3. TITAN flatbed trailers common mechanical suspension adopts special high strength steel. 6mm thickness. The center pin diameter is 70mm. Stronger than suspensions in many factories. Also adopt a famous German-made WABCO braking valve, to make sure safety on the road.
4. We adopt famous brand parts for flatbed trailer, it saves costs & ensures long-time service. Like JOST landing gear, Fuwa axle.

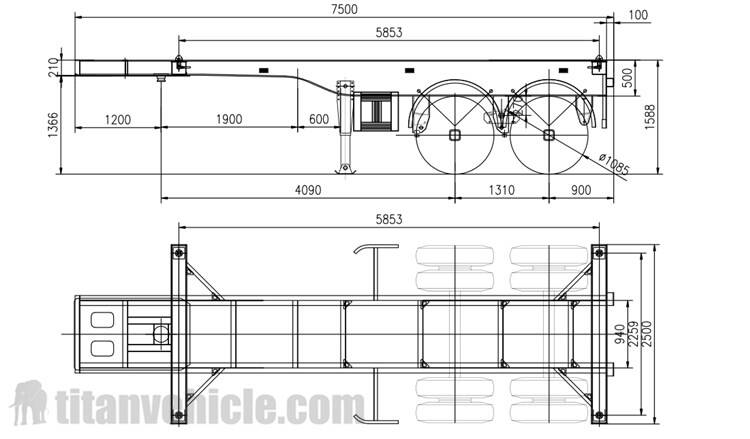

Drawing of 20Ft Container Chassis Trailer for Sale
About package of 3 axle container trailers for sale, we have many ways to transport.And we will recommend the best suitable and save way fo you. All semi trailer will undergo rigorous testing before delivery to ensure quality.
You can download video, you can learn about different types of container chassis trailers, like 2/3/4 axle skeleton chassis for sale, 20/40ft skeleton container, interlink container trailer, terminal trailer, and the process, testing, packaging and customer feedback, etc.
This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
