50CBM Fuel Tanker Trailer will be sent to Botswana on Nov 10th

50CBM Fuel Tanker Trailer will be sent to Botswana on Nov 10th.

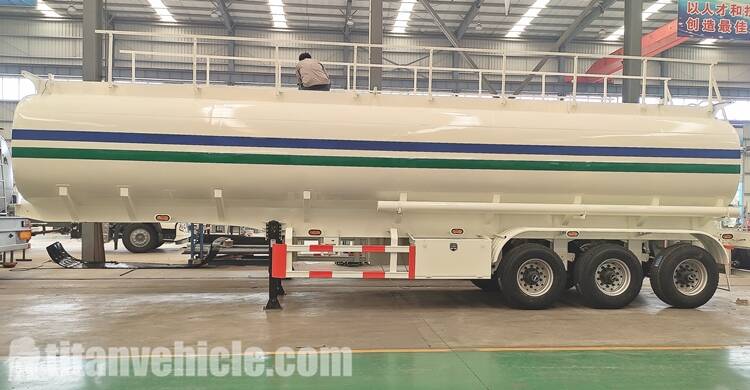

Trailers for Sale in BotswanaTrailers for Sale in Botswana

Accompanied by the company's leaders in 2018, when the customer arrived at the TITAN inspection site, the batch of Oil Tanker trailers had already been connected to the tractor and arranged in two rows neatly, like mighty soldiers waiting for the inspection by the chief. The customer checked every part of the 3 axle fuel tanker trailer in detail, and the technical and sales staff also answered the questions raised by the customer one by one. When returning to the conference room after the inspection, the customer expressed his satisfaction with this batch of vehicles and expressed his gratitude to TITAN for its efforts and help.

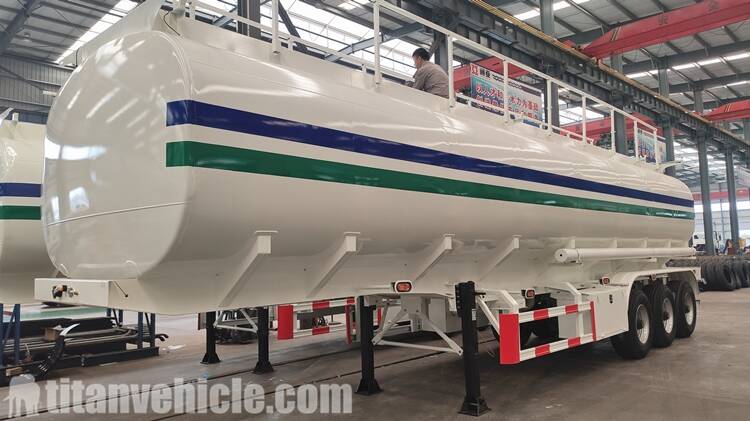

50CBM Fuel Tankr Trailer for Sale in Botswana50CBM Fuel Tankr Trailer for Sale in Botswana

In the past two years, this has been the fifth batch of fuel tanker trailer procurement project initiated by this customer, and all fuel trailer tanks are procured in TITAN. Through the actual use of the first four batches of vehicles, customers are convinced of the superior quality of TITAN, which is the main reason why they did not hesitate to choose TITAN brand tankers again.



How many litres is a fuel tanker?

The tank semi-trailer is a semi-trailer with a tank structure. Mainly used to transport liquids, bulk materials, and bulk cement.

1. The tank truck series are divided into oil tank trucks, concrete mixer trucks, powdered materials and bulk cement trucks, water supply trucks, etc.

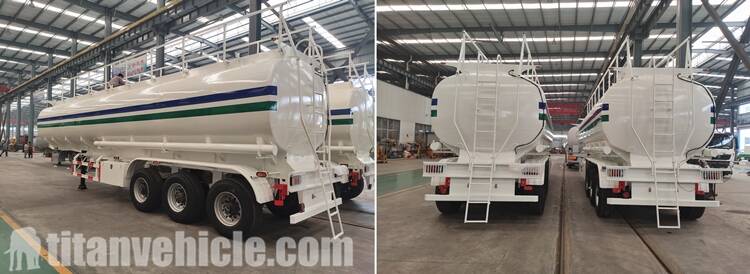

Package of Fuel Tanker Trailer PricePackage of 50000 Litres Fuel Tanker Trailer Price

2. The tank body is manufactured by three-dimensional design and advanced processing technology. The chassis adopts special chassis from various manufacturers with advanced technology and reliable performance. Cargo truck with canned containers.

Advantages: high efficiency of loading, unloading and transportation. Guarantee the quality of goods. Conducive to transportation safety. Reduce labor intensity and improve loading and unloading conditions. Save packaging materials and labor. Reduce transportation costs. Tank cars: shipping fuel, lubricating oil, acids, alkalis, water, food and beverages, etc.

Oil tanker trailer is mainly used for large-scale oil transportation, and the tonnage is generally around 40-60 cubic meters. The 50CBM Fuel tanker trailer square tank material is made of a Q235A steel plate. The tank body has built-in multi-channel reinforced anti-wave baffle plates, and the lower end of the baffle plate has through holes to reduce the impact of the oil in the tank and improve the strength of the tank during driving.

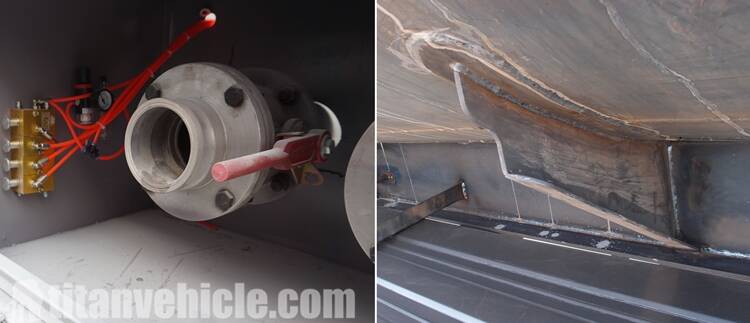

Details of Fuel Tanker TruckDetails of 3 Axle Fuel Tanker Truck

The mouth of the combined tank is located on the top of the tank body. There is a small self-locking cover on the big cover, and a breathing valve is installed on the upper side of the big cover to ensure the same atmospheric pressure inside and outside the tank; it has an electrostatic grounding wire.

Install the oil pump system, take the power from the gearbox side through the power take-off, which can be self-priming and self-draining; with two oil pumping pipes, equipped with quick couplings, and the suction range is 6 meters.



Failure and repair methods:

1. Braking failure and slow braking Reasons: the gap between the brake shoe friction lining and the brake drum is too large, adjusting the gap, the brake shoe friction lining is excessively worn, replacing the brake shoe lining, the air chamber is damaged, and the air chamber air system is replaced Leakage of the dynamic system causes the pressure to drop. Check the leaking location, repair or replace the parts, and the emergency relay valve is not working properly.

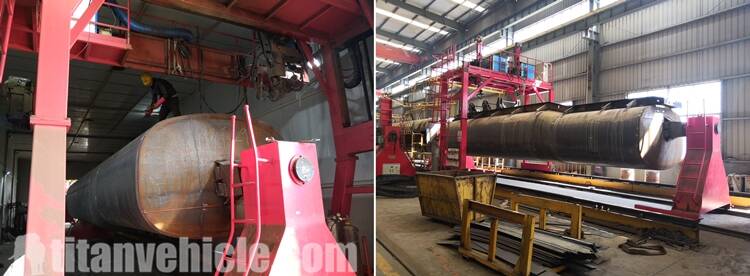

Production Process of 50CBM Oil Tanker TrailerProduction Process of 50CBM Oil Tanker Trailer

2. The brake cannot be released, and the brake release is slow. Reason: The system pressure is too low, increase the air brake system pressure to the specified value. The brake return spring is damaged, the spring pipe is blocked, and the emergency relay valve or quick release is checked and cleared. The valve is not working properly. Check and replace the brake cylinder and the stroke of the push rod is incorrect.

3. Reasons for fuel tanker of tire swing: loose wheel nuts, tightening of axle bearings, sintering and damage, replacement of bearings, bending of axles, correction and replacement of axle bearings, too large clearances, correct tightening of bearing lock nuts, replacement of bearing grease on time, replacement of axle bearings; excessive tires Partial wear, the verticality of the axis of the axle and the centerline of the frame is serious. Adjust the distance between the two ends of the axle and the traction pin as much as possible.

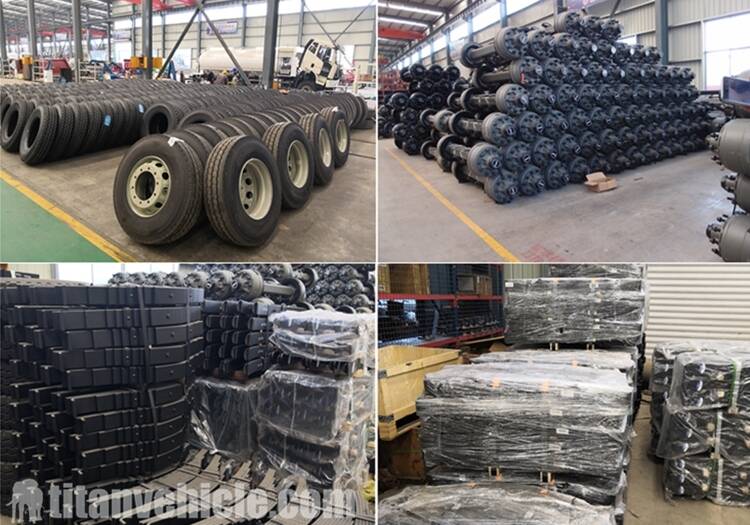

Factory show of TITAN Semi TrailerFactory show of TITAN Semi Trailer

4. The rocking resistance of the rocker is too large. Reasons: poor lubrication, replenishing lubricating grease, bearing damage, replacement of bearing gear eccentricity or serious wear, decomposition and inspection of replacement parts screw thread damage, replace the screw.



You can download video, you can learn about different types of fuel tanker semi trailers (like 3 axle fuel tanker, 4 axle storage tanker trailer, stainless steel tanker trailer, acid tanker trailer, fuel tanker with flatbed trailer, fuel tank Full trailer). And the process, testing, packaging and customer feedback, etc.

Fuel Tanker Trailers Video

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
