4 Axle 100T Lowboy Trailer with Dolly has been completed and testing will be arranged.

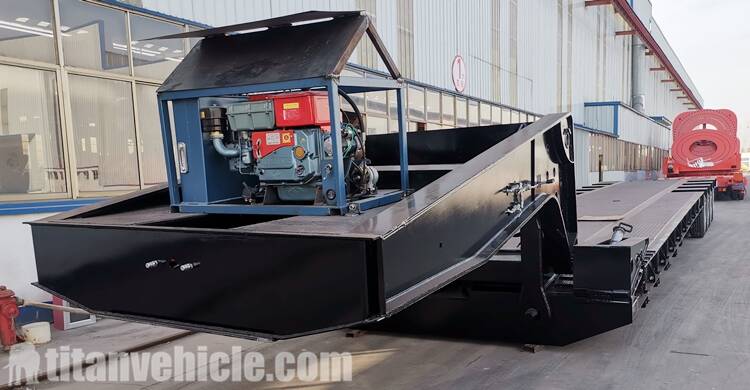

Trailer Truck Price

TITAN has a lot of customers in Chile. Masvaya saw TITAN's extendable flatbed trailer in the local area, and was very satisfied with the quality and experience of the TITAN semi trailer, and learned that other people's extendable flatbed trailer was customized in TITAN. Immediately get the contact information of TITAN with local customers and ask us to customize lowboy semi trailer for him.

100T Removable gooseneck trailer trucks are also very extensive, suitable for the transportation of various mechanical equipment, large objects, road construction equipment, large tanks, power station equipment and various steel materials. The frame is stepped, and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.

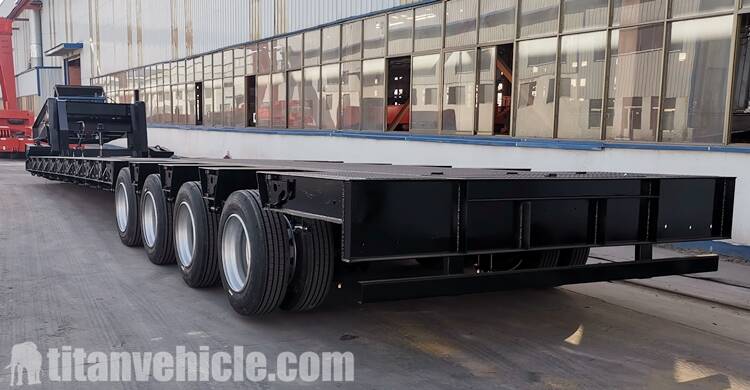

4 Axle 100T Removable Gooseneck Lowboy Semi Trailer for Sale In Chile

The main plane of the frame and cargo platform is low, which ensures the stability of transportation, and is suitable for carrying all kinds of large-scale construction machinery and steel materials.

How to operate detachable gooseneck lowboy trailer?

There are the major force-transmitting regions of RGN lowboy trailer. One of them is the main coupling responsible for transmitting the fundamental longitudinal towing forces between the trailer and the gooseneck. This coupling works as a single point in a force couple to keep the trailer frame and the gooseneck in their desired relative positions.

This essentially is a bearing surface of the trailer frame at a point spaced backwardly. Hydraulic pressure is then supplied to the bottom part of the ram cylinders to facilitate the retraction of the rods. This creates a hydraulic lock between the trailer bed and the gooseneck. A lock pin is then used to make a positive link between the yoke pocket and the T-bar yoke.

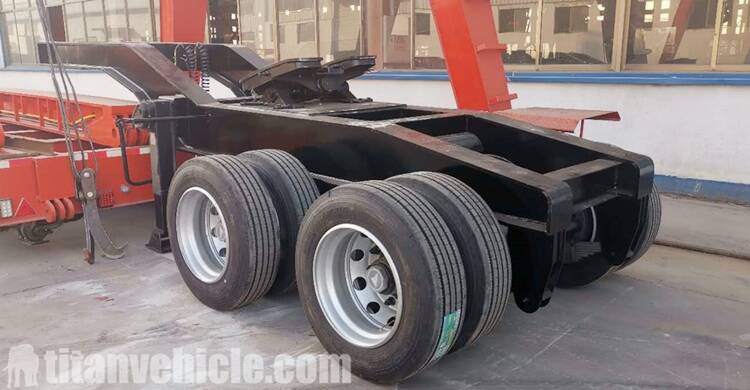

Detachable Gooseneck Lowboy Trailer with Dolly Price

The safety hooks are engaged safely with their respective pins and the lock pins are used to keep the two key coupling hooks in a tight inter-fitting connection to prevent any accidental release.

During coupling and uncoupling, the trailer assembly is led to a lowered position. During uncoupling, the safety pin handle gets puled and locked open to let the safety pin detach the T-bar yoke free from the yoke pocket.

The control lever for the hydraulic ram feature on the other hand is maneuvered to provide hydraulic pressure fluid inside the dram in order to lift the thrust blocks somewhat clear off their sitting positions on the main beam. After achieving this, the lock finger gets retracted and the crank handle then is swung in an upward manner to anchor the safety hooks and the thrust blocks upwardly.

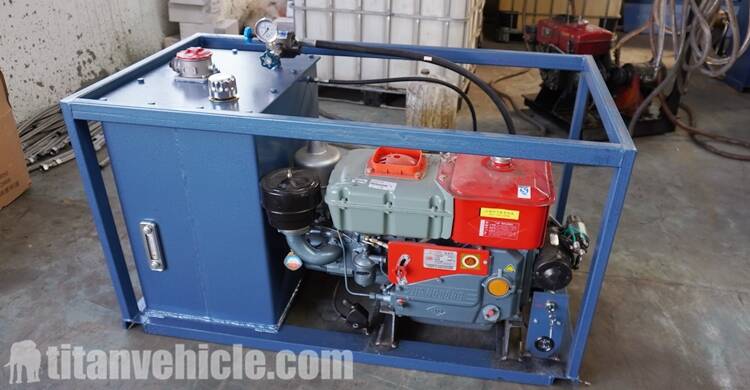

Gooseneck Trailer Manufacturer

Next, the hydraulic ram feature gets extended further to facilitate a further gooseneck rotation with respect to the Gooseneck lowboy trailer bed. This is done to facilitate the withdrawing of the two lock pins that are engaged with the hooks.

The pins get swung in an upward manner through the use of the crank handle. On achieving this, the hydraulic pressure in the ram gets reversed hence allowing the pressure to go down in the cylinders’ bottom chamber. This action slowly lowers the gooseneck and the trailer bed to the ground.

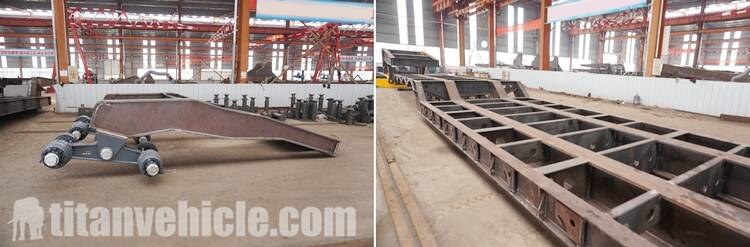

Details of 4 Axle Lowboy Semi Trailer for sale

It adopts a balanced live rigid suspension, with a mass balance block installed between the front and rear leaf springs, which can make the deflection of the front and rear leaf springs change by the same amount, and use the rear axle to balance the force.

The 4 axle removable gooseneck trailer adopts advanced computer-aided design software, and the optimized design is flexible and diverse. The load-bearing surface of the frame is designed according to user requirements to meet the transportation of various special goods.

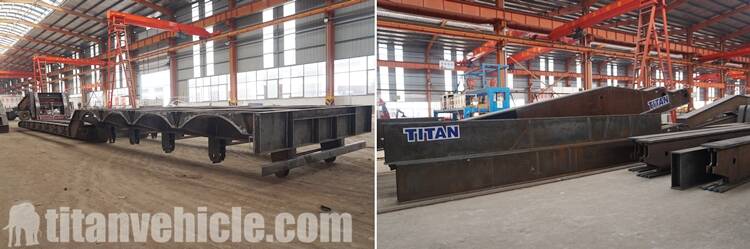

TITAN Production Process of 100T Removable Gooseneck Trailer

You can download video, you can learn about different types of lowboy semi-trailers(like 3 axle detachable gooseneck lowboy trailers, 4 axle lowboy trailer, 3 line 6 axle heavy duty lowboy trailer, folding gooseneck trailer). And the process, testing, packaging and customer feedback, etc.

Lowboy Semi Trailers Video

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
