The Mozambique customer has received the extendable flatbed trailer and the customer is ready to put it into use.

Extendable Flatbed Semi Trailer For Sale

In fact, the flatbed semi trailer that the customer bought before was of very poor quality and was deceived by some unscrupulous merchants, so the customer was very cautious. Of course, choosing TITAN is your best choice. We have more than 10 years of experience in the semi-trailer industry. Customers cover more than 50 countries in Africa and South America.

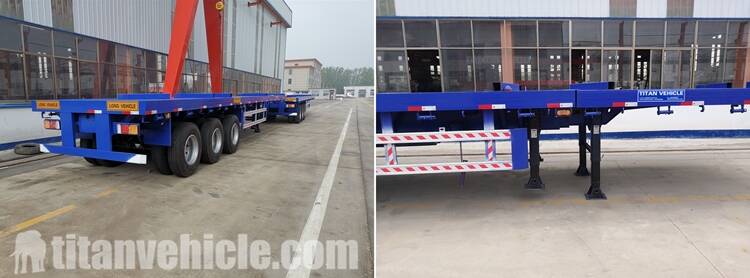

Flatbed semi trailer In Mozambique

Extendable flatbed trailer is commonly used to transport very long cargo, like tanks and windmill blades and bridge sections among other similar-like cargo.

To take these loads, the trailer is extended lengthwise. When it is not carrying any load, it needs to be adjusted back to a short length. Its application and use should, however, be based on the stipulated local laws and driving safety.

The transportation industry has different types of vehicles and platforms that are used to meet different demands and needs. One such means of transportation used is the extendable trailer. Just like is the case with other means of transportation, this type of trailer is suited for certain applications. The extension on the trailer is done efficiently take loads that may be of different lengths as the job will demand.

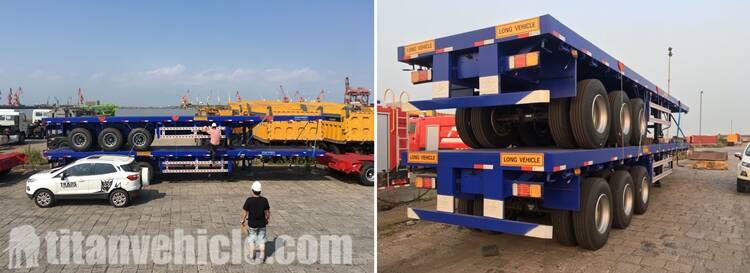

Extendable Flatbed Trailer For Sale

TITAN produces 24m extendable flatbed trailer for the transport of long rails, pipes, containers or other bulk cargos.

Extension length: from 12 meters extend to 24 meters and also custom made extension length to meet different requirements of transport. And the trailer can carry 40ft or 20ft container after it is a closed state.

Here is a detailed description of the key components of the extendable trailer:

1. The Braking System

To further enhance swift operations with the extendable trailer, a braking system is provided. This includes a service brake, a dual-line automobile brake system and a parking brake.

An emergency relay valve, air reservoir, double-brake chamber and a number of specifications for the components connecting to the pipeline.The supply and control lines are set separately.

2. Trailer Frame

The extendable trailer frame construction features the main beam, half plates to the left side and the right side and a transverse device.The half plates to the left and right side are linked to the main beam by means of the transverse device.The hydraulic gooseneck is attached to the frame head and a hydraulic ladder fitted at the rear section.

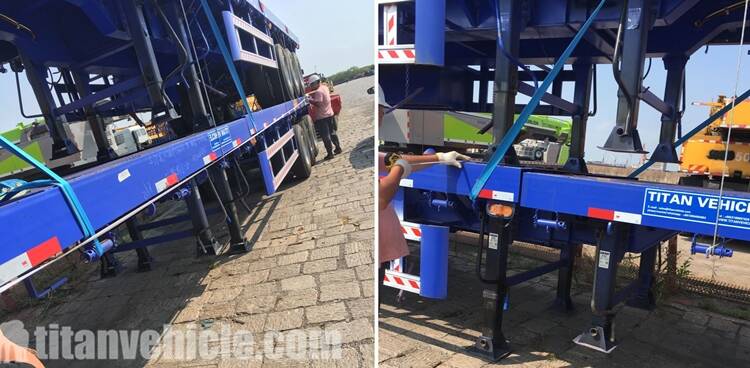

Details Of 3 Axle Flatbed Semi Trailer

3. The Electrical System

A 24V single wire system forms the electrical system of the extendable trailer. In totality, the electrical system includes lights, connectors and wires among other components.The electrical connection attached to the tractor chosen is the national standard 24N type electrical connector.

The external signalling and lighting components are usually provided with brake lights, rear position lights and position lights among other as deemed useful for use in this application.

4. The Gooseneck Feature

The assembly and connection at the gooseneck point is usually made to the tractor saddle via the turntable, the wedge and the traction pin.The trailer’s gooseneck feature is a hydraulic part that is usually adjusted through a telescopic expansion of the hydraulic cylinder.

As the tractor rotates, the steering cylinder gets pushed and transmitted to the steering bridge of the trailer via the hydraulic circuit.The steering mechanism towing the extendable trailer is usually attached in the gooseneck.

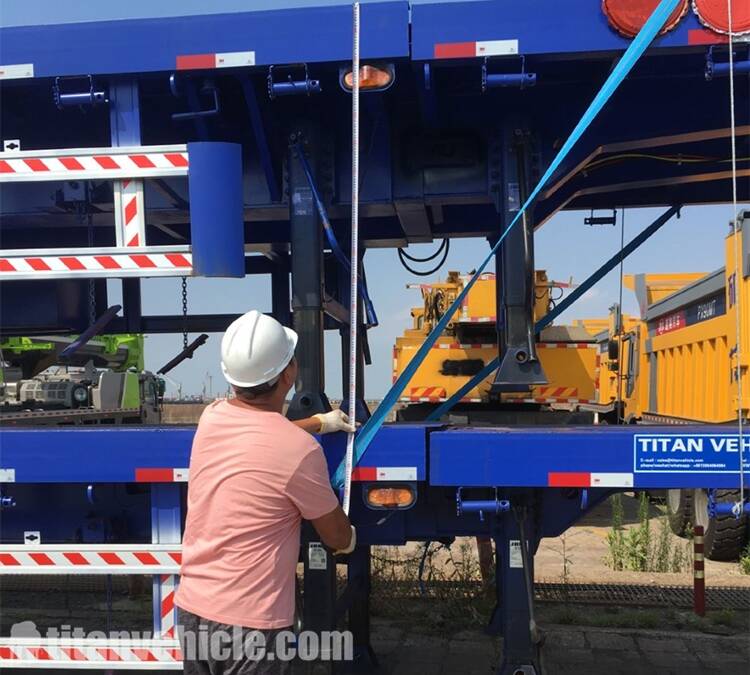

Package of Extendable Flatbed Semi Trailer

5. The Hydraulic System

The basic components of the hydraulic system are hydraulic valve blocks, joints and pipes. The entire system comes with a hydraulic source by means of a power unit. There is also a safety valve installed in the circuit.

The trailer has a hydraulic system that comprises control circuits like the suspension lifting, gooseneck lifting, synchronous steering, lateral adjustment and in lifting the ladder.

You can download video, you can learn about different types of flatbed semi trailer,such as 2 axle flatbed semi trailer,3 axle container semi trailer,4 axle 40ft flatbed semi trailer,etc. As well as the process, testing, packaging and customer feedback, etc.

Flatbed Semi Trailers Video

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
