3 axle box semi trailer is specially customized for customers. Box semi trailers are mainly used in the bulk cargo transportation.
The rated capacity varies widely from 30Tons to 100Tons, and the dimension different from 7000mm to 18000mm, we can manufacture it according to your needs.
The side wall height and side or back door numbers and opening ways have several options for your better usage.
3 axle 60 tons enclosed dry van box semi trailer ready for shipment
Box semi trailer has the function of availability and high protection of cargo. The fully enclosed trailer body is made of high-strength steel plates welded together to form an ample loading space. Therefore, freight is protected from any external influence.
So this box trailer is one of the most commonly seen on the roads.
Enclosed van trailers are used for moving non-perishable food and beverages, household goods, clothing items, plastic, and building products.
Unique to the dry van trailer is the side guardrail that protects both sides of the van box trailer during living. Rear guard design comes with special devices that facilitate the push of the trailer from behind. The trailer box opens on both sides to allow easy and fast unloading.
According to the material of the box body, the materials of the box semi trailer are mainly steel, aluminum, aluminum-plastic composite panels, etc. According to different types of transported goods and cost factors, different box panel materials can be selected. At present, the mainstream material of the box semi trailer is mostly carbon steel and aluminum alloy. Aluminum box semi trailer mainly pursues light weight, high strength, convenient loading and unloading, which represents the development direction of dry van trailer in the world.
TITAN 3 axle 40ft dry van box trailer for sale
Features of box semi trailer:
1. The body of the vehicle is made of high stength full thickness Steel, titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength.
2. With a beam-through structure and a closed side design for the upper part, which can effectively reduce the lateral risk when the vehicle is traveling at high speed, reduce energy consumption, and has a strong bearing capacity. The advantages of high safety factor, reasonable design, sturdiness and durability.
3. According to the frame structure, it can be divided into straight beam type and gooseneck type. The straight beam semi-trailer has large loading space and high center of gravity; the gooseneck semi-trailer has a low center of gravity and good vehicle stability.
4. Widely used in different areas, mainly used in long-haul freight transport. 3 axle dry van trailer are the most frequently used equipment type due to their versatility to hold a variety of different products.
5. Various types of box tops are available to meet various customer needs, including closed, side open, open, and open type with tarpaulin rod.
6. X-shaped brace allows the box to load heavier goods while still keeping a lightweight design.
Some customers want to use this kind of container semi trailer or box semi trailer to load goods, but they are not clear about the difference. Which one should be used and whether it is suitable for pulling their own goods?

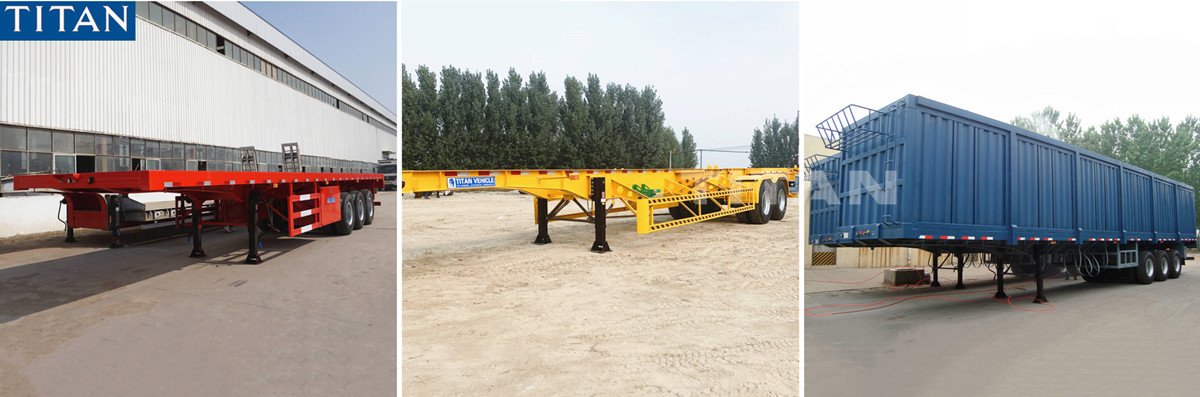

The difference between container semi trailer or dry van trailer:
1. Container semi trailer
Specially used for the transportation of various containers. It can be used repeatedly for a long time and has sufficient strength. Using containers to transfer goods can be directly loaded in the consignor’s warehouse and transported to the consignee’s warehouse for unloading. There is no need to take the goods out of the container and reload when changing vehicles or ships midway.
It can be quickly loaded and unloaded, and it can be directly and conveniently changed from one type of transportation to another.
It is convenient for the filling and unloading of goods to meet the individual needs of customers. According to customer needs, tooling guarantee, stable quality and reliable performance. The container semi trailer is a special transport trailer for carrying containers.
2. Dry van box semi trailer
The box semi trailer adopts a closed side guard rail design, which effectively reduces the lateral risk and energy consumption when the vehicle is driving at high speed. The rear guard is designed with reasonable cart attachments to facilitate operation. It is modified or manufactured separately on the chassis of a van, and can be divided into a passenger compartment and a compartment according to the difference of its compartments. The passenger compartment and the cab are generally integral structures, such as ambulances, accommodation cars, environmental inspection cars, dining cars, TV broadcast cars, etc.
The van and the cab are generally separated structures, such as van-type LTL trucks, refrigerated and insulated vehicles. The specific structure of the carriage varies according to its function. In addition to the functions of general compartments, the compartments of refrigerated and heat-preserving vehicles also have the functions of heat insulation and heat preservation; the roof of the movable-top compartment can be vertically lifted to change the compartment volume to meet the loading and unloading requirements of different goods; wing-open compartments , To facilitate the loading and unloading of goods and improve the efficiency of loading and unloading.
Box semi trailer series products are used for the transportation of construction materials such as household appliances, textile goods, coal, sand, etc., as well as map goods. The vehicle body is made of high-strength cold-rolled corrugated steel plate, no framework structure, centered everywhere, multiple choices, large loading space, reasonable distribution in the box body, X-shaped bracing, with the characteristics of multiple pull, heavy load, and light weight.
